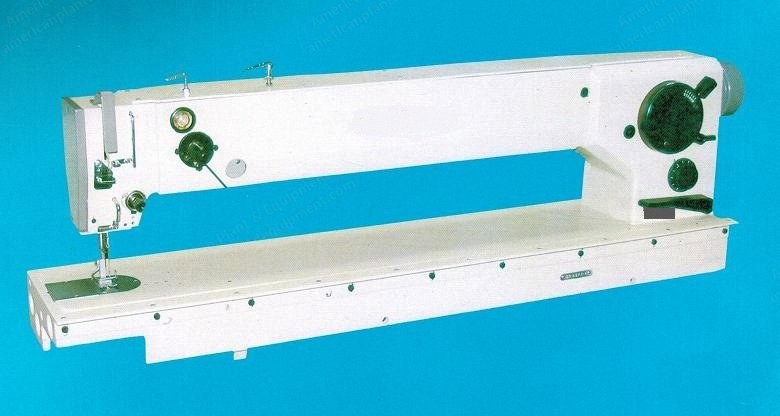

NovaStar, BW123, Long Arm Single Needle Zigzag Lockstitch Sewing Machine, 760mm Working Space, 1400 SPM (New)

NovaStar, BW123, Long Arm Single Needle Zigzag Lockstitch Sewing Machine, 760mm Working Space, 1400 SPM

Description

  1. Overview

    1. Maker: not specified

    2. Model: BW123

  2. Features

    1. Needle axis is perpendicular to the throat plate in the same position

    2. Sewing area can be 760 mm, suitable for large objects

    3. Adapted for stitching with both cotton and synthetic threads

    4. Extra large capacity hook can increase sewing efficiency

    5. Semi-automatic lubricating system

    6. Different sewing pattern cams are available for fancy stitch

  3. Technical Specifications

    1. Max. sewing speed: 1400 spm

    2. Max. stitch length: 5 mm

    3. Max. stitch thickness: 8 mm

    4. Max. stitch width: 10 mm

    5. Clearance under presser foot (by pedal): 12 mm

    6. Clearance under presser foot (by hand): 7 mm

    7. Needle bar stroke: 36 mm

    8. Needle (standard): DPX35

    9. Thread take up lever: 82 mm

    10. Lubrication: semi-automatic

    11. Working space: 760 mm x 115 mm
