Schlafhorst, Autocoro 360, 2004-2005, Complete Open End Spinning Plant, 864 Spindles, Trutzschler Blow Line & Cards

Schlafhorst, Autocoro 360, 2004-2005, Complete Open End Spinning Plant, 864 Spindles, Trutzschler Blow Line & Cards

Description

  1. Overview
    1. Autocoro 360 total 864 spindles
    2. Year 2004-2005
  2. Cotton Blow Line
    1. One complete cotton blow line from Trutzschler (Germany), year 2004
    2. Automatic bale opener Blendomat BO-A2300
    3. Multi function separator SP-MF
    4. Pre-cleaner CL-P
    5. Foreign part separator Securomat SP-F
    6. Cleaner Cleanomat CL-C3
    7. Integrated mixer MX-16
    8. Installation control LC-I1
    9. Fan BR-FD425, BR-F425, BR-FD500
    10. With standard accessories
  3. High Production Cards
    1. Six high production cards from Trutzschler (Germany), year 2004
    2. Type TC-03
    3. Automatic can changer CC 1000
    4. Automatic can coiler CC 1000
    5. With standard accessories
    6. Two high production cards from Trutzschler (Germany), year 2005
    7. Type TC-03, capacity 90 kg/hr
    8. With standard accessories
  4. High Performance Draw Frames
    1. Three high performance draw frames from Trutzschler (Germany), year 2004
    2. Model TD-R
    3. Power creel TD-PC
    4. Autoleveller TD-PC
    5. With standard accessories
    6. One high performance draw frame from Trutzschler (Germany), year 2005
    7. Speed 600-1000 m
    8. With standard accessories

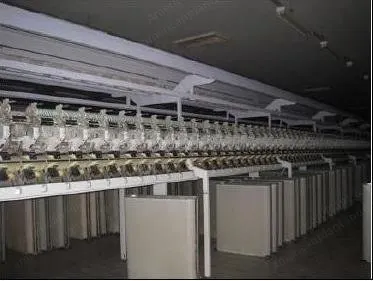

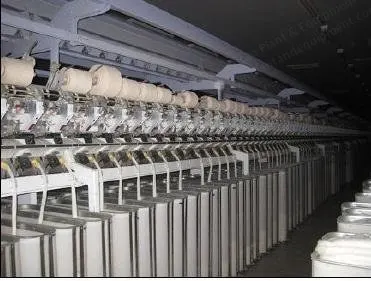

  5. Automatic Rotor Spinning Machines
    1. Two automatic rotor spinning machines from Schlafhorst (Germany), year 2005
    2. Autocoro 360
    3. Spin box Coro SE12
    4. 288 spindles each
    5. Corolab 8 yarn monitoring
    6. With standard accessories
    7. One automatic rotor spinning machine from Schlafhorst (Germany), year 2005
    8. Autocoro 360
    9. Spin box Coro SE12 (rpm 40,000 to 50,000)
    10. 288 spindles each
    11. Yarn monitoring
    12. Coromat
    13. Winding unit SRZ type
    14. Zweigle (Germany) year 2005 Aug. for ACO360/288 spindles
    15. With standard accessories

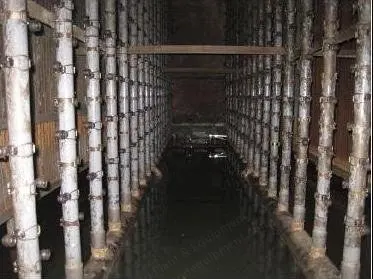

  6. Air Washer and Waste Collecting Line
    1. One complete air washer and waste collecting line from Keumsung (Korea), year 2004
    2. Complete air washer unit: spray unit 1 stage 2 bank, distributor W 7000 x H 3650 mm, eliminator W 7000 x H 3780 mm, 3 supply fan dia. 1400 x 18.5 kW, 3 fresh air louver W 1500 x H 2000 mm, 3 fresh air damper W 1500 x H 2000 mm, 3 return air damper W 1500 x H 2000 mm, 3 relief air damper W 1500 x H 2000 mm, water spray pump 2.1 m³/min x 25 mH x 22 kW, rotary water filter dia. 500 x L 1000 mm x 0.4 kW, 3 rotary air filter dia. 2000 x L 3660 mm, 3 return fan dia. 1250 mm x 11 kW
    3. Supply duct (zinc sheet / insulated): W 1800 x H 1300 mm, W 1300 x H 800 mm, W 1000 x H 550 mm
    4. Waste collecting unit: 2 pre-separator dia. 1800 mm, 2 rotary air filter dia. 2800 x L 3660 mm, collecting room (SS) W 6200 x L 6500 x H 3000 mm, 2 turbo fan 600 m³ x 200 mmAq x 45 kW, 2 auto-waste collector cap 15 kg/hr dia. 1100 x H 2600 mm x 0.75 kW, 2 dust suction fan 30 m³/min x 3.7 kW, fiber-press fan, cyclone dia. 2400 x H 3400 mm x 0.75 kW, fan 11 kW, control panel and etc.
    5. Duct for blow lines, carding, drawing, rotary air filtering, fiber pressing, material transferring

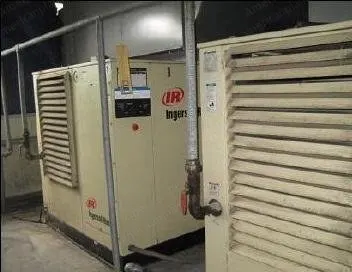

  7. Air Compressing System
    1. One complete air compressing system from Ingersoll Rand, year 2004
    2. 2 air compressors model SSR-EPE50, capacity 211 cfm, pressure 125 psig, motor 37 kW

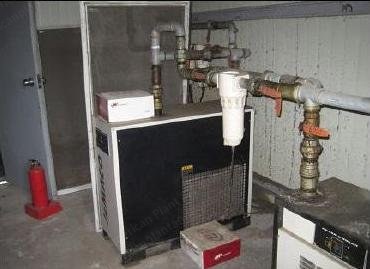

    3. Air receiver tank, after cooler, air dryer, air filter and piping
  8. Bale Presser
    1. One bale presser from Keumsung (Korea), year 2005
    2. Model KFC-100
    3. Bale size W 500 x L 1000 x H 600 mm
    4. Bale weight 90-100 kg
    5. Oil pump 18.5 kW
  9. Power Substation
    1. 22,900/380 220 V, A SS 200 A, PF, COS, LA, MOF 30/5 A
    2. TR 3 dia 950 kVA, 3 dia 30 kVA, panel and others
