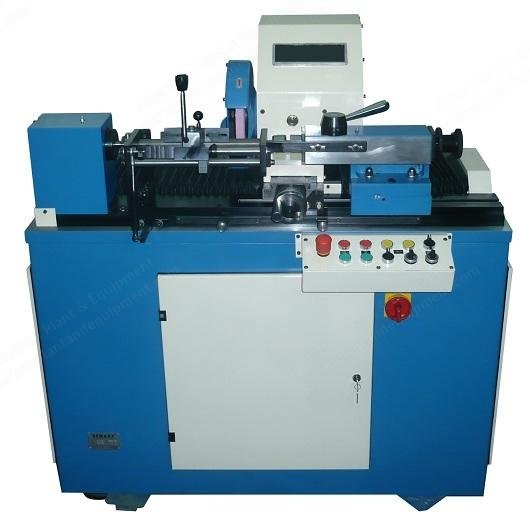

Bemaks, 510, Cot Rectifying Machine, 450mm Grinding Length, 25-120mm Grinding Diameter

Description

Overview
1. Grinding diameter: 25 mm to 120 mm
2. Grinding speed: 17.6 meters/second to 22 meters/second
3. Grinding length: 450 mm
Grinding Wheel Specifications
1. Outer diameter: 250 mm
2. Inner diameter: 90 mm
3. Thickness: 20 mm
Motors
1. Grinding apparatus motor: 0.55 kW, 980 rpm
2. Lubrication pump motor: 0.09 kW, 1450 rpm
3. Servo drive motor: 0.55 kW
4. Suction fan motor: 1.5 kW, 1450 rpm
5. Grinding wheel motor: 1.1 kW, 2800 rpm
General Dimensions
1. Length: 1200 mm
2. Width: 1300 mm
3. Depth: 800 mm
4. Weight: 820 kg

Dimensions	1200x1300x800mm
Grinding Wheel Inner Diameter	90 mm
Grinding Wheel Outer Diameter	250 mm
Grinding Wheel Thickness	20 mm
Height	800 mm
Length	1,200 mm
Weight	820 kg
Width	1,300 mm

Grinding Apparatus Motor Power	0.55 kW
Lubrication Pump Motor Power	0.09 kW
Servo Drive Motor Power	0.55 kW
Suction Fan Motor Power (kW)	1.5 kW
