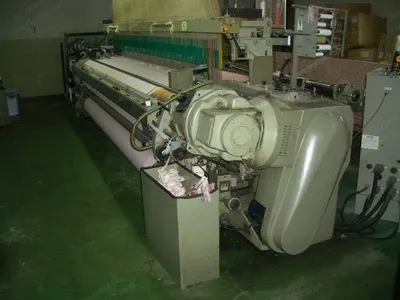

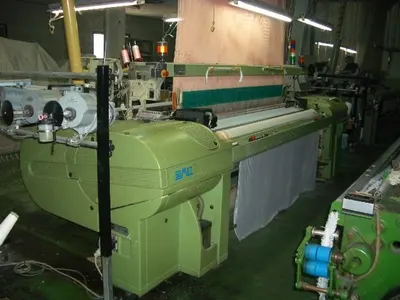

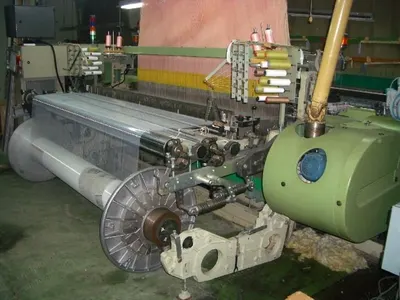

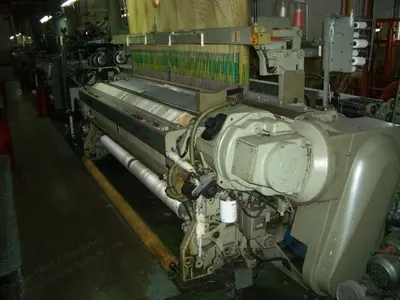

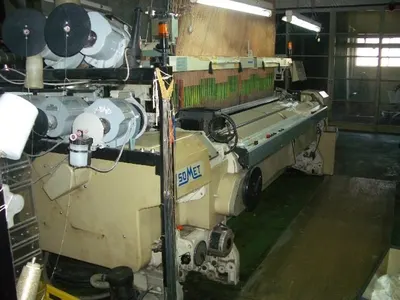

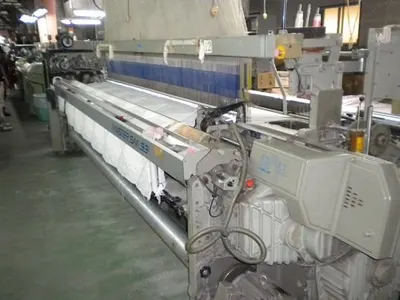

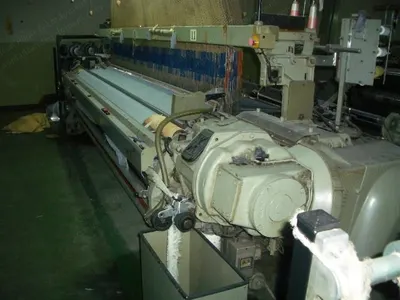

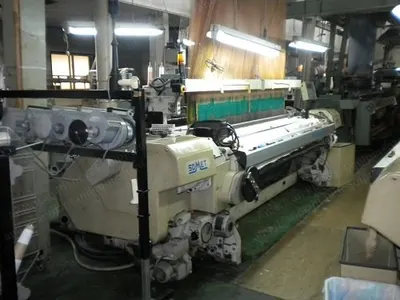

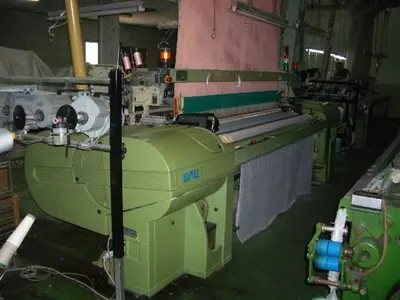

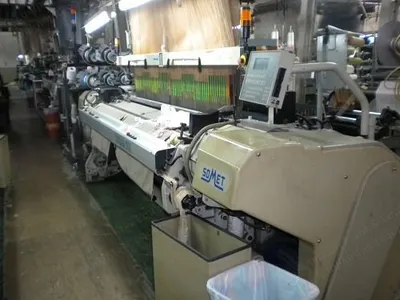

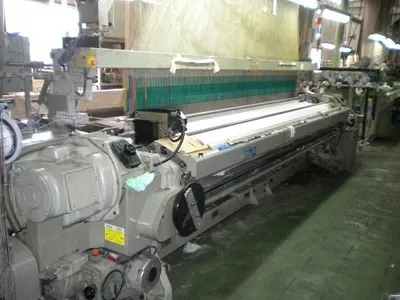

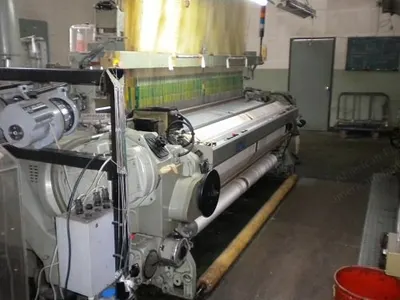

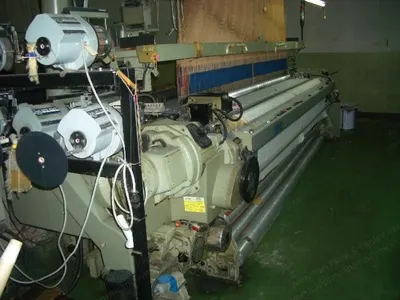

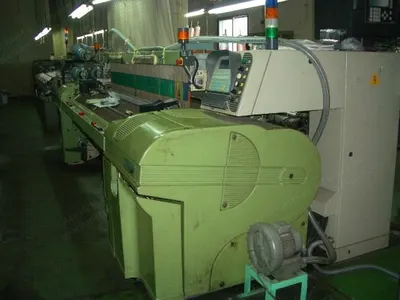

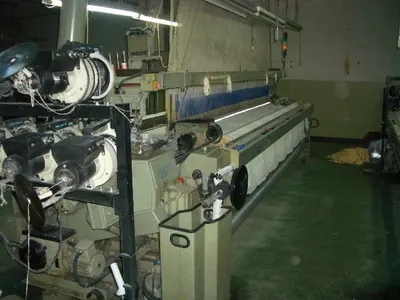

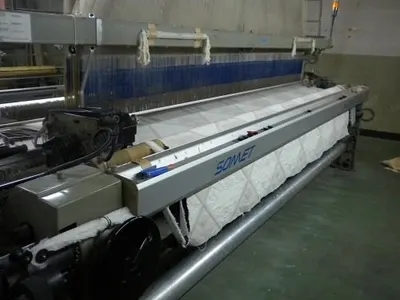

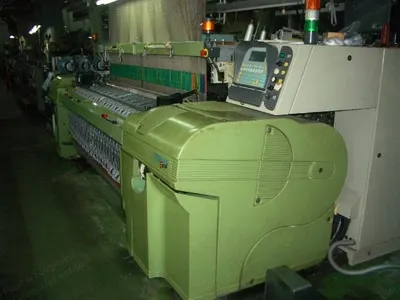

Somet, Thema-11, 1989-1993, 2300mm to 3400mm, 6/8 Colors, Staubli Jacquard

Somet, Thema-11, 1989-1993, 2300mm to 3400mm, 6/8 Colors, Staubli Jacquard

Description

  1. Overview
    1. Maker: Somet
    2. Model A: Sm-93, type 018d, working width 3400mm, year 1989, quantity 1
    3. Model B: Thema-11, working width 3400mm, year 1990, quantity 4
    4. Model C: Thema-11e, working width 2300mm, year 1993, quantity 1
    5. All machines are with 3/4 weft accumulators, type Lgl Sirio Robot, 6/8 color weft insertion
  2. Specifications For Thema-11/11e Type Weaving Machines
    1. Weaving speed: In excess of 400/500 ppm (depending on weaving conditions)
    2. Filling stop motion: Piezoelectric Eltex Anti-2 with sensitivity adjustment for up to 8-filling colors
    3. Warp stop motion: Electric Actex for 6-rows
    4. Filling selection: Electronically controlled positive filling selector for up to 8 filling colors of types of yarn; equipped with 4 x Roj Lgl Sirio Robot weft accumulators per loom
    5. Warp beams: Equipped with 1.5 pcs of 800mm fl. dia. per loom; 2300mm looms with single length, and 3400mm looms are with split beams
    6. Wind-up: On light metal cloth roll, with quick release of full cloth up to a max. dia. of 550mm
    7. Lubrication: Central system by forced oil circulation with microprocessor control of pressure and filtering

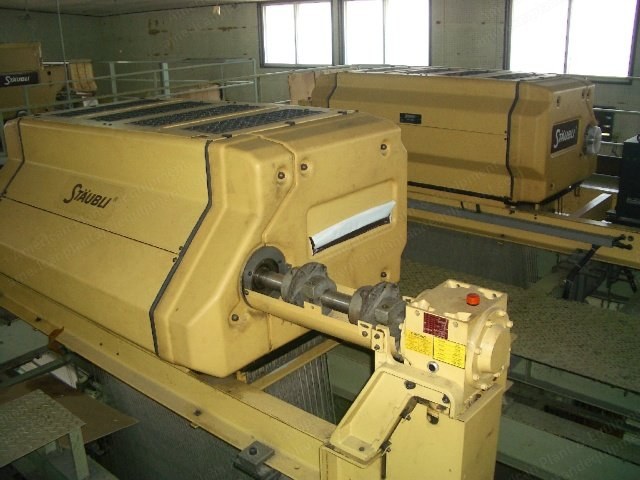

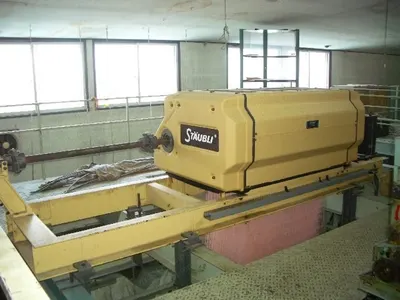

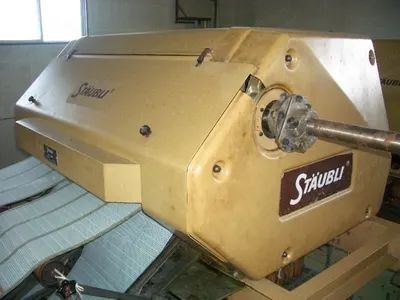

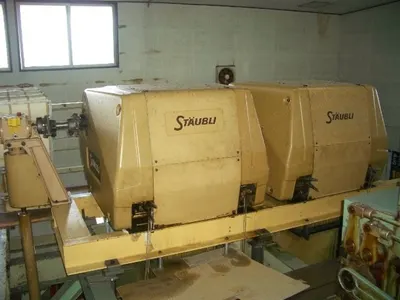

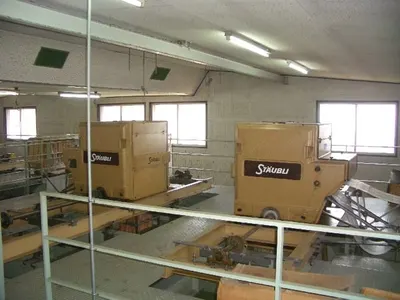

    8. Shed formation: By Staubli's mechanical and electronic jacquards
    9. Droppers: 0.2 x 11 x 156mm Zn
    10. Let-off: Electronic let-off motion
    11. Take-up: Driven by the let-off motion via a speed variator, totally enclosed in a oil bath
    12. Pick-finding: Eight pick finding modes available, selection by means of the Socos keypad, controlled by Socos microprocessor
    13. Other devices: Suction unit on right hand side
    14. Modifications: Day / night device, modified into Gfg (gripper floating guide)
  3. Electronic Monitoring And Control System

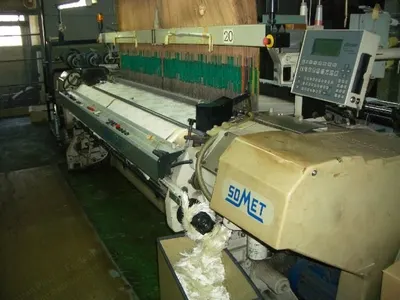

    1. Equipped with an on-board microprocessor, Socos (Somet Computing System), featuring:
    2. Auto-diagnosis of the electronic systems
    3. Statistical reports on machine performance and function
    4. Programming of the color selector, other auxiliary functions and their storage in the program files
    5. Direct control of the electronic dobby including pattern change, constant diagnosis of the operational status of the main drive and lubrication systems
    6. Programming of the pick finding mode according to style requirements
    7. Entry and storage of machine setting data for every style woven
    8. Monitoring and continuous display of pick density
    9. Automatic switchover in case of filling break between package and filling feeder, or package run out without transfer
    10. Monitoring and measurement of repeat length in the fabric
  4. Condition And Included

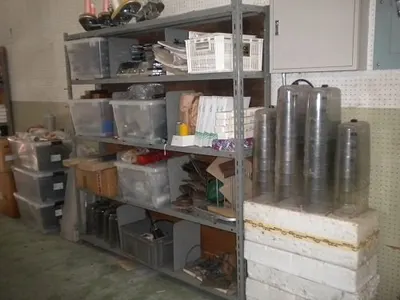

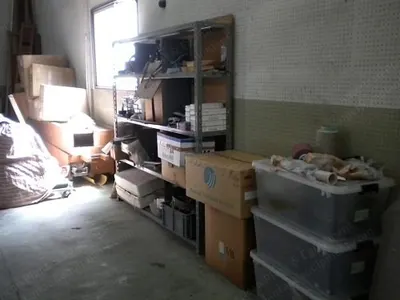

    1. Inclusive of all available remaining spare parts and accessories in the unit
    2. All machines with sufficient no. of extra beams and cloth rolls, spare parts, droppers, and other accessories, ready-to-weave
  5. Location And Power
    1. Machine voltage: 200V/60Hz/3Ph
