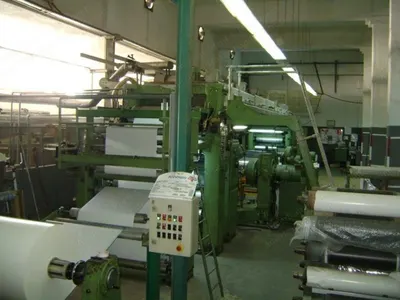

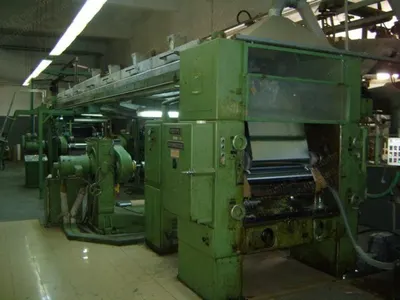

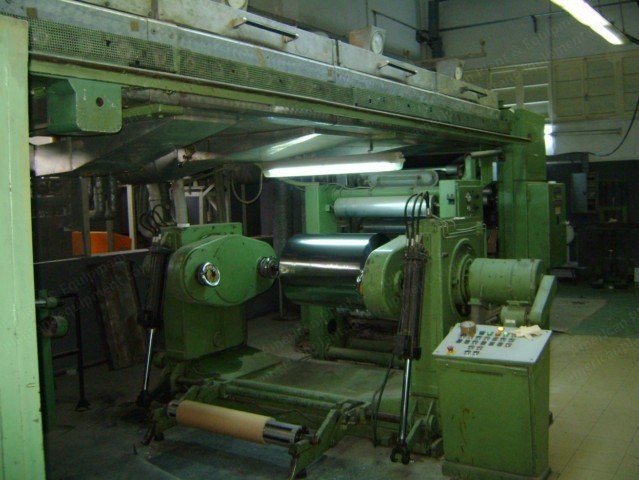

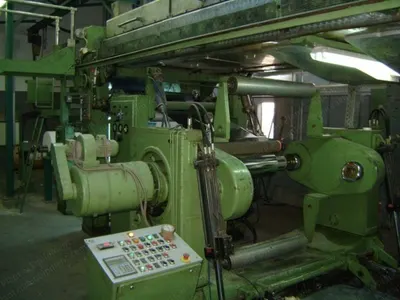

Polynorm, WB 1050, 1975, 1050mm Web Width, 10 to 200 m/min Speed, Solvent-Based

Polynorm, WB 1050, 1975, 1050mm Web Width, 10 to 200 m/min Speed, Solvent-Based

Description

  1. Overview
    1. Maker: Polynorm
    2. Model: WB 1050
    3. Year: 1975
    4. Max. web width: 1050 mm
    5. Speed: 10 to 200 m/min
  2. Material Capabilities
    1. Aluminium foil: 8 to 30 my
    2. Polyethylen foil: 15 to 150 my
    3. Polyamide: 12 to 30 my
    4. Paper: up to 100 g/m2
  3. First Unwinder
    1. Max. diameter: 1000 mm
    2. Core: 70 and 150 mm
    3. Auto. tension regulation
    4. Tension range: 6 to 64 daN
  4. Second Unwinder
    1. Max. diameter: 1000 mm
    2. Core: 70 and 150 mm
    3. Tension range: 3 to 35 daN
  5. Rewinder
    1. Diameter rewinder max.: up to 1000 mm
    2. Core: 150 mm
    3. Tension range: 7 to 50 daN
  6. Heater Specifications (Sections 1 to 7)
    1. Amount die: all sections 8
    2. Diameter die: 3.5, 3.5, 1.1, 1.1, 1.1, 1.1, 1.1
    3. Air volume (cubic meters per hour): 3200, 3200, 1500, 1500, 1500, 1500, 1500
    4. Temperature °C: 60, 100, 150, 250, 250, 250, 250
  7. Cooling
    1. Diameter chill roll: 460 mm
    2. Water demand: 30 L/min
    3. Water pressure: 3 bar
    4. Diameter pressure roll: 160 mm
  8. Coating Unit
    1. 1 cylinder rubber: D 205 mm, 70 grad shore
    2. 1 cylinder chrome: D 200 mm
  9. Energy Supply
    1. Voltage: 3 x 380 V, 50 Hz
    2. Heating: thermo-oil
    3. Pressure air: 6 bar ± 0.5
