Nuovo Pignone, TP Series, 1977 to 1986, 2200mm to 2400mm, 8 Colors, Staubli Dobby

Nuovo Pignone, TP Series, 1977 to 1986, 2200mm to 2400mm, 8 Colors, Staubli Dobby

Description

  1. Overview

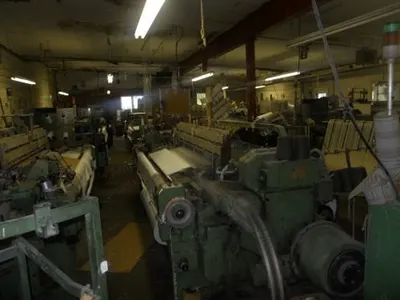

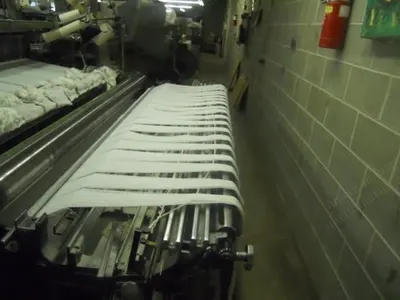

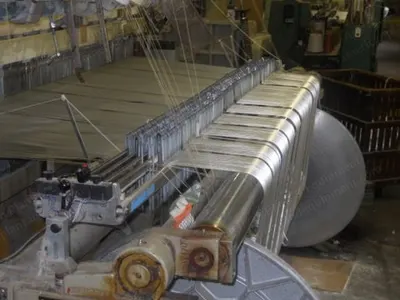

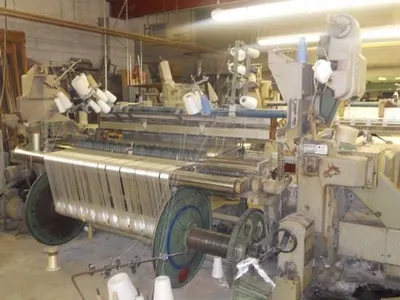

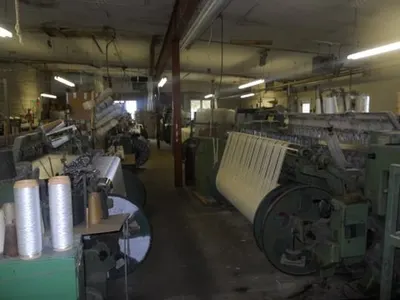

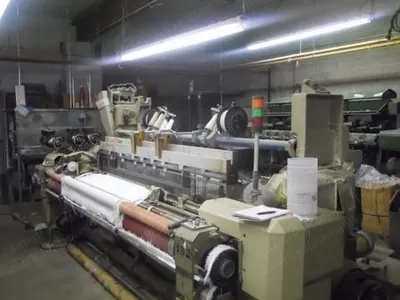

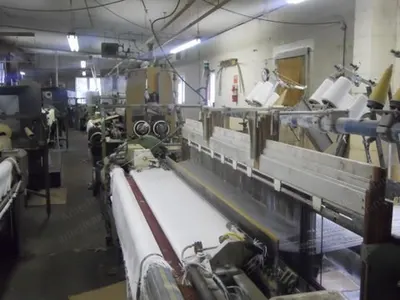

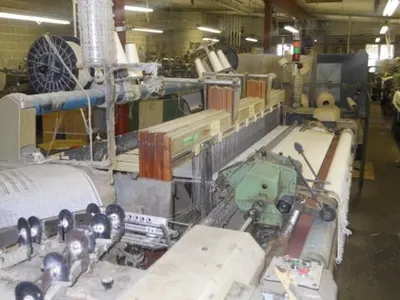

    1. Lot of 16 Nuovo Pignone looms, multiple models and years
    2. Models include TP 321, TP 522, TP 524, TP 422, TP 421, TP 319, and TP 419
    3. All looms are 85" (2200mm) width except two TP 524 units at 96" (2400mm)
  2. Nuovo Pignone Loom Model TP 321 (8 units)
    1. Year: 1977-1981
    2. Width: 85" (2200mm)
    3. Feeders: 2 per loom
    4. Color: 8
    5. Harness frames: 6 per machine
    6. Take up: on loom
    7. Staubli dobby: mechanical, 20 levers per dobby with 20 harness drives
  3. Nuovo Pignone Loom Model TP 522 (2 units)
    1. Year: 1985/86
    2. Width: 85" (2200mm)
    3. Feeders: 2 per loom
    4. Color: 8
    5. Harness frames: 8 per machine
    6. Take up: on loom
    7. Staubli dobby: type 2232 S with 20 levers per dobby and 20 harness drives
  4. Nuovo Pignone Loom Model TP 524 (2 units)
    1. Year: 1986
    2. Width: 96" (2400mm)
    3. Feeders: 2 per machine
    4. Color: 8
    5. Harness frames: 10 per machine
    6. Take up: on loom
    7. Staubli dobby: type 2232 S with 20 levers per dobby and 20 harness drives
  5. Nuovo Pignone Loom Model TP 422 (1 unit)
    1. Type: TP 422
    2. Year: 1983
    3. Width: 85" (2200mm)
    4. Feeders: 2 per machine
    5. Color: 8
    6. Harness frames: 10 per machine
    7. Take up: on loom
    8. Staubli dobby: type 2232 S with 20 levers per dobby and 20 harness drives
  6. Nuovo Pignone Loom Model TP 421 (1 unit)
    1. Year: 1985
    2. Width: 85" (2200mm)
    3. Feeders: 0
    4. Color: 8
    5. Harness frames: 10 per machine
    6. Take up: on loom
    7. Staubli dobby: type 2232 S with 2 levers and 14 harness drives
  7. Nuovo Pignone Loom Model TP 319 (1 unit)
    1. Year: 1980
    2. Width: 85" (2200mm)
    3. Feeders: 2 per machine
    4. Color: 8
    5. Harness frames: 5 per machine
    6. Take up: on loom
    7. Staubli dobby: mechanical with 20 levers and 20 harness drives
  8. Nuovo Pignone Loom Model TP 419 (1 unit)
    1. Year: 1982
    2. Width: 85" (2200mm)
    3. Feeders: 0
    4. Color: 8 per machine
    5. Harness frames: 7 per machine
    6. Take up: on loom
    7. Staubli dobby: type 2232 S with 20 levers and 20 harness drives
    8. Additional harness frames: 5 per machine

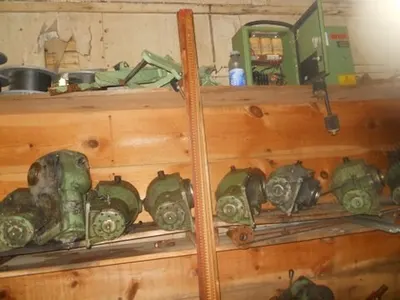

  9. Spare Parts

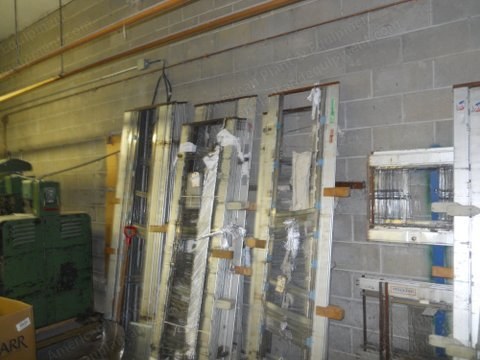

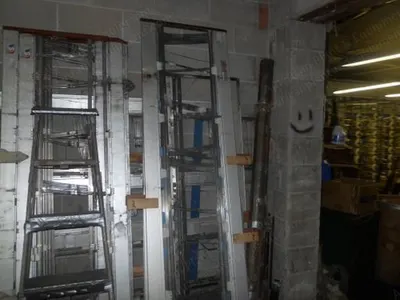

    1. Harness frames: 100
    2. Reeds: 50

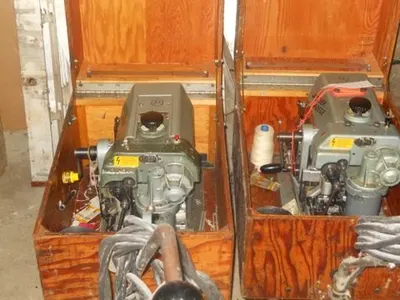

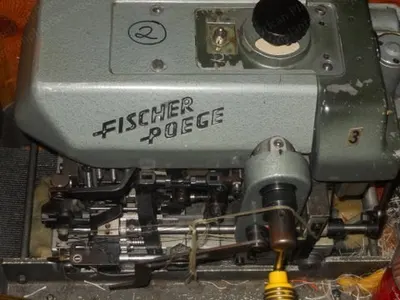

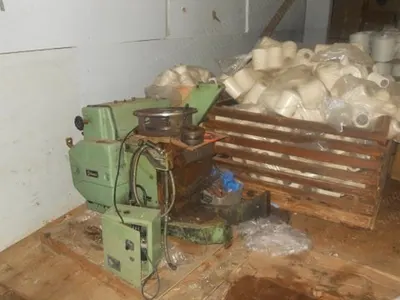

    3. Tie end machines: 3 Fischer Poege

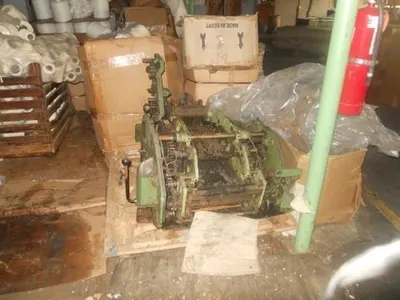

    4. Spare dobbys: 2

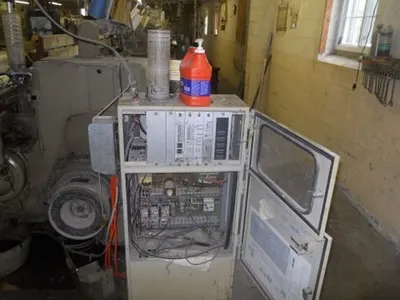

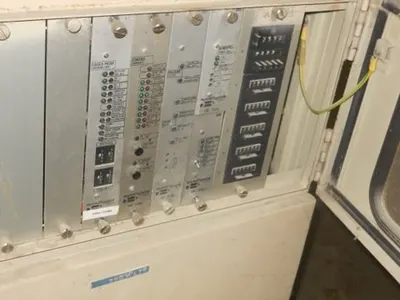

    5. Spare electronic boxes: 2

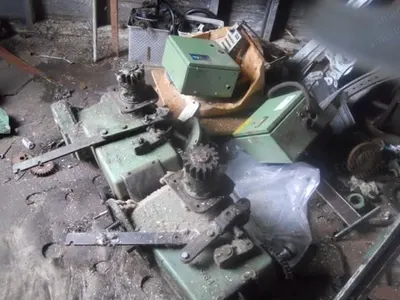

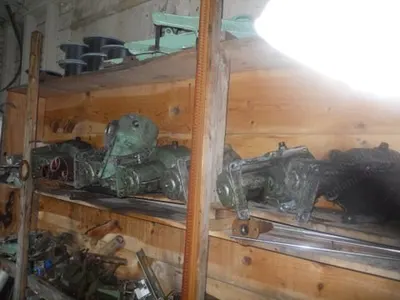

    6. Other miscellaneous parts (pictures supplied)
