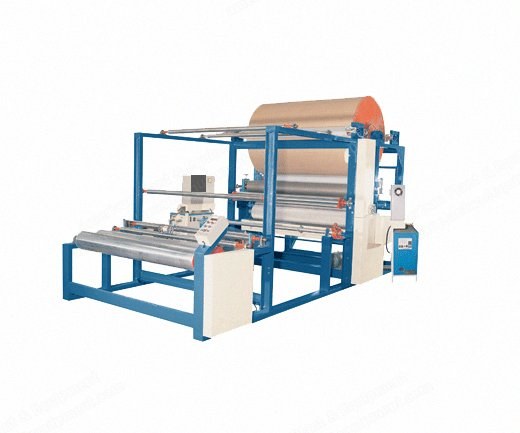

NovaStar, LC128, Hot-Melt Glue Laminating Machine, 1830mm Working Width, 32 kW, 0-28 y/min (New)

NovaStar, LC128, Hot-Melt Glue Laminating Machine, 1830mm Working Width, 32 kW, 0-28 y/min

Description

  1. Overview
    1. Used for gluing and laminating in the process of shoe-making, textile manufacturing, etc.
  2. Characteristics
    1. Application of dot-shape gluing makes the finished products breathable.
    2. Heat conduction oil is used for transferring heat for the gluing roller, tank, and spreading knife board, which ensures complete melting of the glue and uniformity of temperature.
    3. Different effects can be achieved by replacing different gluing rollers to match different materials.
    4. Different gluing tanks can be added for multi-purpose.
  3. Specifications
    1. Dimensions (L x W x H): 5200 x 2400 x 2800 mm
    2. Power: 32 kW
    3. Heating roller: 1200 dia. x 1830 mm
    4. Motor power: 7 hp
    5. Working width: 1830 mm (72)
    6. Working speed: 0-28 y/min
