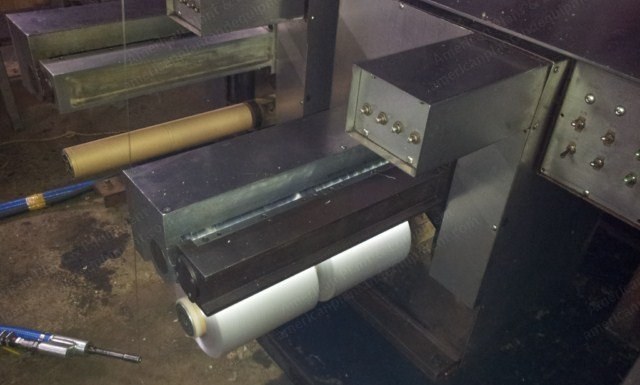

Hankook Machinery, PP FDY Multifilament Yarn Plant, 2010, 700 kg/day, 60mm Extruder, 4 Godet Rollers

Hankook Machinery, PP FDY Multifilament Yarn Plant, 2010, 700 kg/day, 60mm Extruder, 4 Godet Rollers

Description

  1. Overview
    1. Maker: Hankook Machinery (Korea)
    2. Year: 2010
    3. Range of production: 500 d/2 to 3, 1200 d/3
    4. 1 cope x 4 winder system
    5. Tenacity range: max. 6.5 gpd
    6. Production capacity: 700 kg per day (based on 600 denier)
  2. Main Structure
    1. Extruder with 60 mm screw diameter
    2. Spin block
    3. Gear pump parts
    4. Quenching system
    5. Emulsion and auxiliary roller
    6. Draw roll parts: 4 parts (7 godet rollers each)
    7. Interlacing unit: 4 pieces
    8. Take up winder: 1 cope x 4 winder
    9. Electric control panel
  3. Included
    1. Air compressor 50 hp
    2. Air tank with 2 cubic meter capacity
