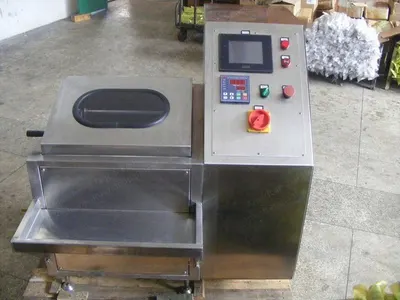

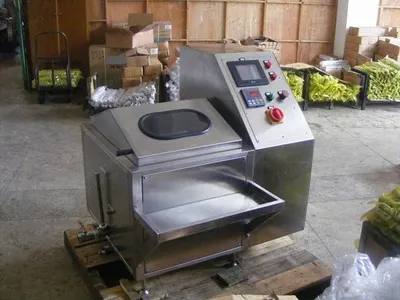

NovaStar, DG293, Laboratory Jigger Dyeing Machine, Roller Width 350mm, PLC Control (New)

NovaStar, DG293, Laboratory Jigger Dyeing Machine, Roller Width 350mm, PLC Control

Description

  1. Applications
    1. Suitable to test the dyeing of cotton and linen cloth, viscose, man-made fiber, etc.
    2. Suitable for dye materials such as direct dyes, acid dyes, basic dyes, insoluble azo dyes, and reactive dyes.
    3. Can achieve bleaching and dyeing with low-liquor ratio.
    4. Simulates the mechanism of production jigs.
  2. Features
    1. Operating interface: color touch screen man-machine interface, operate easily, programmable function, presetting dyeing technics for customer.
    2. Constant fabric speed: advanced electronic encode control speed technology to precise control of cloth speed, and maintains a constant cloth speed real-time.
    3. Temperature control and monitor: avoids heating unevenness, automatic temperature control system monitors dyes solution's temperature accurately, and displays the temperature on digital panel.
    4. Fabric tension: tension on cloth by adjusting different linear speeds of two main rolls, therefore maintaining constant tension; tension value direct input by color touch screen; adjusts speed automatically.
    5. Motor: 2 sets of 120 watts precision-controlled motors, equipped with high quality reducer.
    6. Controller: industrial programmable logic controller (PLC), high reliability, and advanced anti-interference capability.
    7. Structural design: modular design, convenient for precision production and properties expanding, specially designed cloth-leading structure, easy to install and dismantle.
    8. Dye vat structure: SS304 stainless steel body (no rust formation, durable, consumes small quantity of dye solution).
    9. Dye solution cycle mode: auto-stirring, keep dyes solution homogeneity.
    10. Winding length: automatically records, pre-settable, measurable and controllable.
    11. Alternating material travel: reverses automatically according to cloth length and number of cycles desired.
    12. Timing: adjustable, end of cycle alarm.
  3. Key Specifications
    1. Roller diameter: 76 mm to 200 mm (customer specifies).
    2. Roller width: equal to or less than 350 mm.
    3. Main roller distance: 380 mm.
    4. Speed range and accuracy: 0 to 10 m/min, ±0.001 meters/min.
    5. Heating temperature and accuracy: room temperature to 98 degrees Celsius ± 2 degrees.
    6. Heat power: less than 1.2 kW.
    7. Liquor volume: about 1.8 liters.
    8. Electric load: about 1.5 kW.
    9. Power supply: 220 V, 1 phase, 50 Hz.
    10. Dimensions (L x W x H): 810 mm x 720 mm x 900 mm (34 in x 29 in x 36).
    11. Weight: about 45 kg.
  4. Mechanical Configuration

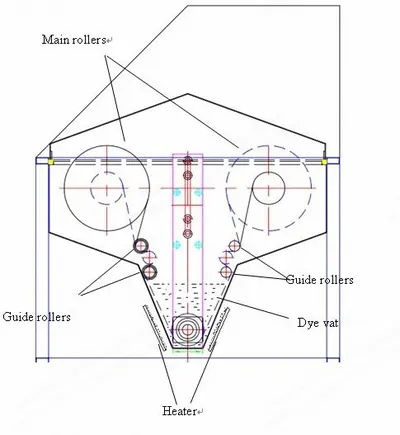

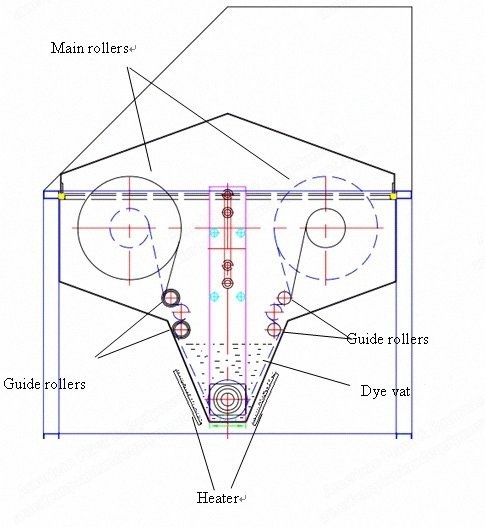

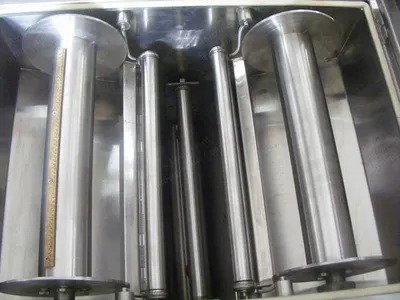

    1. Transmission system: equipped with 2 sets of precision control motors, with high quality gear reducer, two main rollers, receiving roller and supply roller, controlled separately.
    2. Dye vat, cover, main roller, leading roller are made of stainless steel; whole machine is produced with fine workmanship.
    3. Electrical configurations: displayer - electric color touch screen.
    4. Controller: industrial programmable logic controller (PLC).
    5. Cooling and heating methods: 1 set cooling coil, digital automatic temperature control system.
