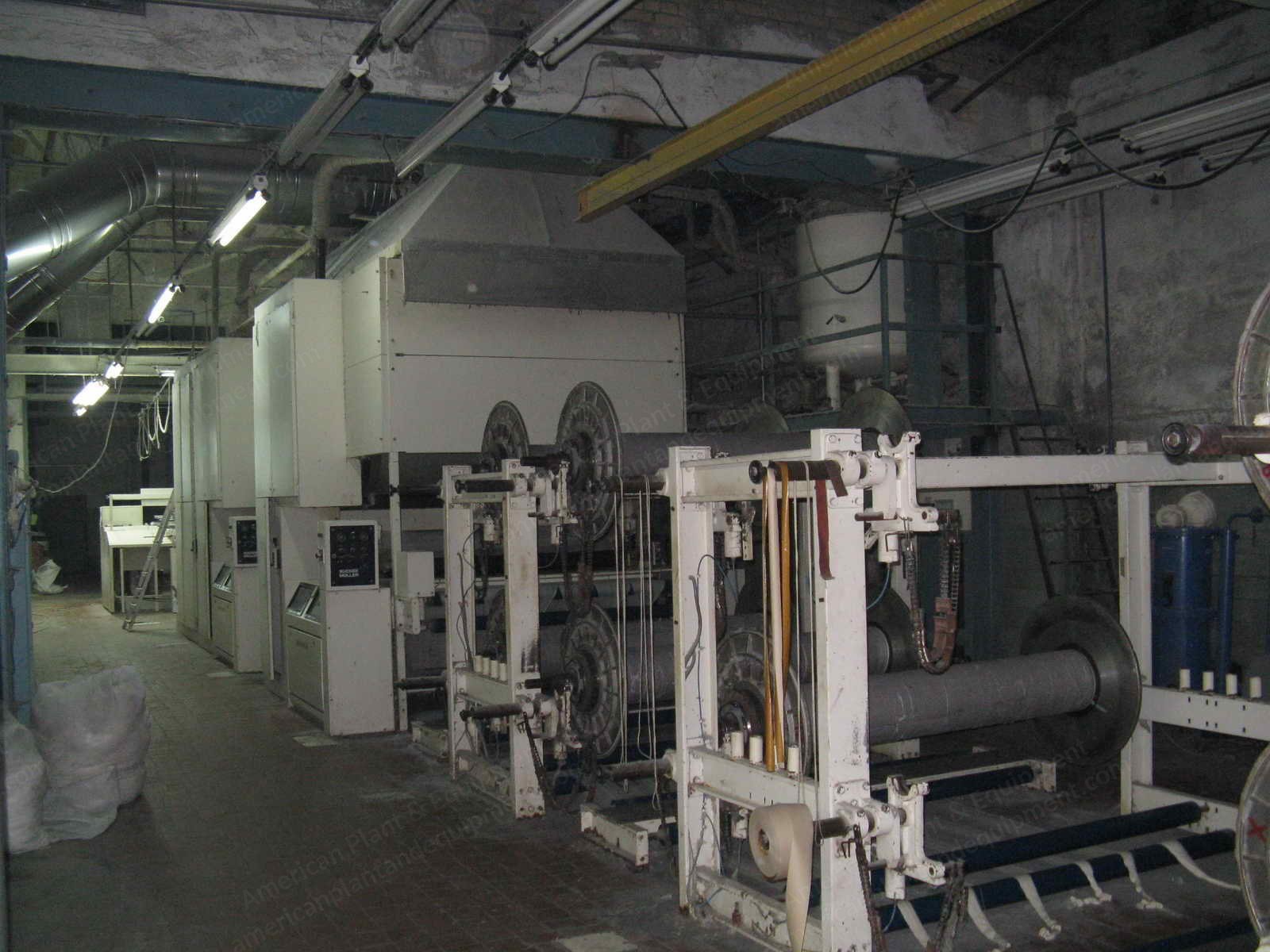

Sucker Muller, 332, 1988, 1800mm Working Width, 12 Cylinders, 16 Beam Creel

Sucker Muller, 332, 1988, 1800mm Working Width, 12 Cylinders, 16 Beam Creel

Description

  1. Overview
    1. Maker: Sucker Muller
    2. Model: 332
    3. Year: 1988
  2. Specifications
    1. Roller width: 2000 mm
    2. Working width: 1800 mm
    3. Composed of: 1 creel ANP for 16 beams, 1800 mm width and flange diameter 1000 mm
    4. Pneumatic brakes
    5. 2 pneumatic tensioners
    6. 2 size boxes, each with 2 squeezing rollers and 1 driving roller, max. 40 kN
    7. 1 cylinder dryer with 12 cylinders (9 teflon coated), max. diameter 800 mm, pressure 5 bars
    8. 1 headstock WR-CE, 2600 mm, for flanges 650 to 1016 mm, max. beam length 2920 mm
    9. 1 control unit Logos RC 520-E, process control and adjustments by monitor
    10. Length measuring, pressure adjustment, sizing concentration 1 to 10%, temperature control
    11. Humidity control unit Textometer, 1 hood, with accessories like sizing tank 800 liters
  3. Condition
    1. Includes pneumatic brakes
    2. Includes pneumatic tensioners
    3. Includes size boxes with squeezing and driving rollers
    4. Includes cylinder dryer with teflon-coated cylinders
    5. Includes headstock and control unit
    6. Includes humidity control unit and hood
    7. Includes sizing tank
  4. Included
    1. 1 creel ANP for 16 beams
    2. 2 pneumatic tensioners
    3. 2 size boxes
    4. 1 cylinder dryer with 12 cylinders
    5. 1 headstock WR-CE
    6. 1 control unit Logos RC 520-E
    7. 1 humidity control unit Textometer
    8. 1 hood
    9. 1 sizing tank, 800 liters
    1. Not specified
