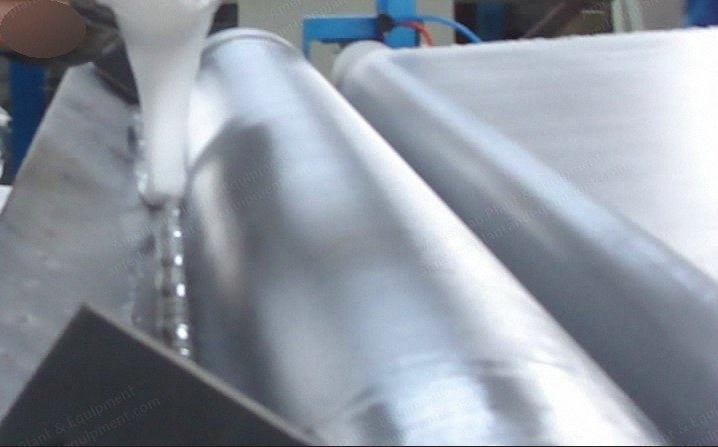

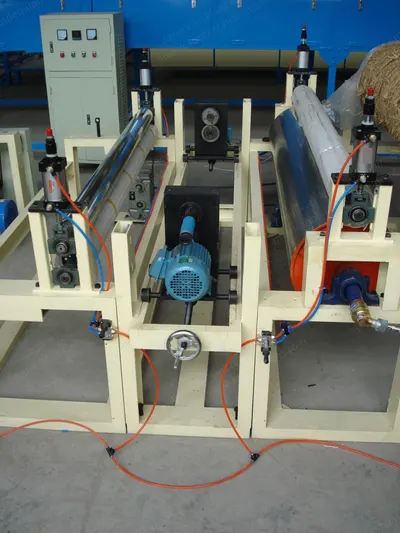

NovaStar, CG139, Powder Laminating Machine, 2150mm Working Width, 2300mm Roller Width, Electric Heating (New)

NovaStar, CG139, Powder Laminating Machine, 2150mm Working Width, 2300mm Roller Width, Electric Heating

Description

  1. Overview
    1. Used in textile, non-woven products on rubber, double roller for wool, slurry fleece, plush, downs, foam, cloth, eva, viscose composite, etc.
    2. Equipped with automatic fabric feeding.
  2. Technical Specifications
    1. Working width: 2150 mm
    2. Roller width: 2300 mm
    3. Laminating speed: 2 to 45 meters/min (adjustable)
    4. Glue coating type: glue point transferred technology
    5. Coating method: powder transfer point
    6. Diameter of coating roll: Φ215 mm
    7. Heating type: electric
    8. Heating cylinder diameter: Φ1500 mm
    9. Machine capacity: approx. 65 kW
    10. Machine overall dimensions (l x w x h): about 10980 mm x 2750 mm x 2170 mm
    11. Machine weight: approx. 4500 kg
    12. Inverter control
    13. Adhesion agent: solvent-based glue
