Trutzschler, Complete Line for Regenerated Yarn, 2000, 1200mm Working Width, with 3x DK803 Cards, 2x Vouk Drawing Frames, 2x Rieter RU 04 Open End Spinning

Trutzschler, Complete Line for Regenerated Yarn, 2000, 1200mm Working Width, with 3x DK803 Cards, 2x Vouk Drawing Frames, 2x Rieter RU 04 Open End Spinning

Description

  1. Overview
    1. Complete blending and carding line for man-made and natural fibers
    2. Includes weight pan blenders, waste opener, blending lattice, metal detector, descarge box, multimixer, pinned beater opener, feeding fan, high production cards, control panel, humidifiers, drawing frames, and open end spinning machines
    3. All machines from year 2000 except where noted
  2. Weight Pan Blenders

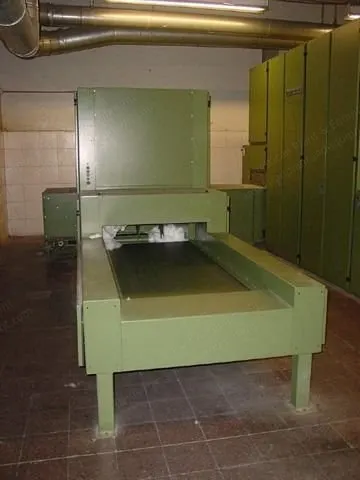

    1. Two Trutzschler BOW1200 weight pan blenders, year 2000
    2. Working width 1200 mm
    3. Feeding lattice of 4250 mm (first unit) and 3750 mm (second unit)
    4. Manual feeding
    5. Predisposed for automatic waste collection
    6. Electronic weight commander of the pans
    7. Voltage 380 V, 3-phase, 50 Hz
  3. Waste Opener
    1. One Trutzschler AS waste opener, year 2000
    2. Working width 1000 mm
    3. Feeding lattice of 2750 mm
  4. Blending Lattice
    1. One Trutzschler FM170 blending lattice, year 2000
    2. Working width 1000 mm
    3. Exit with pinned beater of 8 lines of pins
    4. Voltage 380 V, 3-phase, 50 Hz
    5. Mouth piece diameter 300 mm
  5. Metal Detector
    1. One Boekel metal detector, year 2000
  6. Descarge Box for Metal Parts
    1. One Trutzschler EMA1200 descarge box for metal parts, year 1999
  7. Multimixer

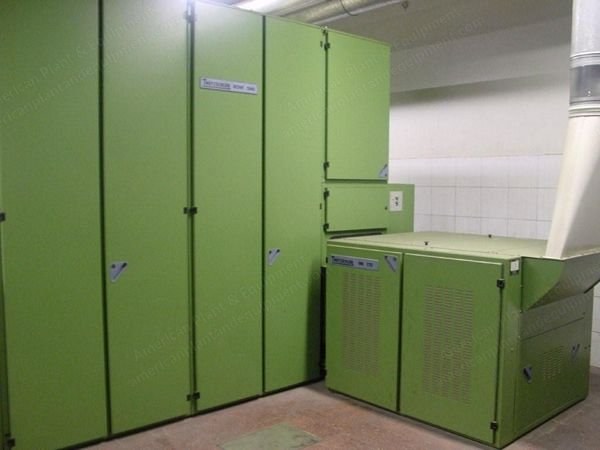

    1. One Trutzschler MCM4 236 multimixer, year 2000
    2. Multimixer with 4 cells
    3. Working width 1200 mm
    4. Direct feeding of TVF 2 opener
    5. Blendo commander on board
    6. Voltage 380 V, 3-phase, 50 Hz
  8. Pinned Beater Opener
    1. One Trutzschler TFV-2 pinned beater opener, year 2000
    2. Working width 1200 mm
    3. Exit with 300 mm
  9. Feeding Fan
    1. One Trutzschler MTV 425 feeding fan, year 2000
    2. Main motor with 7.5 hp
  10. High Production Cards
    1. Three Trutzschler DK803 high production cards, year 2000
    2. Feeding by direct chute type DFK
    3. Working width 1000 mm

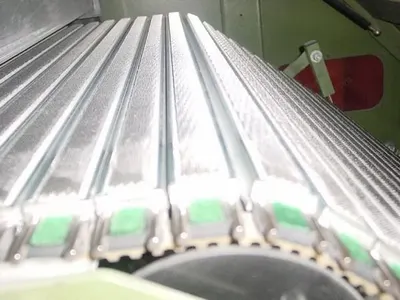

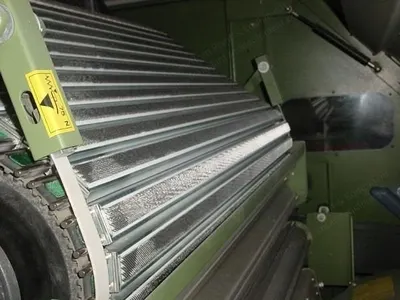

    4. Revolving flats in aluminium

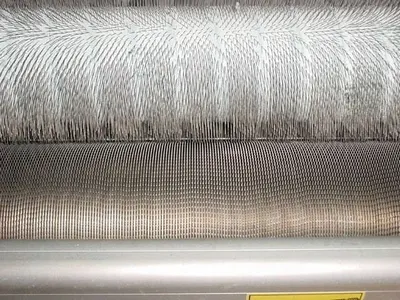

    5. Cards clothing for man-made fibers and natural fiber
    6. Card commander
    7. Autoleveller integrated

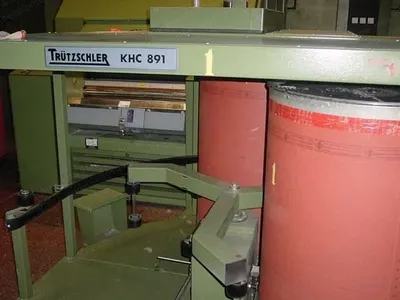

    8. Automatic cans changer type KHC 756/800 (900 mm x 1200 mm)
    9. 2 cans in stand by and one in work
    10. Cans size 30" x 45"
    11. Centralized waste collection
    12. Voltage 380 V, 3-phase, 50 Hz
  11. Control Panel
    1. One Trutzschler EGS control panel, year 2000
  12. Humidifiers

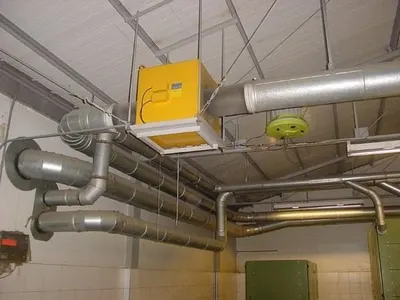

    1. Four Weco humidifiers, year 2000
    2. Each one suitable for approximately 120 square meters
  13. Drawing Frames

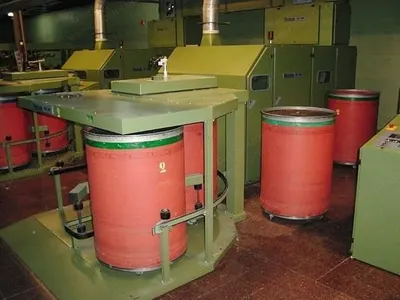

    1. Two Vouk SH802 drawing frames, year 2000
    2. Feeding creel for cans from 24" to 40" diameter
    3. 8 coupling each head
    4. Two delivery 8 (two cans)
    5. Automatic cans change
    6. Exit cans 18 x 42 (450 mm x 1020 mm)
    7. Autoleveller Uster electronic for short and medium period
  14. Open End Spinning Machines
    1. Two Rieter RU 04 open end spinning machines, year 1996 (upgraded in 2006 by Rieter)
    2. 120 spindles each
    3. Feeding cans 18" x 42"
    4. Diameter rotor 80 mm (for course count)
    5. Spindle clutch type R1 / R40 (fitted in 2006)
    6. Beater OS 21
    7. Take up 1º15
    8. Traverse 6"
    9. Manual doffing
    10. Air discharge into the floor
    11. Voltage 380/400 V, 50 Hz
  15. Included Accessories
    1. Spare parts catalogue
    2. Instruction manuals
    3. Electrical diagrams
    4. Connection pipings round and square
    5. Spare parts and accessories
