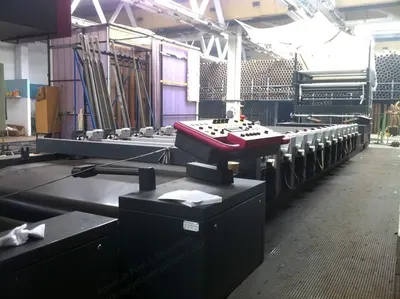

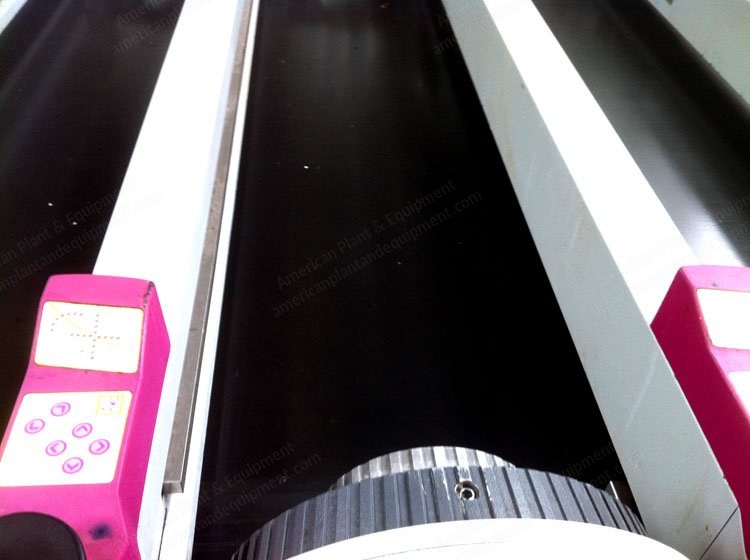

Stork, RD DD, 1996, 1850mm, 16 Color, 12 Positions, Steam Heated Dryer

Stork, RD DD, 1996, 1850mm, 16 Color, 12 Positions, Steam Heated Dryer

Description

  1. Overview
    1. Maker: Stork
    2. Model: Rd Dd
    3. Direct drive for wovens and knitted fabrics
    4. Year: 1996-1997
  2. Specifications
    1. Max. printing width: 1850 mm

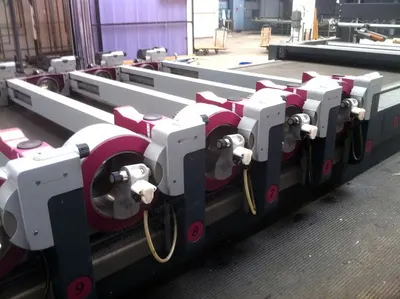

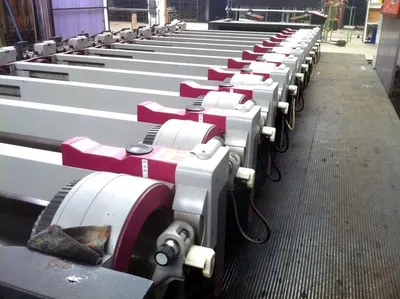

    2. 16 color, 12 positions installed

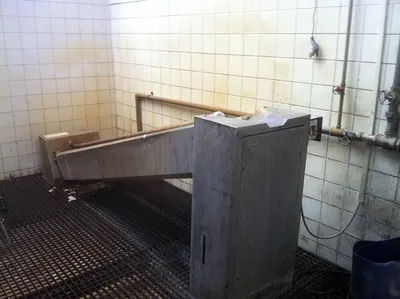

    3. Machine is equipped with automatic squeegee washer and 1 screen washer suitable for each of 3 screens and 6 squeegees

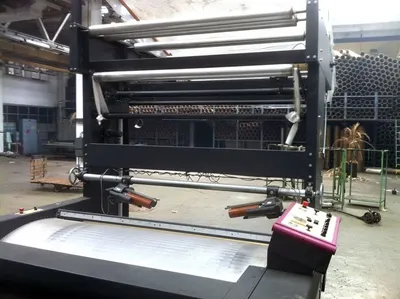

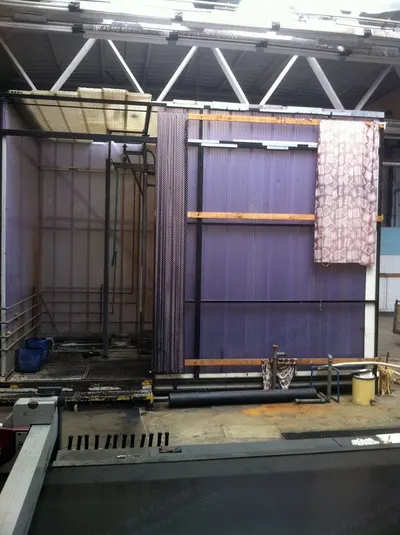

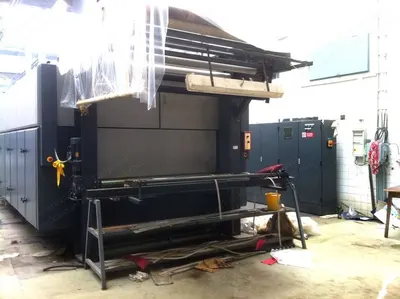

    4. High cloth feeding frame with unwinding either from a-frame or plaited fabrics
    5. Knitted fabric expanding device by rotary expander make Erhardt & Leimer SW and pneumatic edge uncurlers (so-called elephant ears)
    6. Printing blanket glueing
    7. Automatic repeating adjustment

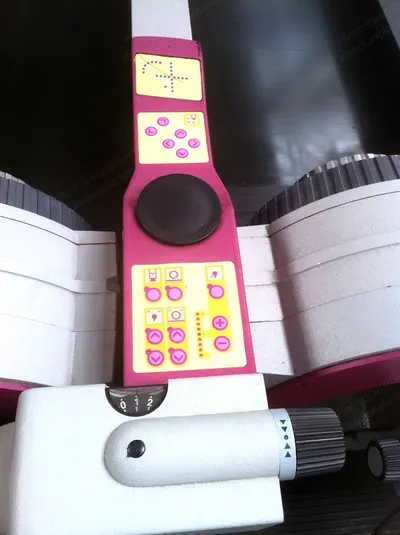

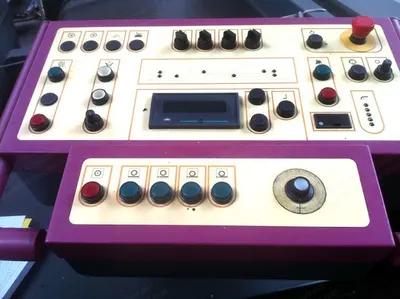

    8. Working terminal
  3. Drying System

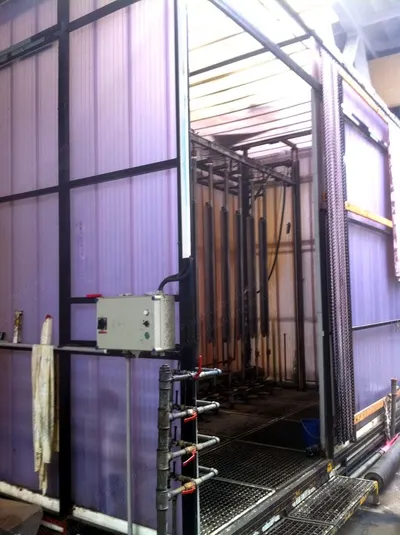

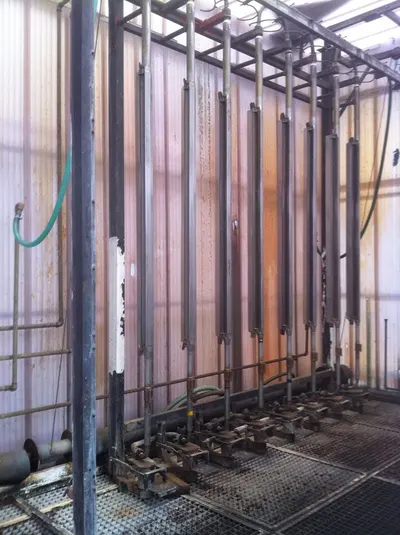

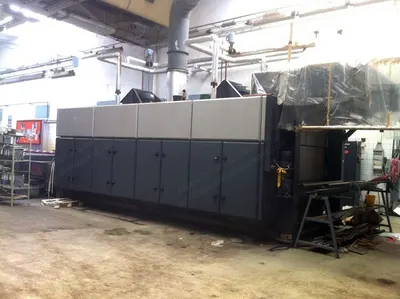

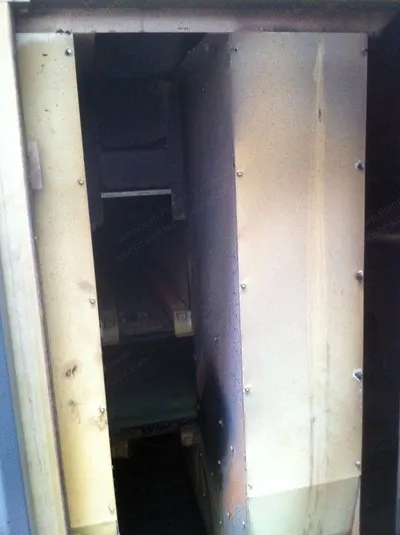

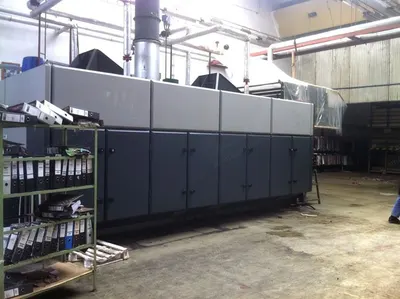

    1. Exit into dryer steam heating type 3DDII, 3 chambers with 2 passages
    2. Temperature control
