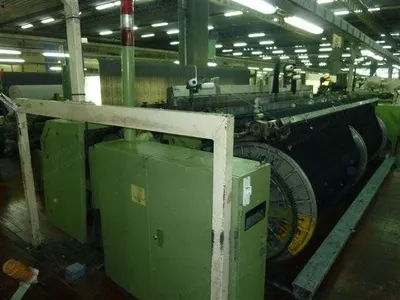

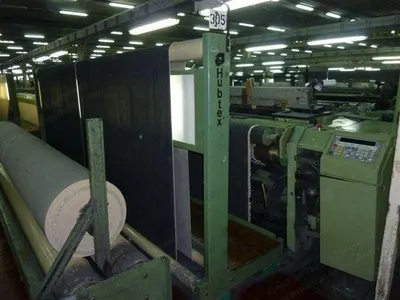

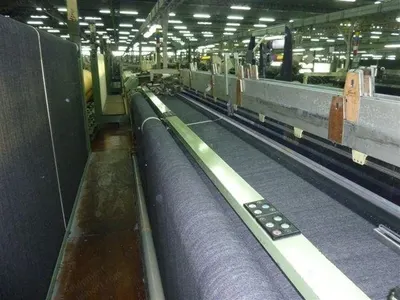

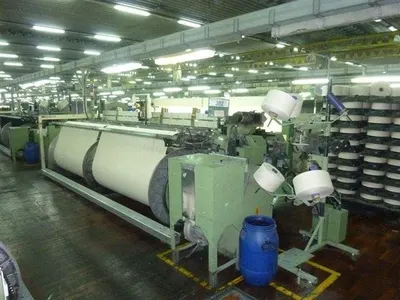

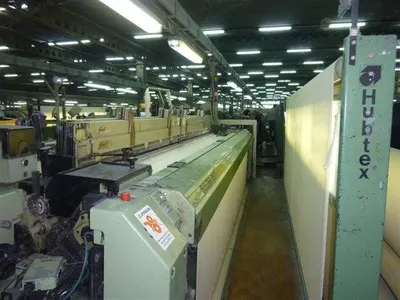

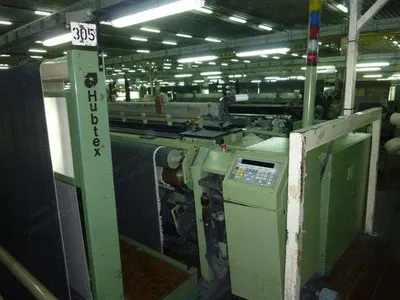

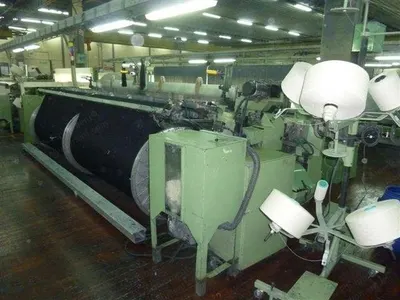

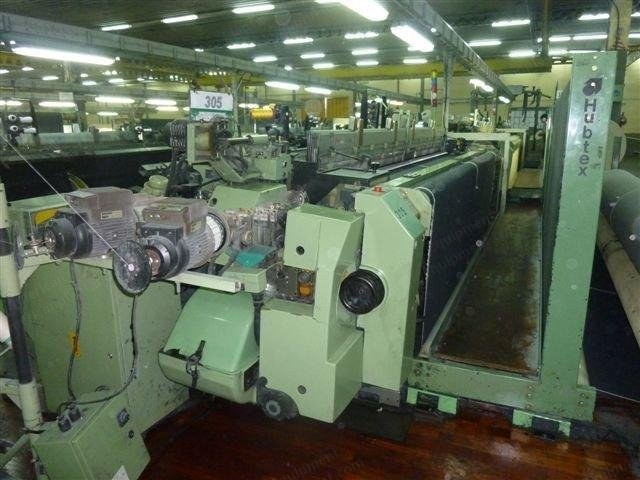

Sulzer, P7200 B 360 N4 EP R Q D1, 1992, 3600mm Working Width, 4 Colors, Cam Motion

Sulzer, P7200 B 360 N4 EP R Q D1, 1992, 3600mm Working Width, 4 Colors, Cam Motion

Description

  1. Overview
    1. Maker: Sulzer
    2. Model: P7200 B 360 N4 EP R Q D1
    3. Working width: 3600 mm
    4. Year: 1992
  2. Specifications
    1. Weft insertion rate: up to 1400 meters per minute, at a wattage of only 5.5 kW
    2. Speed (last in running): 450 rpm
    3. Number of colors/yarns: 4, electronically controlled, programmable for any sequence; electronically controlled weft thread brake
    4. Yarn count range: staple fibres from 6.4 to 2000 tex (Nm 160 to 0.5); endless yarns from 12 to 5500 dtex (10.8 to 5000 den)
    5. Warp let-off: electronically controlled, reversible, automatic correction of warp tension at machine start-up depending on prior duration of stoppage
    6. Warp beams: tube dia. 150 and 216 mm; flange dia. 940 mm

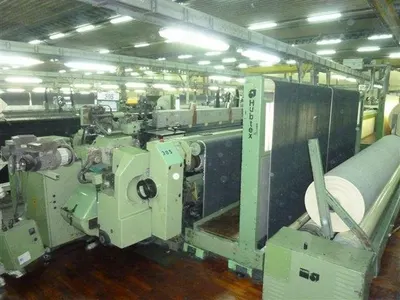

    7. Cloth take-up: with double back whip rollers
    8. Range of weft densities: 0.83 to 181 picks/cm
    9. Shedding: E10 eccentric cam motion
    10. Weft insertion: D1 steel projectiles

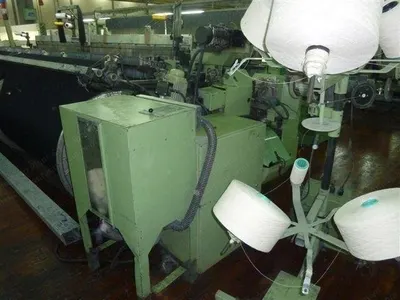

    11. Weft feeder: with weft stop motion before feeder and automatic feeder change-over at thread break between package and feeder, preconditioning same weft yarn
    12. Sley: low-mass; twin-can drive at both sides
    13. Selvedge formation: tucked-in selvedge on both sides
    14. Warp stop motion: LED display at both sides with sector indication; with digital display
    15. Weft stop motion: piezoelectric

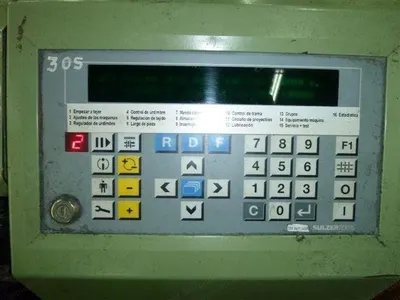

    16. Microprocessor control: with menu-controlled terminal display in plain text, available in 6 languages, data transfer with data-carrier and memory card, standard interfaces for link-up with plant production management systems
    17. Compact multifunctional: gear creep speed motion, automatic shed levelling and automatic pick-finding device are combined in a low-maintenance gear, running in an oil-bath, and driven by one and the same motor
  3. Condition
    1. Machines are complete for 2-color weaving
    2. 1 set of guide teeth on approx. 90% of the full width
  4. Included Per Machine
    1. 3 half length beams of 940 mm flange dia.
    2. 0 cloth rolls, machines with off-loom take-up system

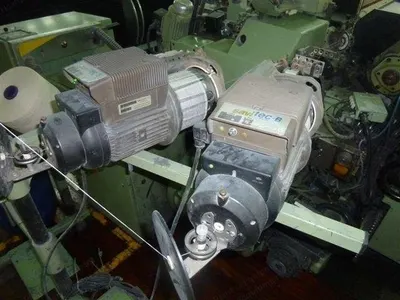

    3. 2 Savitec-B weft accumulators with profi-wagon
    4. 8 Grob heald frames
    5. 5 to 6 warp stop motion bars
    6. 7000 droppers and heddles
    7. 16 D1 projectiles
    1. Quantity: 10
