NovaStar, RS133, 6-Cylinder Recycling Machine (Rag Picker), 1500mm Cylinder Width, 800-1500 kg/hr Capacity (New)

NovaStar, RS133, 6-Cylinder Recycling Machine (Rag Picker), 1500mm Cylinder Width, 800-1500 kg/hr Capacity

Description

  1. Overview
    1. Capacity: 800 to 1500 kgs/hour
    2. Six cylinders
    3. Recycles kinds of textile waste to obtain fiber
    4. Waste enables use for rotor spinning and any other purpose
    5. Makes good use of waste material, thus saving cost
    6. The fiber will be 22-35 mm, but it depends on the raw material
  2. Specifications
    1. Diameter of the cylinder: 1000 mm
    2. Cylinder width: 1500 mm
    3. Cylinder model: 6 aluminium spiked bar with pins
    4. Size of the machinery (L x W x H): 18670 mm x 1750 mm x 2035 mm
    5. Weight of the machinery: about 18000 kgs

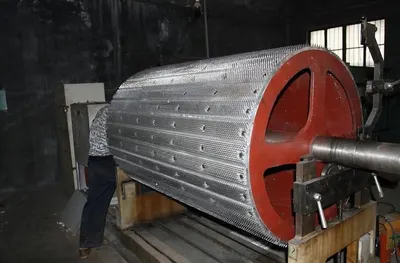

  3. Cylinder Details
    1. First cylinder: 40000 pins on the cylinder
    2. Second and third: 104000 pins on the cylinder
    3. Fourth to sixth: 150000 pins on the cylinder
  4. Power Specifications
    1. Power of each cylinder: first 75 kW, second to fifth 55 kW, sixth 45 kW
    2. Dust fan: 5.5 kW each cylinder
