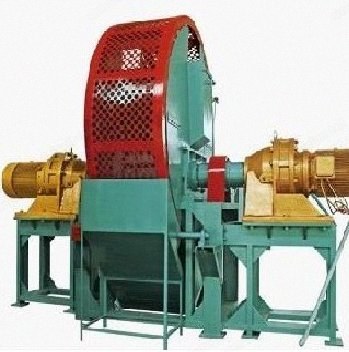

At room temperature, the whole tire or large plastics or rubber can be placed into the crushing chamber directly, which can then be crushed to a size between 30 to 80 mm.
The extra-large tire can be crushed after cutting into smaller pieces.
Compact structure, advanced technology and low energy consumption.
The blades are made of cemented carbide by bead welding technology with high rigidity.
The tire can be crushed directly without removing the steel wire of inner ring with size ≤ 1 mm.
With belt conveyor horizontally at the bottom.
Continuous crushing, automatic sieve screening.
Technical Data
Model: PS-800
Feed size: ≤ 800 mm whole tire
Product size: 50 × 50 mm
Power: 45 kW
Crushing speed: 1000 to 1500 kg/h
Machine dimension: 2800 × 2100 × 2400 mm
Machine capacity: 1500 kg/h
Machine weight: 5800 kg
