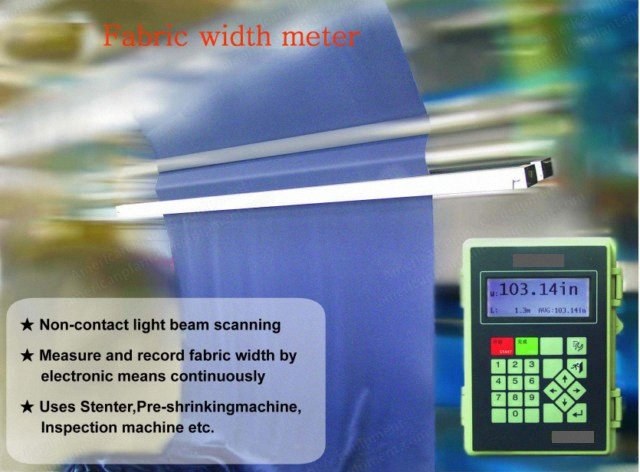

NovaStar, TL112, Infrared Fabric Width Meter, 2850mm Working Width, Non-Contact Infrared Digital Control Scanning (New)

NovaStar, TL112, Infrared Fabric Width Meter, 2850mm Working Width, Non-Contact Infrared Digital Control Scanning

Description

  1. Overview
    1. Scanning resolution: 100 mm/dot
    2. Fabric type: woven or knitted fabric
    3. Measuring mode: non-contact infrared digital control scanning
  2. Specifications
    1. Working temperature: 0 to +50 °C
    2. Power supply: 85 V to 260 V, AC, 25 VA
    3. Max. width: 2850 mm (can be extended on request)
    4. Com ports: RS485 for remote display or central data logging
  3. Optional Features
    1. Extended tube length: extended measuring range from 2850 mm to 3350 mm
    2. Alarm output: relay contact alarm output
    3. Remote com port: remote fabric width display port RS485
    4. Width printer: fabric width printout (thermo paper)
    5. Length wheel: fabric length measuring wheel c/w encoder
    6. Width logger: central fabric width data logging system, capture data against time or fabric length
    7. Cloth width electric current output: mA output proportion to fabric width, 4 to 20 mA
