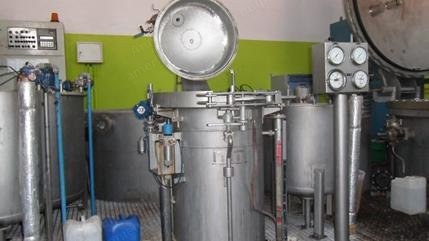

ITM, Longclose, Vald. Henriksen, Pressure Yarn Dyeing Machines, 1987-1995, 10-Machine Dyehouse Package

ITM, Longclose, Vald. Henriksen, Pressure Yarn Dyeing Machines, 1987-1995, 10-Machine Dyehouse Package

Description

  1. Pressure Dyeing Machine Itm Ht 30
    1. Dye machine for yarn bobbins and loose fibers.
    2. Charge: 30 kg.
    3. Controller: Arel Atc 304.
    4. Model: 131xx.
    5. Year: 1995.
  2. Pressure Dyeing Machine Itm Ht 60
    1. Dye machine for yarn bobbins and loose fibers.
    2. Charge: 60 kg.
    3. Controller: Arel Atc 304.
    4. Model: 131xx.
    5. Year: 1995.
  3. Pressure Dyeing Machine Longclose Typ Unicon Ht
    1. Dye machine for yarn bobbins and loose fibers.
    2. Charge: 500 - 600 kg.
    3. Controller: Pc 3000.
    4. Machine adapts to dye with air pillow for small batch.
    5. Dye liquor outlet under pressure possible.
    6. Model: 126xx/1.
    7. Year: 1987.
  4. Pressure Dyeing Machine Longclose Typ Unicon Ht
    1. Dye machine for yarn bobbins and loose fibers.
    2. Charge: 500 - 600 kg.
    3. Controller: Pc 3000.
    4. Machine adapts to dye with air pillow for small batch.
    5. Dye liquor outlet under pressure possible.
    6. Model: 131xx.
    7. Year: 1989.
  5. Pressure Dyeing Machine Vald. Henriksen Type Gru 35
    1. Dye machine for cross wound.
    2. Charge: 100 kg.
    3. Process-controller Microtex Uni.
    4. Model: 6xx.
    5. Year: 1992.
  6. Pressure Dyeing Machine Vald. Henriksen Type Gru 75
    1. Dye machine for cross wound.
    2. Charge: 200 kg.
    3. Process-controller Microtex Uni.
    4. Model: 6xx.
    5. Year: 1992.

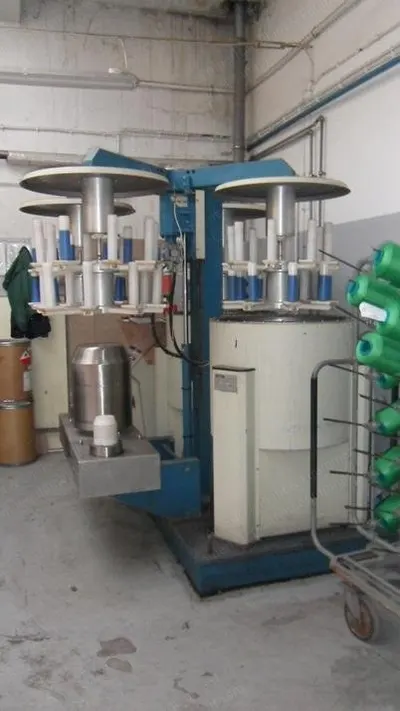

  7. Centrifuge For Yarn Bobbins
    1. Brand: Dettin Italy.
    2. Model: Berta 24.
    3. Year: 1991.
    4. Revolution: 1500 min-1.
  8. Pressure Dryer Vald. Henriksen Gru 75
    1. Diameter of vessel: 1400 mm.
    2. Max pressure: 5 bar.
    3. Max temperature: 140 c.
    4. Capacity cotton: 250 kg.
    5. Drying time for cotton: 1 hour.
    6. Blower motor: 90 kw.
    7. Steam consumption: 400 kg/h.
    8. Cooling water consumption: 8,500 l/h.
    9. Cooling water for blower: 600 l/h.
    10. Volume: 2500 liter.

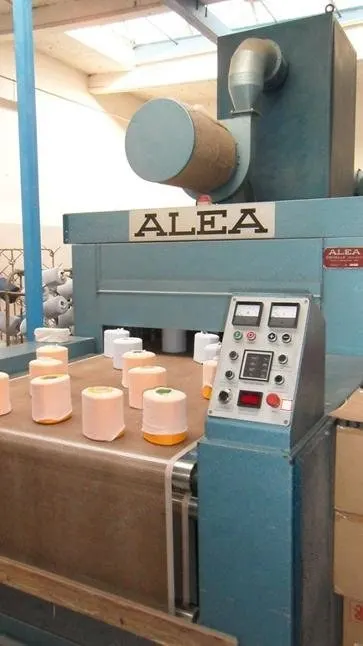

  9. High Frequency Dryer Alea Hfn-30
    1. Drying yarn bobbins and loose fibers.
    2. High frequency: 27,12 mhz, power of electrode 30 kw.
    3. Electric current: 380 v, max power 45 kva.
    4. Max vaporize: 36 l/h (h2o).
    5. Belt conveyor speed: 1 - 40 m/h.
    6. Max belt conveyor load: 60 kg/m².

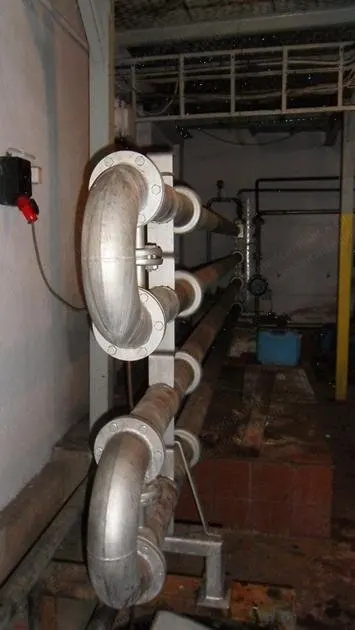

  10. Tubular Heat-Exchanger
    1. Producer: Thies Ag Type Wrg 100.
    2. Efficiency nominal: 8 m³/h.
    3. Thermal power: 380 kw.
    4. Tubular heat-exchanger: 16 m³.
    5. Connection to net: 25 dn.
    6. Waste water pump: 22 kw.
    7. Control cabinet.
    8. Quantity: 10.
