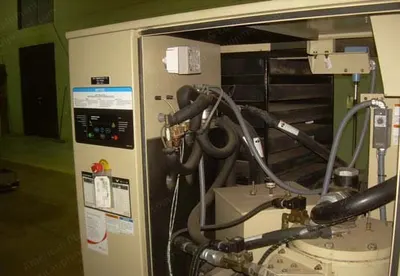

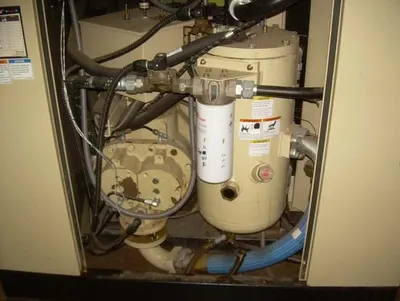

Ingersoll Rand, SSR EP-100, 100 HP, 434 CFM, 125 PSig, Rotary Screw Air Compressor

Ingersoll Rand, SSR EP-100, 100 HP, 434 CFM, 125 PSig, Rotary Screw Air Compressor

Description

  1. Overview
    1. 100 hp rotary screw air compressor
    2. Skid based and fully enclosed in a NEMA 4 weatherproof cabinet
    3. Capable of generating 434 cubic feet per minute of compressed air
    4. Main electrical power is 460 volts, 3 phases, 60 hertz (133 amps)
    5. Utilizes a swing-out air cooled after-cooler
  2. Equipment

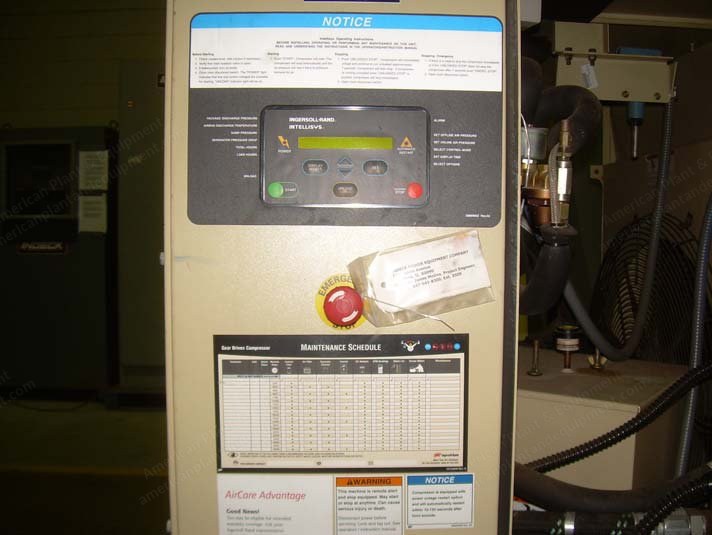

    1. Control panel tied to a microprocessor
    2. Control panel includes five display standards, four adjustable operating parameters
    3. Upper range modulation
    4. SSR EP-100 rotary screw air compressor
    5. NEMA 4
    6. 460V totally enclosed fan cooled star-delta motor/starter
    7. Air cooled aftercooler
    8. Intellisys controller
    9. 3 micron air filters
    10. Modulation control
    11. Ultra coolant
  3. Dimensions And Weight
    1. 64 in (1625 mm) length x 67 in (1700 mm) width x 67 in (1700 mm) height
    2. 2,900 pounds
  4. Technical Specifications
    1. Capacity: 434 cfm @ 125 psig
    2. Maximum operating pressure: 128 psig
    3. Outlet size: 2.0 in NPT
    4. Package amp draw table: 200/3/60 - 306.3 amps, 230/3/60 - 265.9 amps, 460/3/60 - 133.0 amps, 575/3/60 - 106.4 amps
    5. Sound level per CAGI-Pneurop PN2CPTC2: standard enclosure 85 dBA, low sound enclosure 75 dBA
    6. Aftercooler CTD: 15 °F
    7. Fan air flow: 7,300 cfm
  5. Condition And Usage
    1. 1308 hours and 356 load hours
    2. Used - not rebuilt machine
