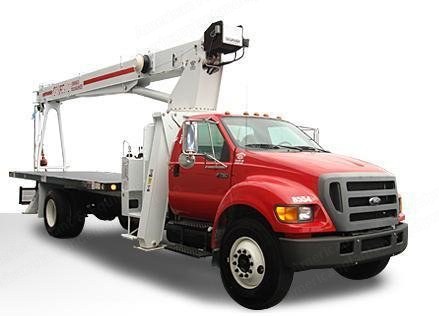

Boom Trucks, 18 Ton Capacity, 120 ft Tip Height, 3-Section Hydraulic Boom

Boom Trucks, 18 Ton Capacity, 120 ft Tip Height, 3-Section Hydraulic Boom

Description

  1. Boom Truck A - 18 Ton Capacity, Up To 120 Foot (36 Meter) Tip Height
    1. Three-stage hydraulic boom, a smaller outrigger footprint, and up to a 120 foot (36 meter) tip height.
    2. This is the biggest boom truck that can be mounted on a single-axle truck, which allows it to take advantage of a lighter gross vehicle weight.
    3. This mini-giant is perfect for residential job sites and anywhere else where space and general weight is a concern.
    4. An ultra-light, ultra-strong, four-sided, three section boom and internal ATB wire allows this truck to maneuver into the most unyielding of trees, making it a favorite among arborists.
    5. 5 ft. radius capacity: 18 ton
    6. Main boom tip height: 80 ft.
    7. Optional jib: 40 ft. two-section
    8. Total tip height: 120 ft.
    9. Boom type: 3 section full proportional hydraulic
    10. Winch: 2 speed 220 f.p.m.
    11. Cable: 9/16” diameter
    12. Outriggers: (4) hydraulic
    13. Overload protection: Altec LMAP overload/anti-two block protection with operators display monitor, internal ATB wire.
    14. Body: 20’
    15. Load chart: yes
    16. Hour meter: included
    17. Hydraulic pump sections: 3
    18. Boom rest: removable with integrated grab handles
  2. Boom Truck B - 18 Ton Capacity, Up To 120 Foot (36 Meter) Tip Height
    1. Three-stage hydraulic boom, a smaller outrigger footprint, and up to a 120 foot (36 meter) tip height.
    2. This is one of the largest boom trucks that can be mounted on a single-axle truck, which allows it to take advantage of a lighter gross vehicle weight.
    3. The lighter GVW makes this crane ideal for residential job sites and anywhere else that space and overall weight is a concern.
    4. An ultra-light, ultra-strong, five-sided, three-section boom allows this truck to maneuver into the tightest trees, making it a favorite among arborists.
    5. 5 ft. radius capacity: 18 ton
    6. Main boom tip height: 80 ft.
    7. Optional jib: 40 ft. two-section
    8. Total tip height: 120 ft.
    9. Boom type: 3 section full proportional hydraulic patented 5 sided "keel" boom design
    10. Winch: 2 speed 220 f.p.m.
    11. Cable: 9/16” diameter
    12. Outriggers: (4) hydraulic
    13. Overload protection: Greer MG-586 full overload/anti-two-block protection with operators display monitor
    14. Body: 20’
    15. Load chart: yes
    16. Hour meter: included
    17. Hydraulic pump sections: 3
    18. Boom rest: removable with integrated grab handles
  3. Boom Truck C - 23.5 Ton Capacity, Up To 146 Foot (44 Meter) Tip Height
    1. Five-sided keeled boom, sub frame and outrigger system.
    2. Out and down rear outriggers, and an enhanced load moment indicator.
    3. Its invariable service makes it one of the most versatile boom trucks.
    4. 5 ft. radius capacity: 23.5 ton
    5. Main boom tip height: 102 ft.
    6. Optional jib: 44 ft. two-section
    7. Total tip height: 146 ft.
    8. Boom type: 4 section full proportional hydraulic patented 5 sided "keel" boom design
    9. Winch: 2 speed 220 f.p.m.
    10. Cable: 9/16” diameter
    11. Outriggers: (4) hydraulic w/ out-down rears
    12. Overload protection: Greer MG-586 full overload/anti-two-block protection with operators display monitor
    13. Body: 21’ heavy duty
    14. Load chart: yes
    15. Hour meter: included
    16. Hydraulic pump sections: 3
    17. Boom rest: removable with integrated grab handles
  4. Boom Truck D - 25 Ton Capacity, Up To 146 Foot (44 Meter) Tip Height
    1. In the industry, this truck is a pure workhorse.
    2. Built on the 23.5 ton platform, the 25 ton is a modern version with an expanded load chart, more versatility, and an enhanced load moment indicator, making this boom truck the best in its class.
    3. 5 ft. radius capacity: 25 ton
    4. Main boom tip height: 102 ft.
    5. Optional jib: 44 ft two-section
    6. Total tip height: 146 ft.
    7. Boom type: 4 section full proportional hydraulic patented 5 sided "keel" boom design
    8. Winch: 2 speed 220 f.p.m.
    9. Cable: 9/16” diameter
    10. Outriggers: (4) hydraulic w/ out-down rears
    11. Overload protection: Greer MG-586 full overload/anti-two-block protection with operators display monitor
    12. Body: 21’ heavy duty
    13. Load chart: yes
    14. Hour meter: included
    15. Hydraulic pump sections: 3
    16. Boom rest: removable with integrated grab handles
  5. Boom Truck E - 26 Ton Capacity, Up To 163 Foot (49 Meter) Tip Height
    1. Featuring a full-offset lattice jib for maximizing reach while increasing jib capacity.
    2. Included is the newest LMI system with generation 2 operators display.
    3. Completely redesigned for this model year, every aspect of the truck has the operator in mind.
    4. Everything down to the lifting geometry, outrigger stance, and "step around" clearance from the operators console to the bed has been refined to allow easy access and comfortable operation.
    5. Features the best load chart yet, making this new model a sure-fire winner, and a base for all boom trucks to follow.
    6. 5 ft. radius: 26 tons
    7. Main boom tip height: 116 ft.
    8. Optional jib: 47 ft. offsetable lattice
    9. Total tip height: 163 ft.
    10. Boom type: 4 section
    11. Winch: 2 speed
    12. Cable: 9/16" x 350' EEIPS
    13. Outriggers: 4 hydraulic front splayed and out and down rears
    14. Overload protection: LMI w/ overload protection and display monitor
    15. Body: HD 22 ft.
    16. Load chart: yes
    17. Hour meter: included
    18. Hydraulic pump sections: 3
    19. Boom rest: removable with integrated grab handles
