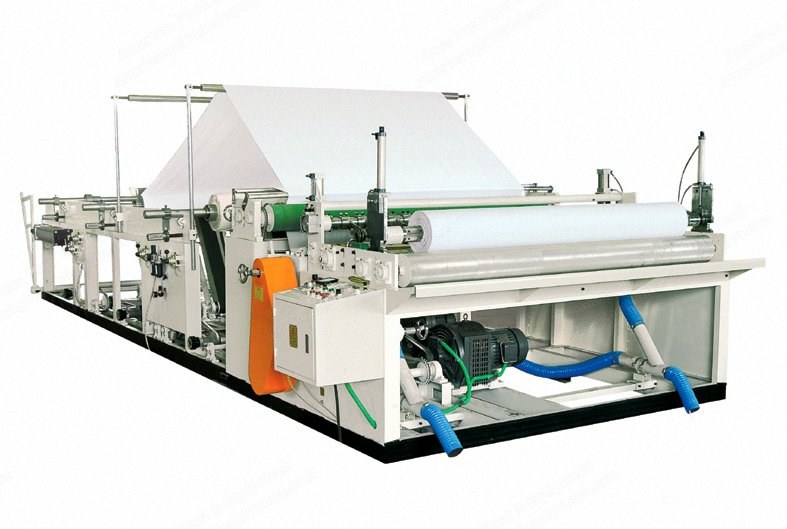

NovaStar, SR149, Jumbo Roll Slitter and Rewinder, 2800mm Working Width, 1800mm Max Roll Width, 1200mm Max Roll Diameter (New)

NovaStar, SR149, Jumbo Roll Slitter and Rewinder, 2800mm Working Width, 1800mm Max Roll Width, 1200mm Max Roll Diameter

Description

  1. Overview
    1. Power supply: 380 V / 50 Hz or 440 V / 60 Hz
    2. Motor: 6.5 kW
    3. Stepless speed regulator
  2. Specifications
    1. Jumbo roll: 1800 mm wide x 1200 mm diameter, 13 to 22 g/mm
    2. Finished roll diameter: 90 to 300 mm (degree of tightness adjustable)
    3. Raw material diameter: 76 mm
    4. Perforating pitch: 90 to 160 mm
    5. Product speed: 80 to 120 m/min
    6. Rewinding of finished roll: by air-full shaft
    7. Embossing roller: point to point embossing
    8. Bottom embossing roller: paper roller
  3. Dimensions and Weight
    1. Machine size: 3800 x 2700 x 1200 mm
    2. Weight of machine: 1600 kg
