Fabrics length in the drying chambers: 12.6 meters (two chambers)
If you add one chamber, add 6.3 meters
Heating dimension of each heat exchanger: 220 m²
Heating method: thermal oil (consumption 0.15-0.17 million kcal/h per chamber)
2 drying chambers
3 pass
3 zones
Flat fold at exit
Max evaporation capacity: 110 to 150 kg/h per chamber
Specifications
Dimension (L x W x H): 8100 mm x 4700 mm x 3800 mm
When one chamber is added, length increases by 2100 mm
Total weight: 15 tons (add one chamber, weight increase 5 tons)
Power: 65 kW; if a chamber is added, increases 22 kW
Components And Features
Infeed box
Overfeeding rough rubber roller
Worm gear boxes
Pneumatic tension device
2 sets of 11 kW motors
Motor has high temperature resistant roller bearings
2 sets of heat resistant centrifugal fans with each chamber
Each chamber includes a high heat exchanger
Fabric exit section includes plaiting (flat folders) device and exit device
Oil circulation heat exchangers
Control cabinet
The overfeeding movement is controlled by inverter
The conveyor belt has automatic pneumatic tightening; the tension is constant; when the machine stops, the web belt relaxes automatically
Each conveyor belt is controlled by separate inverter; speed is adjustable; can adjust the fabric loop any time

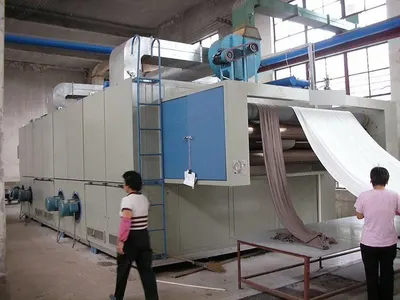

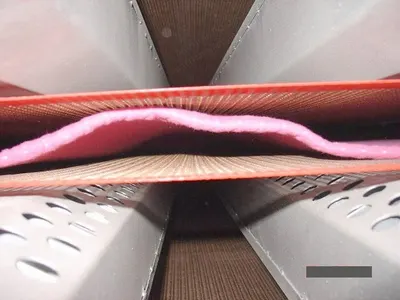

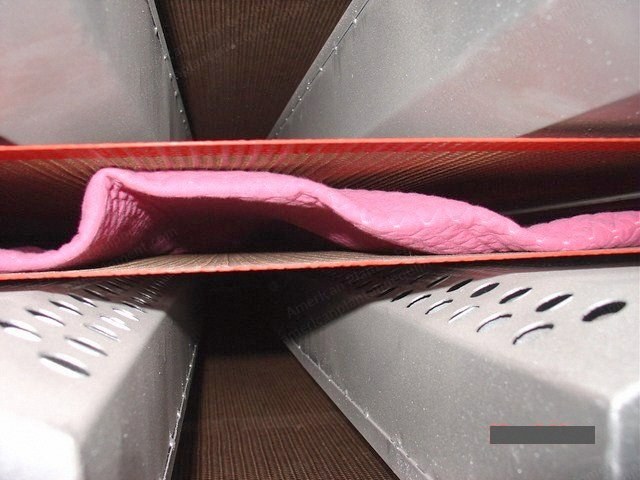

The structure of the nozzle is a copy of Krantz
The temperature controller is Honeywell brand
Burner brand is Riello of Italy
Each drying chamber has two layers of air filters net; the filter mesh is 40 mesh and made of stainless steel
The machine frame is made of carbon steel square pipe 10#
Inside it is filled with temperature insulated material, which reduces the loss of energy
The oven has insulated panels in all four sides of the drying chambers; the thickness of the panel is 110 mm, filled with super alumina silicate heat resistant material; additionally, P type high temperature resistant silicon rubber seal strip is used in all joints, which decreases heat loss
The conveyor belt for each layer is driven by an individual motor
Each motor is controlled by one inverter; the speed of each conveyor layer belt can be adjusted individually
The belt is Teflon make and it resists high temperature above 260 °C
In all three drying chambers there is a moisture exhausting system; the volume is controlled by an inverter
Electric Control
The electric control program allows controls of all parameters; the blowers starting in sequence system, faulty fabric protection system, emergency cooling system, reversing system, etc.
Electric components are Taiwan Delta inverter, and France Schneider low voltage apparatus
Temperature controller brand is Honeywell (American, ±3 °C)
