NovaStar, QL153, Computerized Chain Stitch Multineedle Quilter with Panel Cutter, New, 2450mm Quilting Width, 1000 RPM (New)

NovaStar, QL153, Computerized Chain Stitch Multineedle Quilter with Panel Cutter, New, 2450mm Quilting Width, 1000 RPM

Description

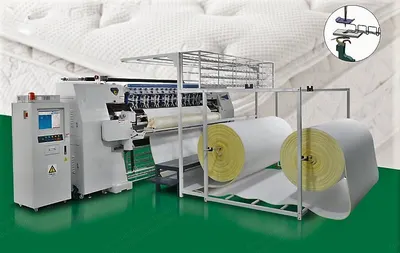

  1. Computerized Chain Stitch Multi-Needle Quilter
    1. Quilting width: 2450mm (96 inches)
    2. Capacity: 60 to 230 meters per hour (up to 250 yards per hour)
    3. Stitch length: 3 to 7mm
    4. Quilting thickness: ≤80mm
    5. Needle bar distance: 1 x 3 x 6
    6. Needle distance sideways: 25.4mm (one inch)
    7. X-axis movement displacement: 304.8mm (12 inches)
    8. Needle type: 24/180, 23/160, 22/140, 21/130
    9. Main shaft speed: 300 to 1000 rpm
    10. Voltage: 380V/50Hz, 220V/60Hz, 3-phase
    11. Power: 7 kW
    12. Dimensions: 5400 x 1650 x 2050mm
    13. Weight: 4000 kg
    14. Controls based on Windows, CAD drawing
    15. Continuous patterns and tack & jump patterns (360° and 180°) are available
    16. Delta VFD (variable frequency driver) drives main shaft (Z shaft)

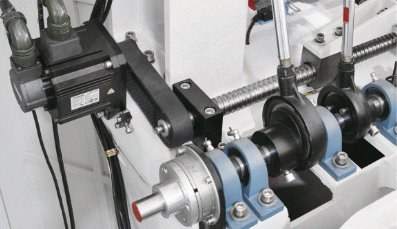

    17. Panasonic servo driver and motor control the saddle (X shaft) and roller (Y shaft)
    18. Automatic stop when up or bottom thread is broken
    19. Both up and down safety infrared protection
  2. Computerized Panel Cutter
    1. Cutting length: 600 to 2100mm or unlimited (24 inches to 82.5 inches)
    2. Cutting width: 2600 to 3300mm (102 inches to 130 inches)
    3. Slitting width: 100mm (4 inches)
    4. Thickness: ≤50mm (2 inches)
    5. Speed: 10 meters per minute
    6. Power: 3.2 kW
    7. Air pressure: 0.4 to 0.8 MPa
    8. Dimensions: 3400 x 2300 x 2300mm
    9. Weight: 950 kg
    10. 7 inch touch screen provides easy operation
    11. 2 operating modes which enable the machine to cut different sizes of materials (photoelectric sensor mode and encoder mode)
    12. Double blade design ensures edge cutting precision
    13. Can be used with a quilter or standalone
