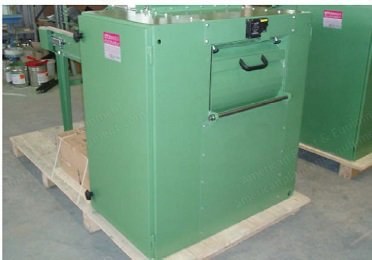

Josef Stummer, STU-1550, Fine Opener, 1500mm Working Width, 900 kg/h Capacity (New)

Josef Stummer, STU-1550, Fine Opener, 1500mm Working Width, 900 kg/h Capacity

Description

  1. Overview
    1. Fine opener designed for use with a feeding machine, capable of processing up to 900 kg/h depending on the upstream equipment.
    2. High efficiency affects the opening degree because the speed of the opening roller is limited; lower feeding yields better opening due to a longer combing process.
    3. Opening degree remains sufficient for an airlay line.
    4. Compatible with airlay lines such as Laroche, DOA, and similar brands.
  2. Specifications
    1. Design: Equipped with 2 roll wired feed roller.
    2. Opening roller: Pined design.
    3. Feed table: 1500 mm width, approximately 1300 mm long.
    4. Working width: 1500 mm.
    5. Speed opening roller: 2,070 rpm.
    6. Voltage single phase: 230 V.
    7. Voltage 3 phases: 400 / 692 V, 50 Hz.
    8. Catch box: Without.
    9. Power installed: 11.55 kW.
  3. Control Panel
    1. Control panel for fine opener: Feed rollers adjustable to your requirement.
  4. Condition
    1. Includes switch cabinet.
    2. Price without switch cabinet is available upon request.
    1. Please send a sample of the used fiber in an envelope for an assessment.
