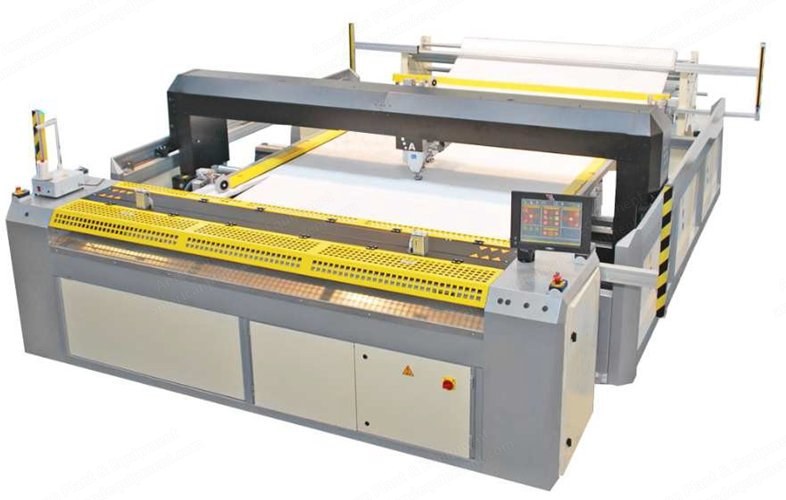

NovaStar, VT 4002, Close Pattern Quilting Machine, 2200x2200mm Sewing Area, 1 Head (New)

NovaStar, VT 4002, Close Pattern Quilting Machine, 2200x2200mm Sewing Area, 1 Head

Description

  1. General Specifications
    1. Machine size: 4615mm x 3873mm
    2. Sewing area (X x Y): 2200mm x 2200mm (changeable under customer request)
    3. Maximum speed: up to 3000 p.p.m.
    4. Stitch length: 1 to 6 mm
    5. Max. speed sewing: 18 m/min
    6. Max. speed without sewing: 35 m/min
    7. Power supply: 480 V III + N + T
    8. Pneumatic: 6 bars
    9. Weight: 1650 kg
    10. Control of the sewing heads: servomotor (AMK)
    11. Main control: servomotor (AMK)
  2. Sewing Head
    1. Number of sewing heads: 1
    2. Sewing heads: Dürkopp Adler 867. XXL bobbin
    3. Thread break detector: yes
    4. Retainer: yes
    5. Head lubrication: system to avoid staining the fabrics
    6. Bobbin lubrication: automatic by sprayed oil
  3. User Interface
    1. Display: high resolution touch-screen
    2. Machine software: multi-lingual, Windows based
    3. Design software: advanced design software, CNC conversor
    4. Remote diagnosis: yes
    5. Reporting: yes
    6. Network connectivity: yes
  4. Accessories
    1. Material feeder: 3 rollers on central bar with adjustable break
    2. Fabric roll: tub for one-man-operation
    3. Lower roll: tub for one-man-operation
    4. Cutting device: optional - block with two longitudinal blades and one transversal blade
    5. Tools: tool kit
    6. Bobbin winder: yes
