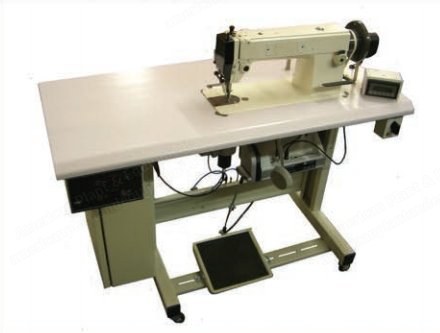

Description Overview Ultrasonic sewing machine bonds textiles together without thread using ultrasonic technology. Worldwide patent machine used in the underwear, sportswear, medical and outerwear markets. Unique design enables the operator to achieve curves with ease and operates almost as a sewing machine, requiring very little training. Handles stretch fabrics, coated and laminated, knits and fleece material, providing smooth uninterrupted seams. Seam is strengthened by applying a tape either to the outside or the underside of the seam. Intended for industrial uses only. Advantages Over Conventional Stitch Methods Provides a totally watertight seam. Seams are less bulky. Uses small seam allowance to create flatter seams. Improves comfort levels on next-to-skin garments. Power Supply Requirements Electrical: ~220 to 240 vac single phase 50hz 10 amp. Mains transients above 2kV will cause the machine to stop and will require manual resetting by the operator. Electrostatic discharges greater than 4kV can cause damage to electronic circuitry. Pneumatic: ~6 bar at 60 liters per minute. Dimensions Width (side to side): 1200mm. Depth (front to back): 540mm. Height: 1100mm. Weight: 130kg. Packing Details Dimensions (approx): 1310mm x 680mm x 1290mm. Gross weight: 225kg.
