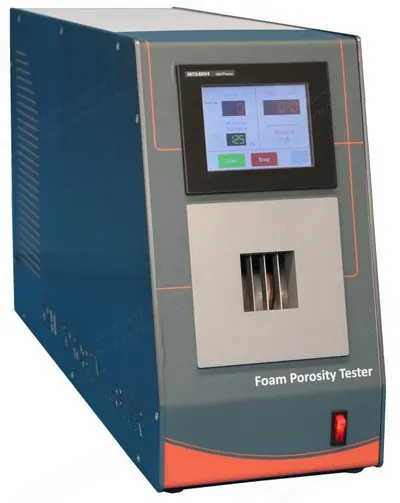

IDM, F0031, 2018, Automatic Foam Porosity Tester, 50x50x25mm Test Head (New)

IDM, F0031, 2018, Automatic Foam Porosity Tester, 50x50x25mm Test Head

Description

  1. Overview
    1. Automatic foam porosity tester for monitoring the porosity of flexible cellular polyurethane.
    2. Determines how easily air passes through a cellular structure.
    3. Airflow values may be used as an indirect measurement of certain cell structure characteristics.
    4. Made with reference to international standards for measurement of a flexible cellular test piece, 50 mm x 50 mm x 25 mm.
    5. Test piece is placed in a vacuum chamber cavity and a specified automatic constant differential air pressure is applied.
    6. Pa pressure can be digitally set on the display; once the FPT reaches the Pa automatically, the rate of airflow at the set Pa is locked and held on the flow display, automatically completing a test in seconds.
  2. Applications
    1. Flexible cellular polyurethane
    2. Visco foams
  3. Benefits
    1. Able to measure visco foam (memory foam)
    2. Fast automatic results
    3. Quick and simple process
    4. Useful for quality control
    5. Precise, repeatable test results
    6. Easy to use
    7. Accurate
    8. Reduction of rejects
  4. Features
    1. Touch screen operation
    2. Digital manometer: 0-500 Pa ± 1%
    3. Variable Pa range
    4. Automatic Pa control
    5. Automatic flow reading hold
    6. Selectable units: L/min, CF/min
    7. RS232 data output
    8. Different flow ranges available
    9. Test head area: 50 mm x 50 mm x 25 mm
  5. Dimensions
    1. Height: 375 mm
    2. Width: 200 mm
    3. Depth: 650 mm
    4. Weight: 22 kg

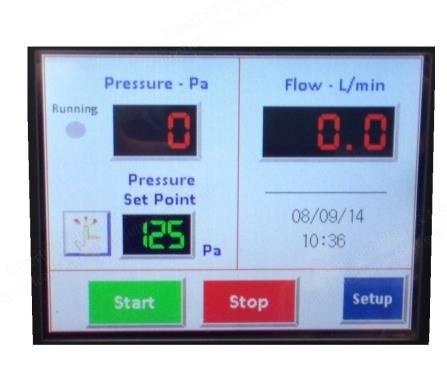

  6. Test Screen
    1. Features the setup, start and stop touch buttons for testing.
    2. Displays the pre-set Pa pressure and flow in L/min.
  7. Result Screen
    1. After a stable reading for 2 seconds, the test result screen will automatically be displayed showing results.
  8. Standards
    1. AS 2282.14
    2. ASTM D3574 - Test G
    3. ISO 7231
    4. BS EN ISO 7231
    5. DIN EN ISO 7231
    6. EN ISO 7231
    7. JIS K 6400
  9. Options
    1. Printer
    2. Electrical connections: 220/240 VAC @ 50 Hz or 110 VAC @ 60 Hz (please select instrument range upon order)
    3. Different flow ranges available: 0.2-20 L/min ± 2% FS, 2-200 L/min ± 1% FS, 5-500 L/min ± 1% FS (please select instrument range upon order)
