NovaStar, CW 1200, Tub Grinder, Dual Hammer Mill, 13 ft Flare, 2x 250 HP

NovaStar, CW 1200, Tub Grinder, Dual Hammer Mill, 13 ft Flare, 2x 250 HP

Description

  1. Overview
    1. List number: H-1363

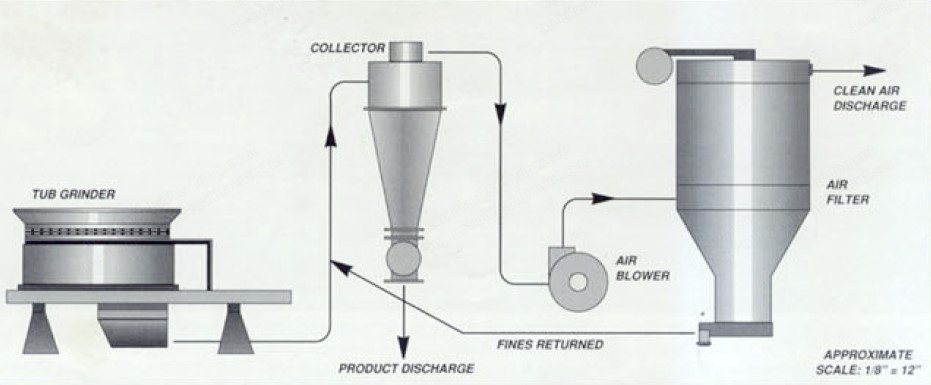

    2. Tub grinder with negative pneumatic conveying system and air filter
    3. Conveys ground product to desired
    4. Mechanical conveying equipment such as belt conveyors, screw conveyors or elevator legs may also be required
    5. Engineered and constructed for continuous duty grinding applications requiring tremendous concentration of grinding power
    6. Designed for tough grinding jobs
    7. For grinding materials such as alfalfa, forage, grain, paper, wood products, carpet foam, and other bulky, low-density products requiring a grinder of heavy, precise construction
  2. Specifications
    1. Heavy-duty stationary grinder frame with (8) each leg stands

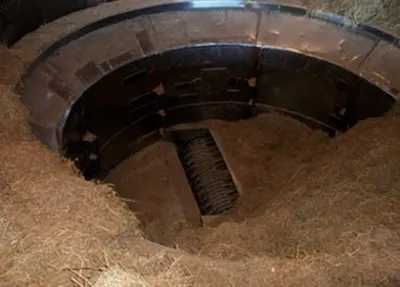

    2. (1) each tub with 13 ft. diameter flare and 11 foot diameter tub barrel constructed of 7 gauge carbon steel equipped with a continuous sprocket around the perimeter for chain drive
    3. (1) drive system for tub drive with variable speed and auto forward/reverse
    4. Hammer rod plates are to be 5/8” thick
    5. (2) each sets of (16) 1 ¼” hammer rods, heat treated
    6. (4) each sets of (2) screens with ¼” thick mats (specify hole size)
    7. (1) each discharge hopper chute with auger
    8. (1) each electric powered hydraulic system to be used for tub tilt
    9. Available with electric or diesel
