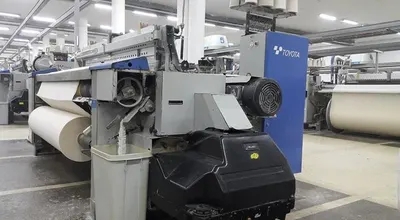

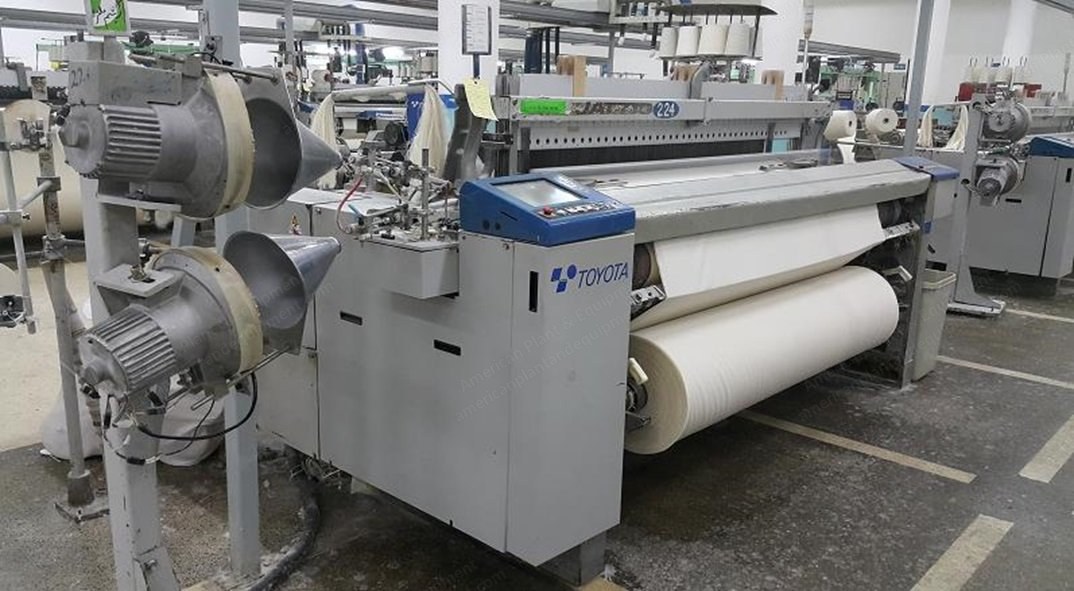

Toyota, JA2S-190TP-MF-T710, 2003, 1900mm Working Width, Tappet Airjet Loom, 2 Colors, Staubli 1761 A

Toyota, JA2S-190TP-MF-T710, 2003, 1900mm Working Width, Tappet Airjet Loom, 2 Colors, Staubli 1761 A

Description

  1. Overview
    1. Working width: 1900 mm
    2. Year: 2003
    3. Speed: 950 rpm
    4. Selvedge option: Leno
    5. Staubli 1761 A
    6. 2 colors
    7. Harness capacity: 7 shaft
  2. Special Features
    1. ESM (electronic selvedge motion)
    2. E. Reed system (air saving system) same as Toyota 810
  3. Included Accessories Per Loom
    1. Yarn beam: 1.5
    2. Cloth roll: 1.5
    3. Reeds: 1.5
    4. Heald frames: 7
    5. Heddles: 8000
    6. Droppers: 8000
    7. Cams: 6
    8. Repeat gear: 1
    9. Leno bobbin: 4
  4. Condition
    1. Running
    2. Quality: 20x16 / 128x60 63" 3/1 leno
    3. Rpm: 950
    4. Efficiency: 92%
    5. A-grade fabric: 99.5%
