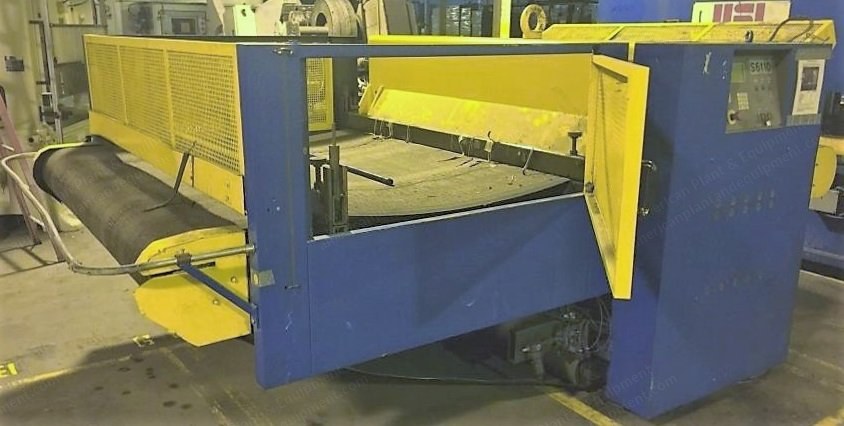

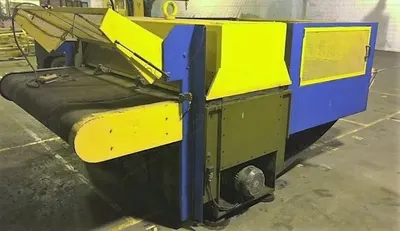

Atom, S6110 2BP, Full Beam Hydraulic Press, 110 Tons, 77x41in Cutting Area

Atom, S6110 2BP, Full Beam Hydraulic Press, 110 Tons, 77x41in Cutting Area Sold

Description

  1. Overview
    1. Full beam hydraulic press
    2. Make: Atom
    3. Model: S6110 2BP
  2. Specifications
    1. Maximum capacity: approximately 100 tons to 110 tons
    2. Cutting stroke: approximately 7.8 inches
    3. Maximum daylight: approximately 9 inches
    4. Bed area: 77 inches (right-left) x 152 inches (front-back) rolling belt feed system, 77 inches (right-left) x 41 inches (front-back) cutting area
    5. Ram area: 77 inches (right-left) x 41 inches (front-back)
    6. Speed: approximately 20 spm – 588 – 42 – 510 ipm, 251 – 17 – 216 mm/sec, 9.8 –.7 – 8.5 ips
    7. Distance floor to bed: 42.5 inches

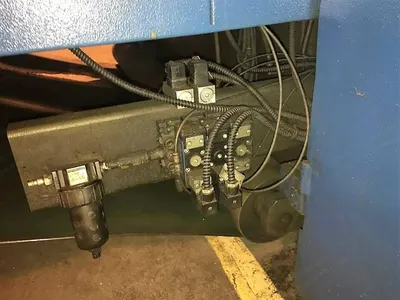

    8. Hydraulics: complete and built into press under bed
    9. Electrics: –
  3. Dimensions and weight
    1. Approximate dimensions: 67 inches high x 108 inches right-left x 166 inches front-back
    2. Approximate weight: 15,000 lbs
  4. Included equipment
    1. Pinch and grab feeding clamps and transport cutting belt
    2. Roll mode, sheet mode, tray mode, incremental tray mode
