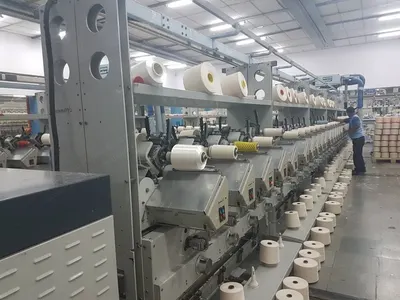

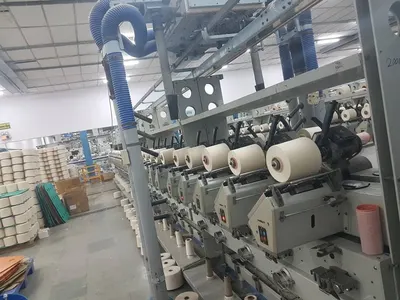

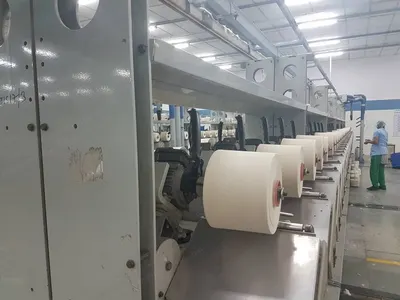

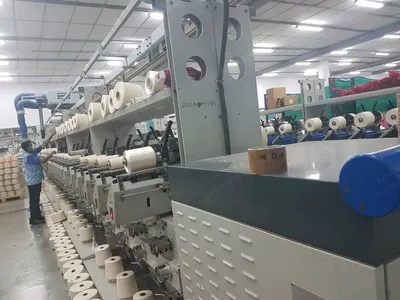

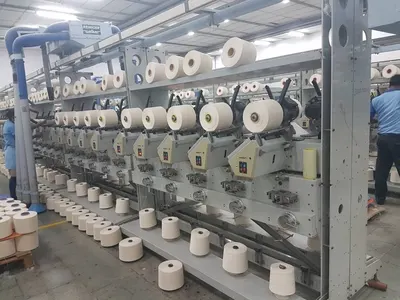

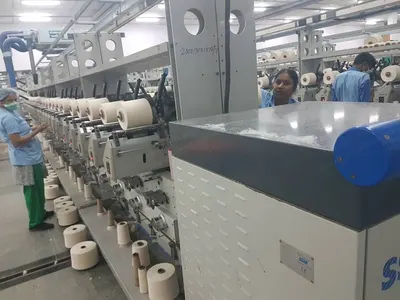

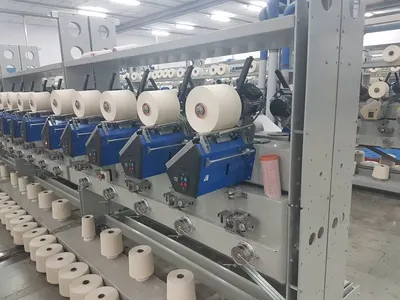

SSM, PS6plus-W DIGICONE preciflex, 2013, 60 Spindles, with OHTC, 150mm Traverse

SSM, PS6plus-W DIGICONE preciflex, 2013, 60 Spindles, with OHTC, 150mm Traverse

Description

  1. Overview
    1. High performance precision cross-wound package
    2. Make: SSM
    3. Model: PS6plus-W DIGICONE® preciflex™
    4. Number of spindles: 60
    5. Three machines year 2013
    6. One machine year 2017
  2. Specifications
    1. Material: Staple yarns
    2. Yarn count: 6/3, 6/2, 10/1, 20/2, 24/2, 13/1, 16/1 Ne
    3. Supply packages: up to 250 mm diameter
    4. Traverse length: 150 mm
    5. Take up package diameter: up to 250 mm
    6. Take up tubes: cylindrical / conical
    7. Type of application: dye packages
    8. Color: grey RAL 7038S
    9. Noise pollution: 80 dBA
  3. Execution
    1. 415 mm pitch, 5 winding spindles per section, single- or double-sided execution (maximum up to 60 spindles)
    2. Universal peg for supply package
    3. Micro-adjustable, mechanical slub-catcher per spindle
    4. Thread laying by counter-rotating blades for winding length 150 mm
    5. Precision or DIGICONE® winding system
    6. Tensiso™ unwinding tension control / balloon optimizing device
    7. Individual control and drive of winding speed by frequency inverter, mechanical speed 1600 m/min (practical winding speed depending upon quality of supply yarn / supply package and winding parameters)
    8. Positively driven overfeed device
    9. Pressure system for winding bracket for the production of dye packages (low density)
    10. Tube holders for one specific type of tube

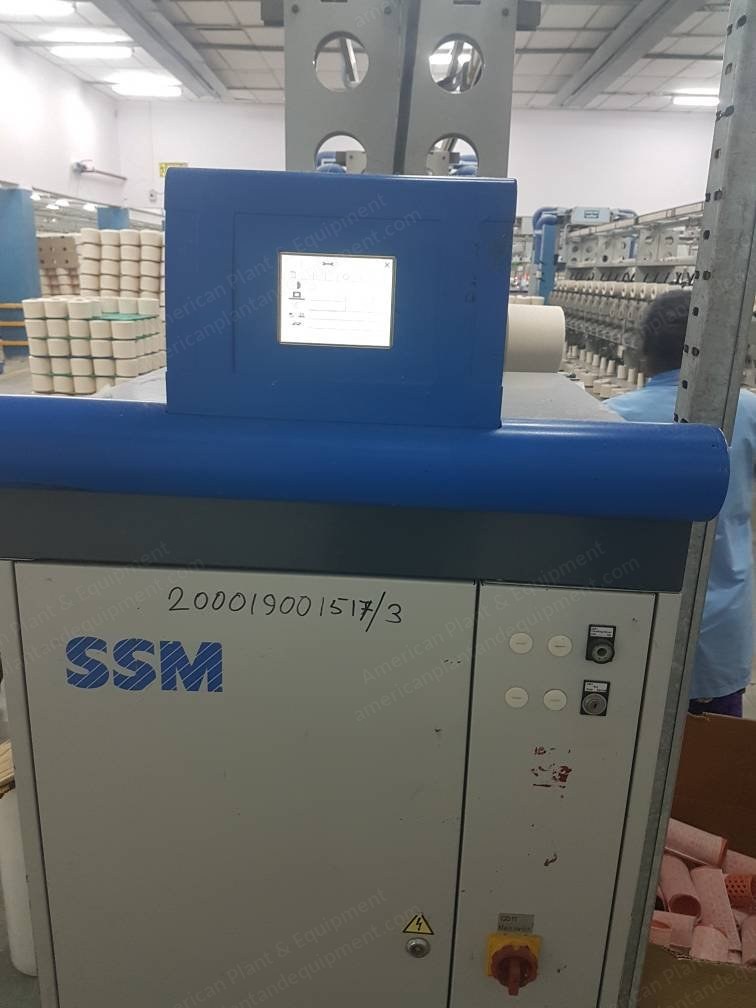

    11. Head stock with machine terminal with touch screen, pictogram based central input of winding parameters per machine or per spindle, with storage capability of up to 1,000 recipes of selected winding parameters
    12. Yarn sensor for automatic spindle stop in case of yarn break
    13. Disc tension device for staple yarns with electronically controlled tension force
    14. Individual spindle setting, controller and drive
    15. Electronic length measuring system per spindle
    16. Diameter measuring system and full package diameter stop per spindle
    17. Empty tube rack
    18. Slit yarn clearer
    19. Yarn splicers
    20. One set of tools
  4. Condition
    1. Excellent condition
    2. Current status: under production
  5. Quantity
    1. Quantity: 4
