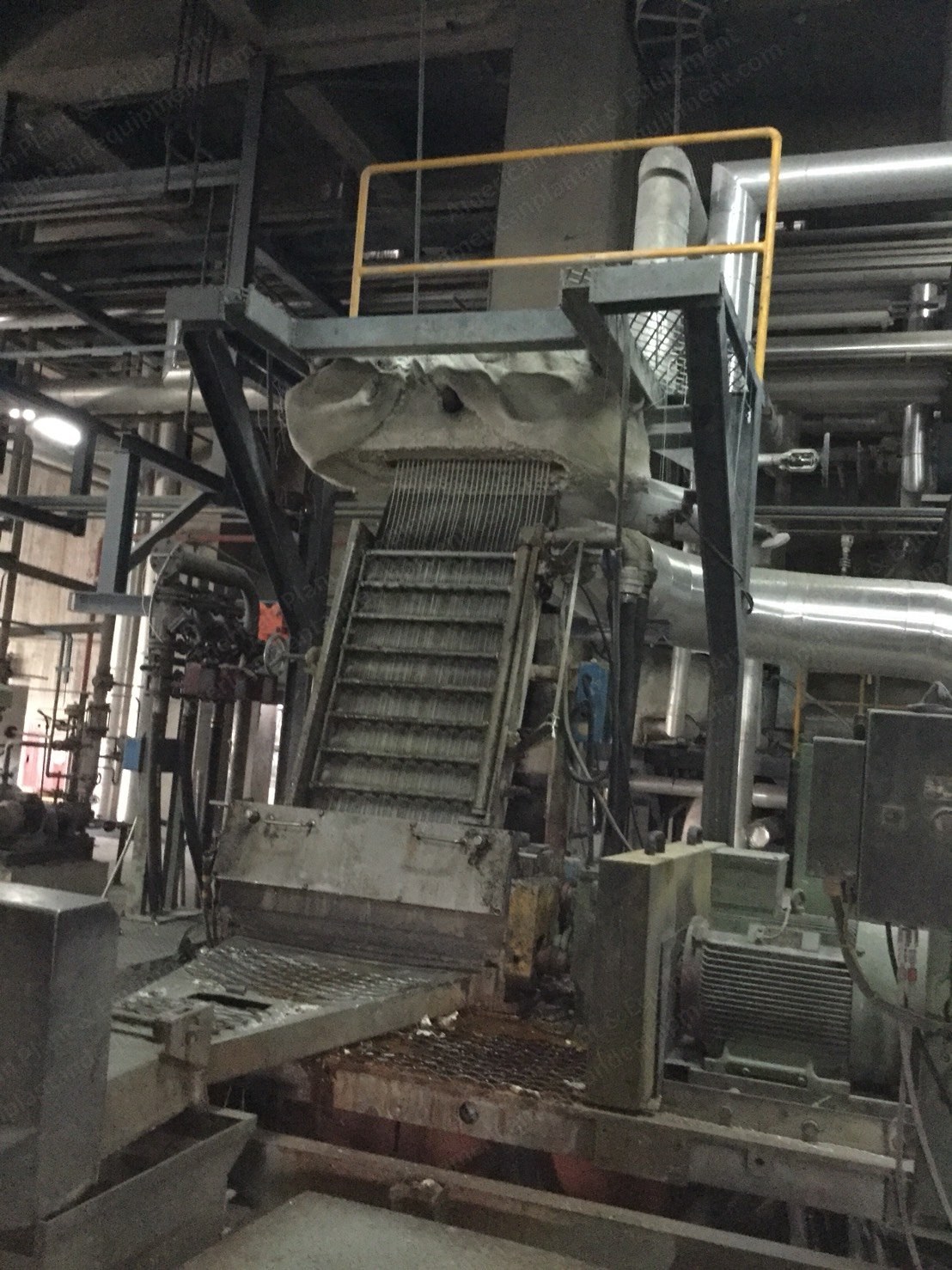

Zimmer, Polyester Plant, 1996, 200T Capacity, 3 Lines

Description

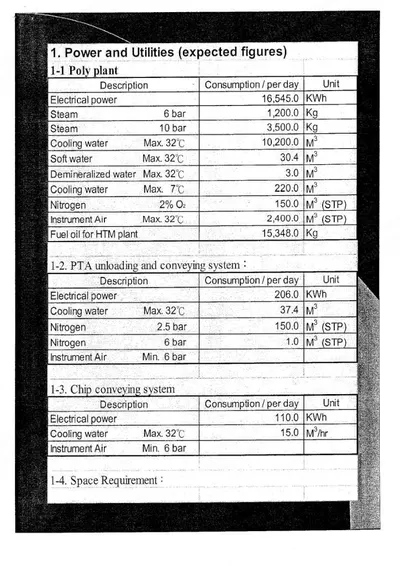

Power And Utilities
1. Electrical power: 16,545.0 kWh per day
2. Steam (6 bar): 1,200.0 kg per day
3. Steam (10 bar): 3,500.0 kg per day
4. Cooling water (max 32°C): 10,200.0 m³ per day
5. Soft water (max 32°C): 30.4 m³ per day
6. Demineralized water (max 32°C): 3.0 m³ per day
7. Cool water (max 7°C): 220.0 m³ per day
8. Nitrogen 2% O2: 150.0 m³ (STP) per day
9. Instrument air (max 32°C): 2,400 m³ (STP) per day
10. Fuel oil for HTM plant: 15,348.0 kg per day

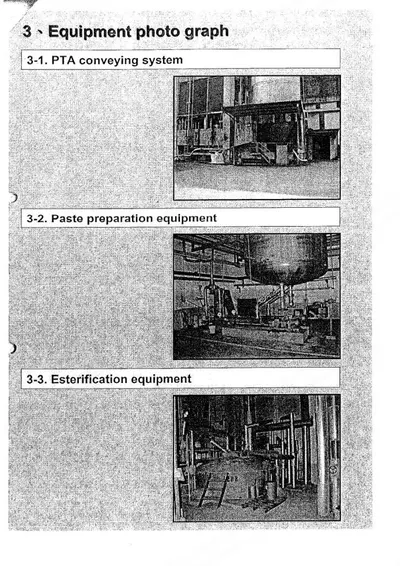

Pta Unloading And Conveying System
1. Electrical power: 206.0 kWh per day
2. Cooling water (max 32°C): 37.4 m³ per day
3. Nitrogen (2.5 bar): 150.0 m³ (STP) per day
4. Nitrogen (6 bar): 1.0 m³ (STP) per day
5. Instrument air (min. 6 bar)

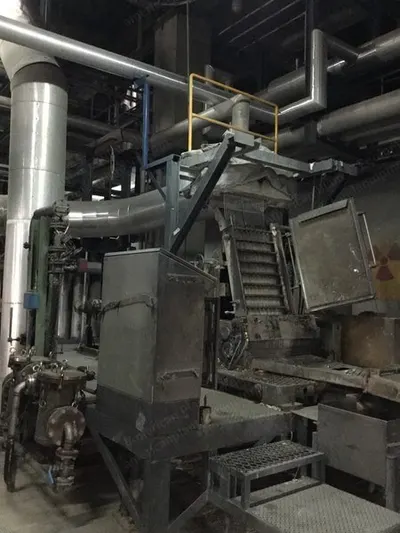

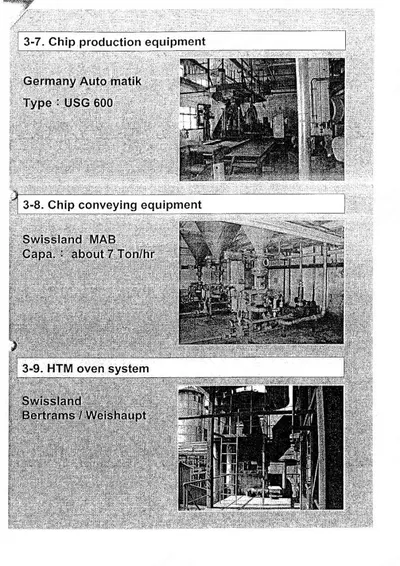

Chip Conveying System
1. Electrical power: 110.0 kWh per day
2. Cool water (max 32°C): 15.0 m³/hr
3. Instrument air (min. 6 bar)
4. Total of 3 lines
5. 1 line is running
6. 1 line stopped 5 years ago
7. 1 line stopped 2 years ago

Cooling Water Consumption per Day	10,200 m3
Electrical Power Consumption per Day	16,545 kWh
Fuel Oil for HTM Plant per Day	15,348 kg
Running Lines	1
Steam Consumption 10 Bar per Day	3,500 kg
Steam Consumption 6 Bar per Day	1,200 kg
Stopped Lines	2
