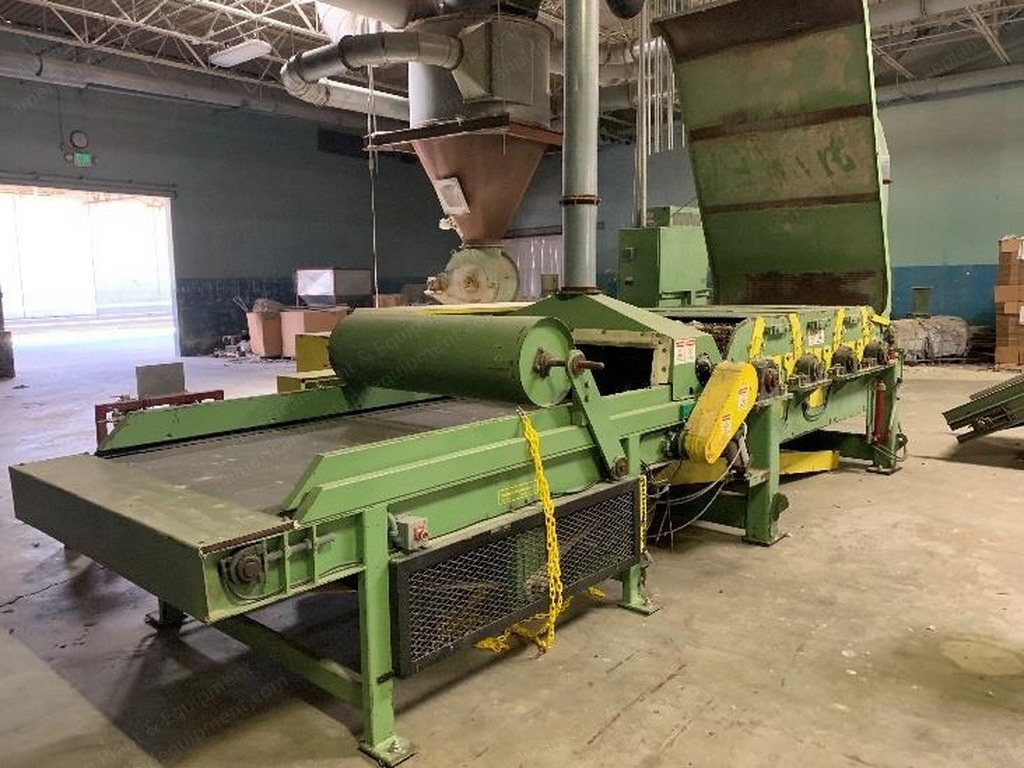

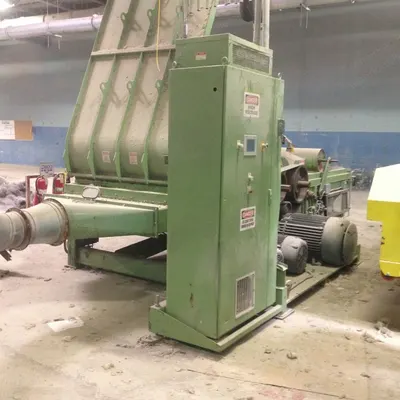

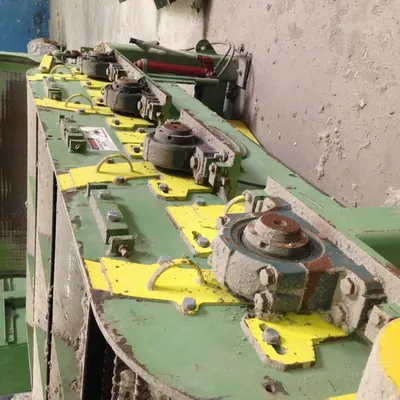

Southern Mechatronics, Heavy Duty Tearing Machine, 2008, 1460mm Working Width, 4 Cylinders, 200 HP Main Motor

Southern Mechatronics, Heavy Duty Tearing Machine, 2008, 1460mm Working Width, 4 Cylinders, 200 HP Main Motor Sold

Description

  1. Overview

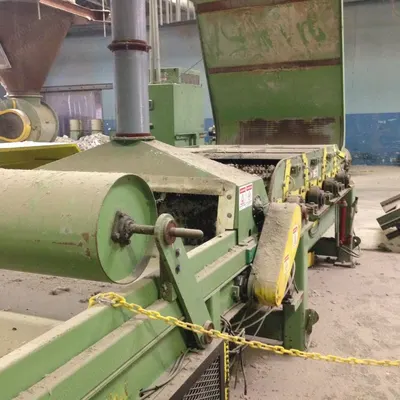

    1. Heavy duty tearing machine built especially for heavy fabrics
    2. Will handle any material from carpets, woven or knitted fabrics
    3. Year 2008
  2. Specifications
    1. Working width: 1460 mm / 57.5 inches

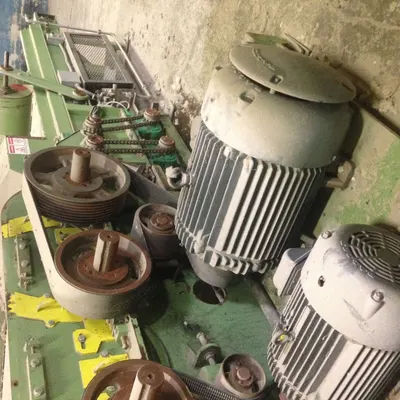

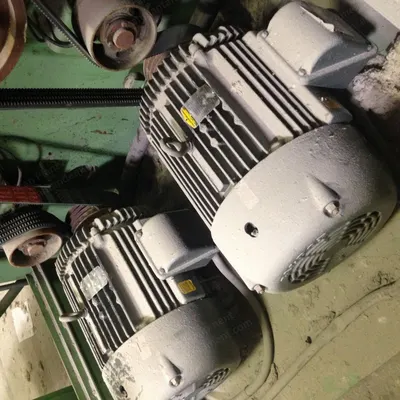

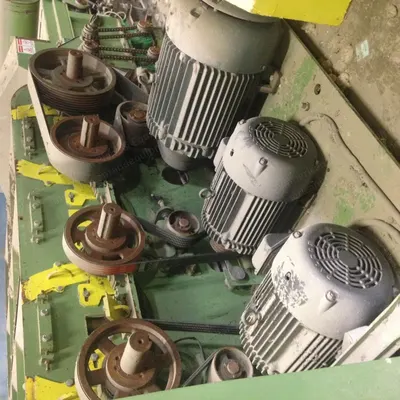

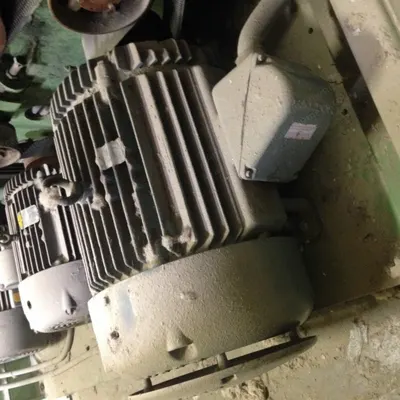

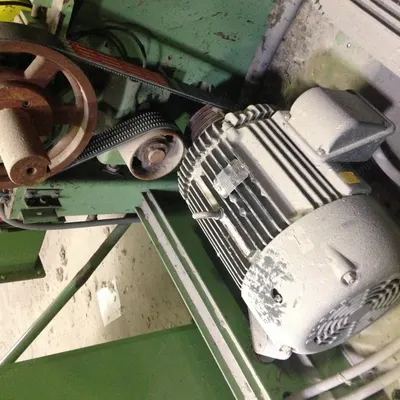

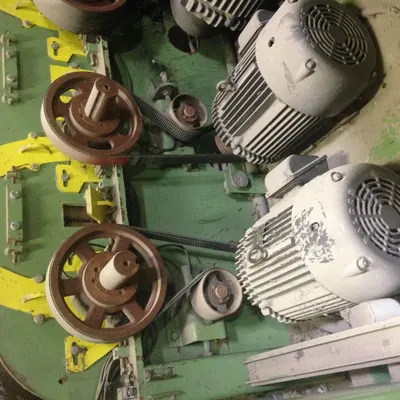

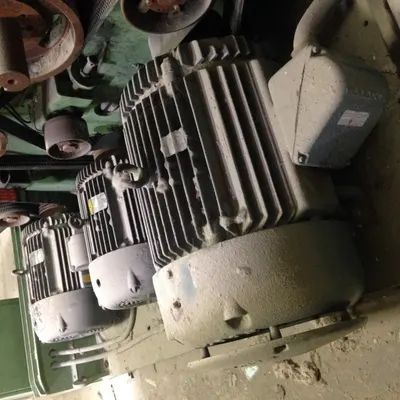

    2. Main motor: 200 hp / 575 volts / 1760 rpm
    3. First motor: 40 hp / 575 volts / 1760 rpm
    4. Second motor: 40 hp / 575 volts / 1760 rpm

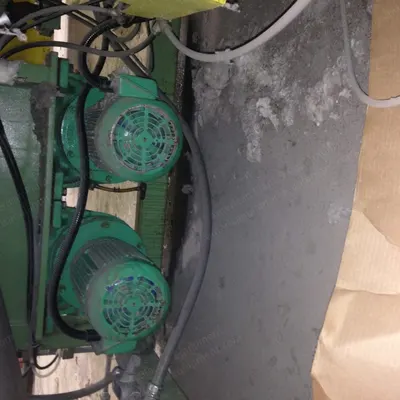

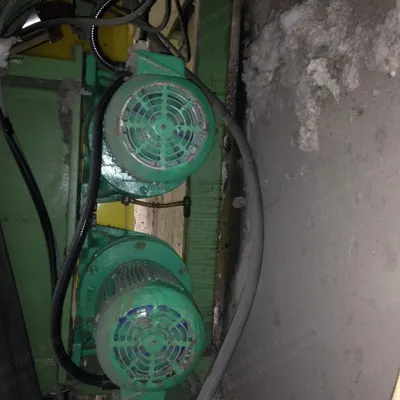

    5. One other motor for the feed apron
    6. One motor for the entry cylinder

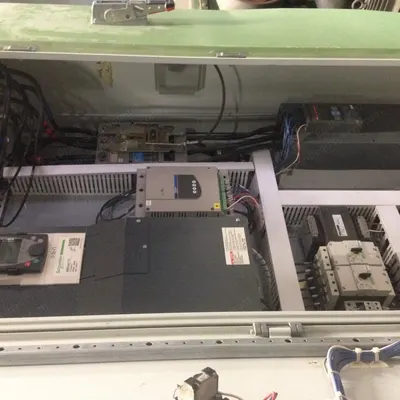

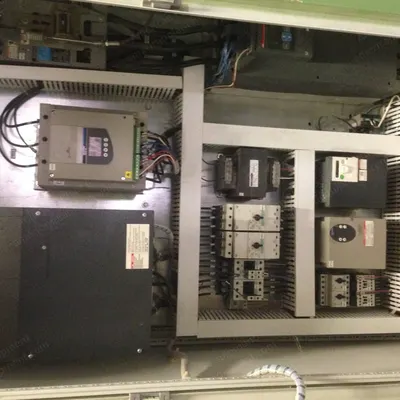

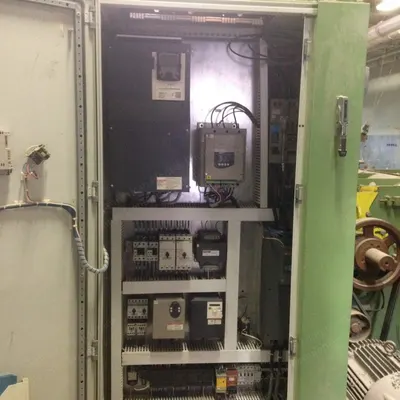

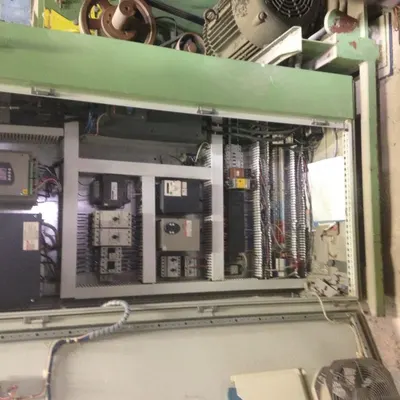

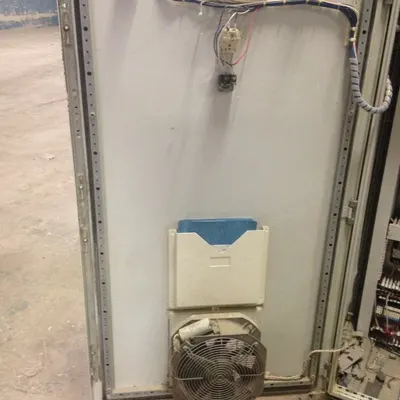

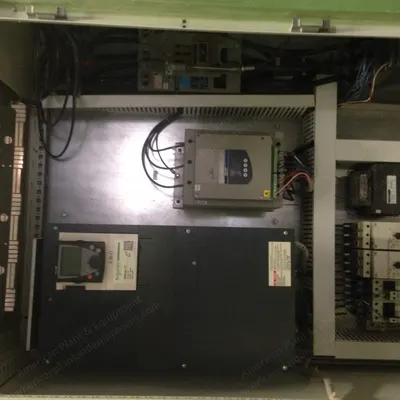

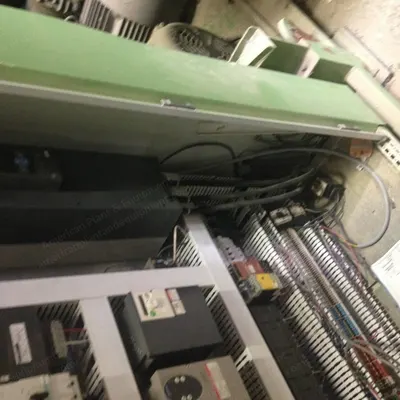

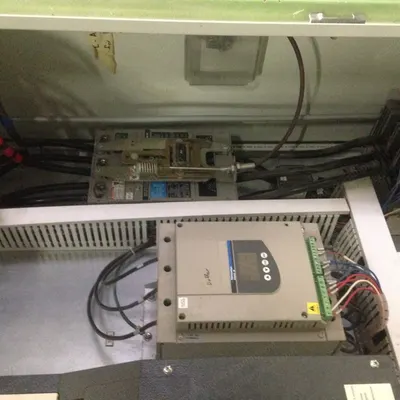

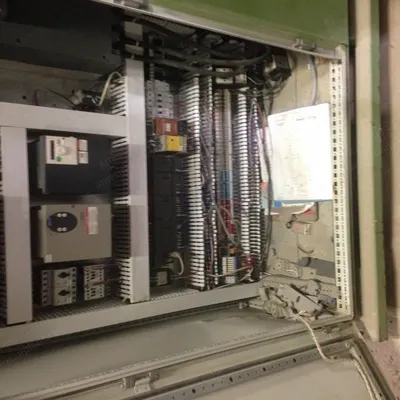

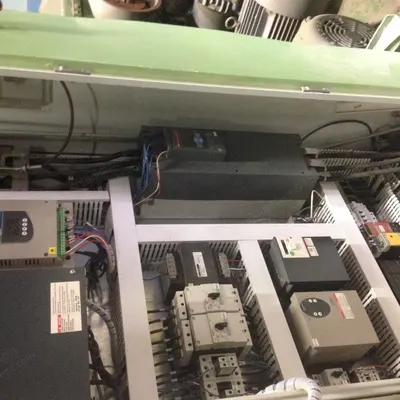

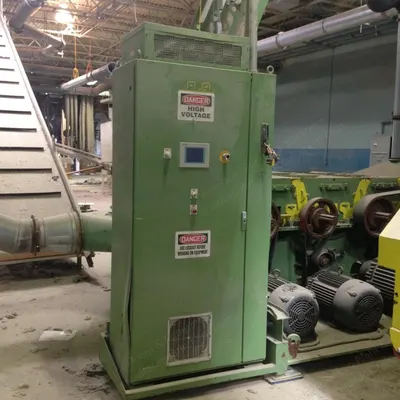

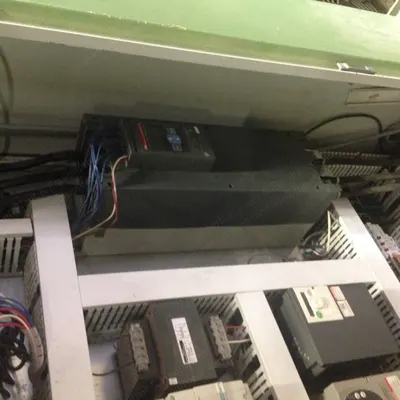

    7. Siemens digital panel
  3. Components

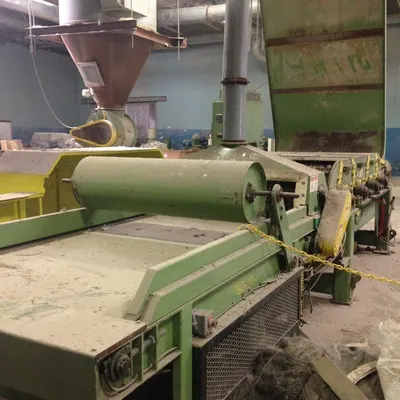

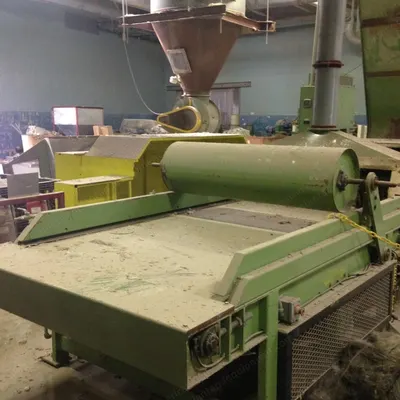

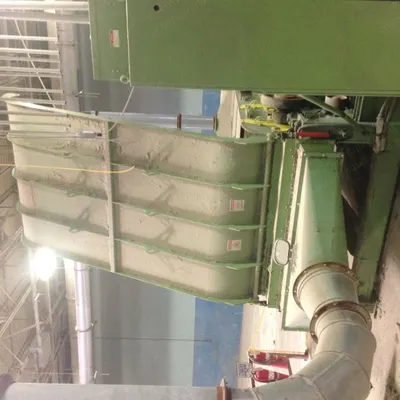

    1. One feed system (toothed rolls)
    2. One feed belt

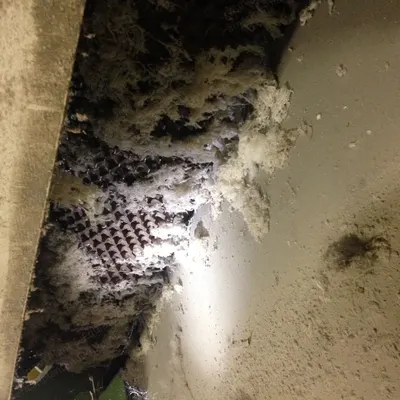

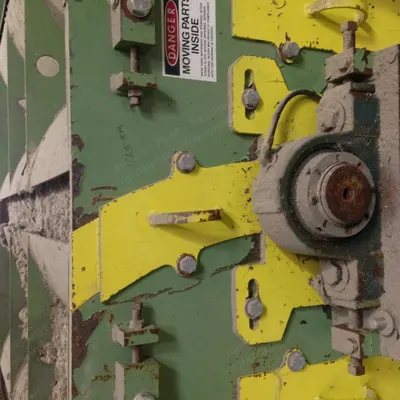

    3. One claw-toothed cylinder

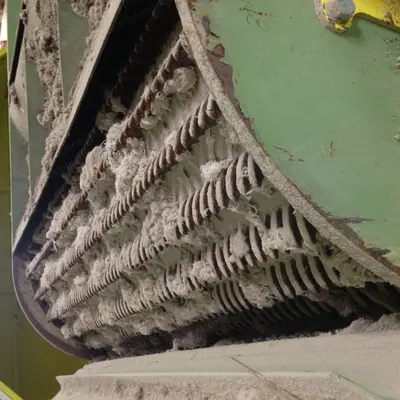

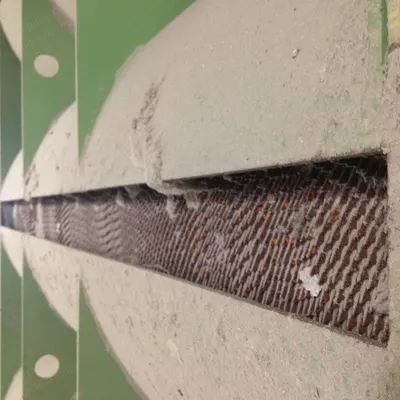

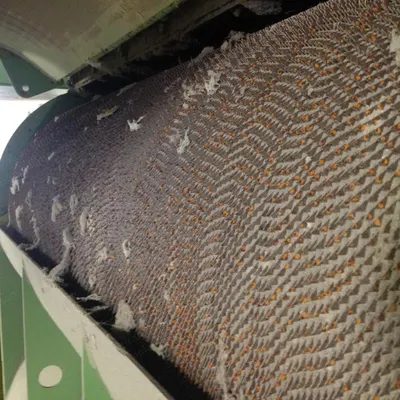

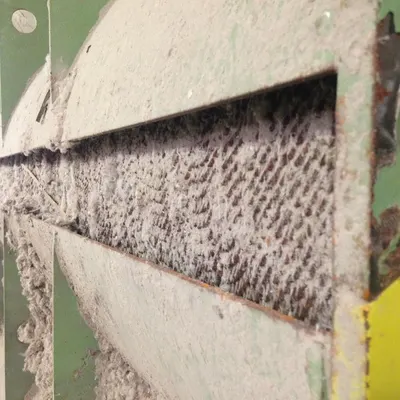

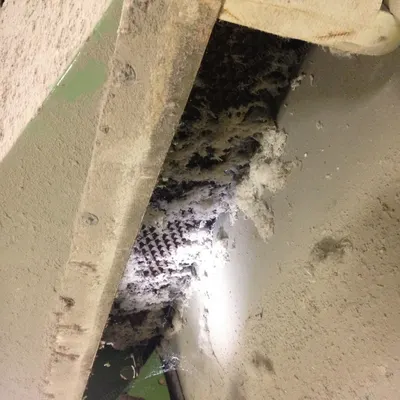

    4. Three wire-clothed cylinders

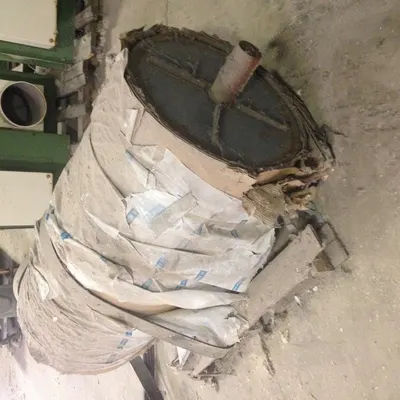

    5. One spare cylinder
  4. Performance
    1. Can do 2 ton per hour on carpet backing
  5. Condition
    1. Machine is complete and still at the plant
    2. Available immediately
