Kusters, Washing Line, 2005, 2000mm Working Width, Monforts Entrance, 16 Drying Cylinders

Kusters, Washing Line, 2005, 2000mm Working Width, Monforts Entrance, 16 Drying Cylinders

Description

  1. Overview
    1. Maximum fabric width: 2000 mm
    2. Year 2005
  2. Monforts Entrance

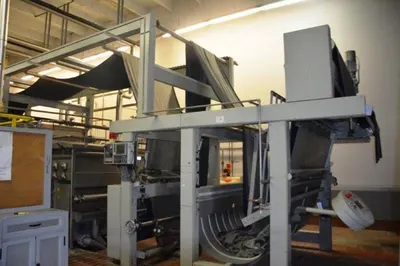

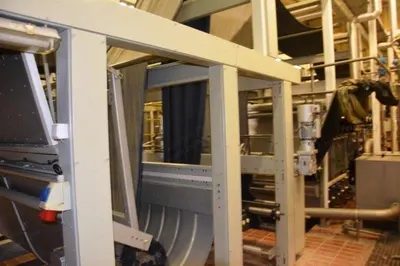

    1. Entrance frame with driven feed roller
    2. J-box fabric accumulator

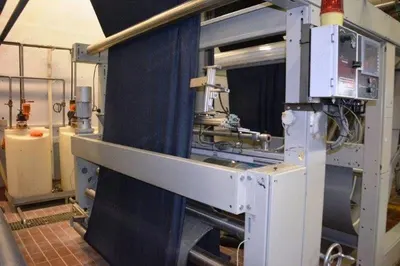

    3. 1 pair of Erhardt & Leimer KF10 fabric edge guiders

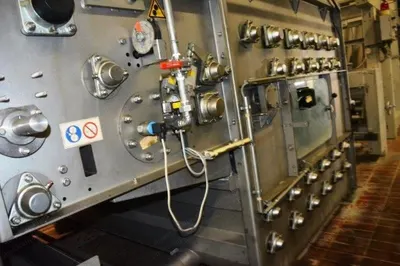

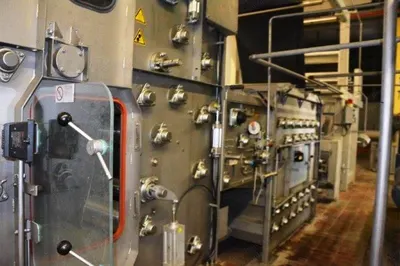

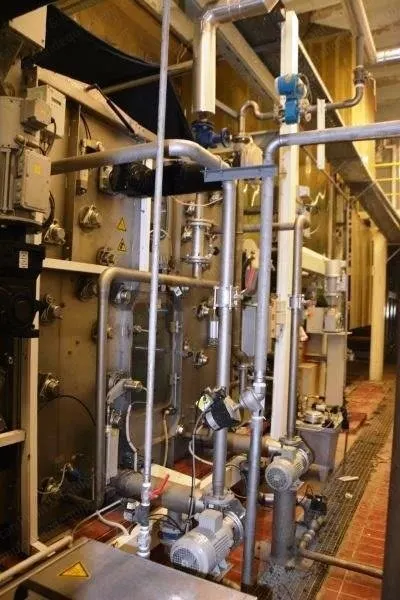

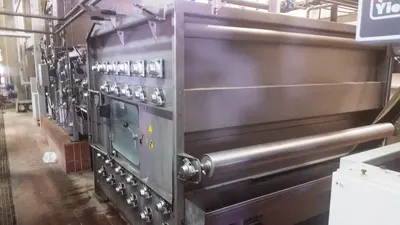

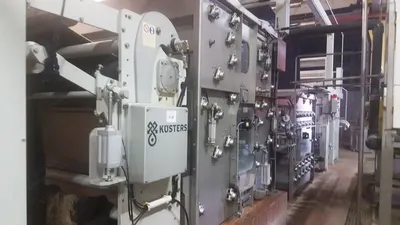

  3. Kusters Washing

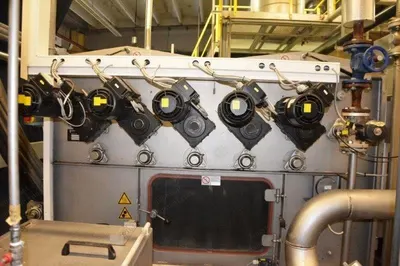

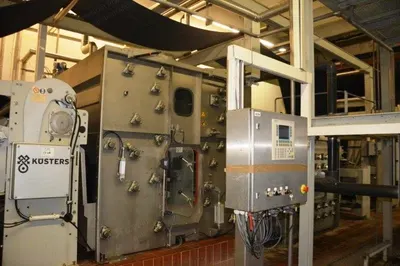

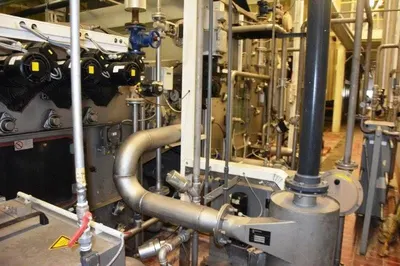

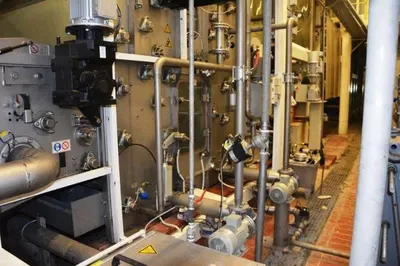

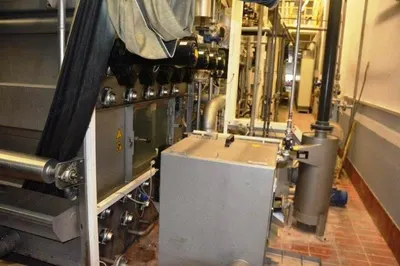

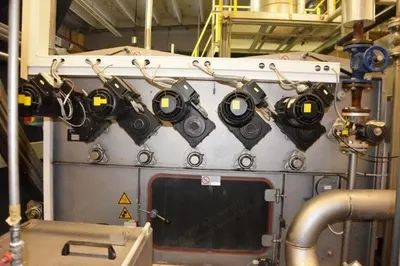

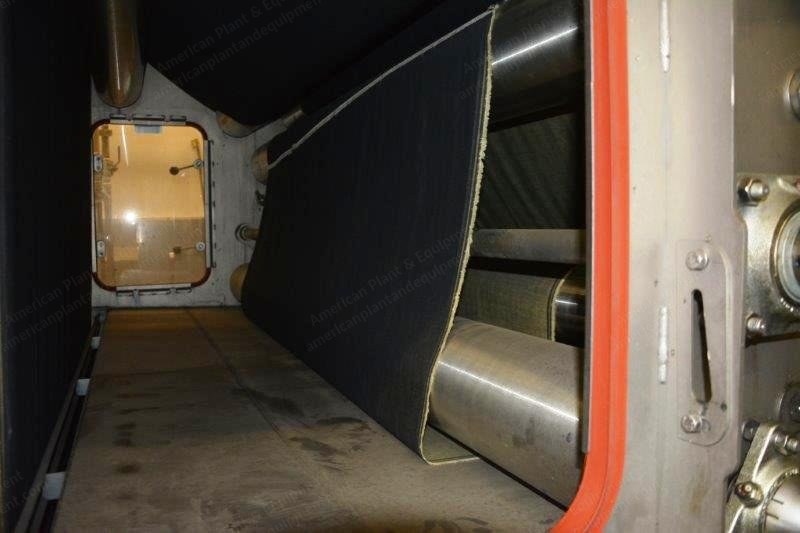

    1. Kusters Multi roller washing tank, type 836.76, cloth content approx 18 m, with filter

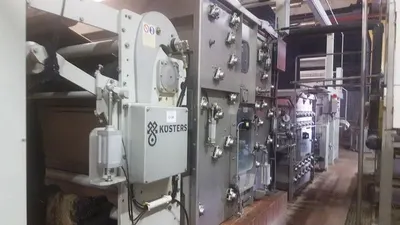

    2. Kusters Mangle type 222.50 with compensator
    3. Kusters Multi roller washing tank, type 836.74, turbo washing, approx 18 m cloth content
    4. Kusters Mangle type 222.50 with compensator
  4. Drying

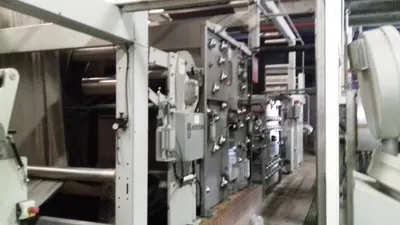

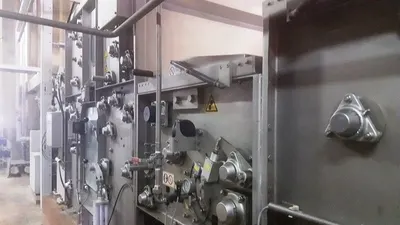

    1. 16 Wumag stainless steel, steam heated, drying cylinders, 940 mm dia
    2. Arranged in 2 stacks of 8
  5. Exit
    1. Driven feed roller to J-box
    2. One pair Erhardt & Leimer KF20 fabric edge guiders
    3. Surface driven A-frame batcher
