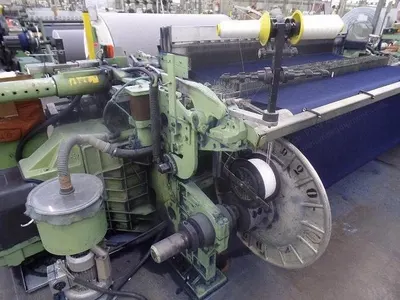

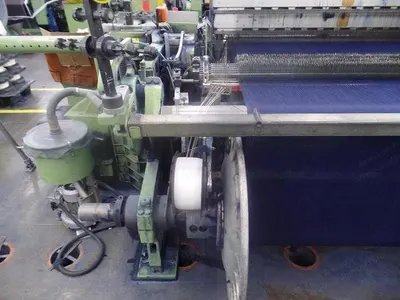

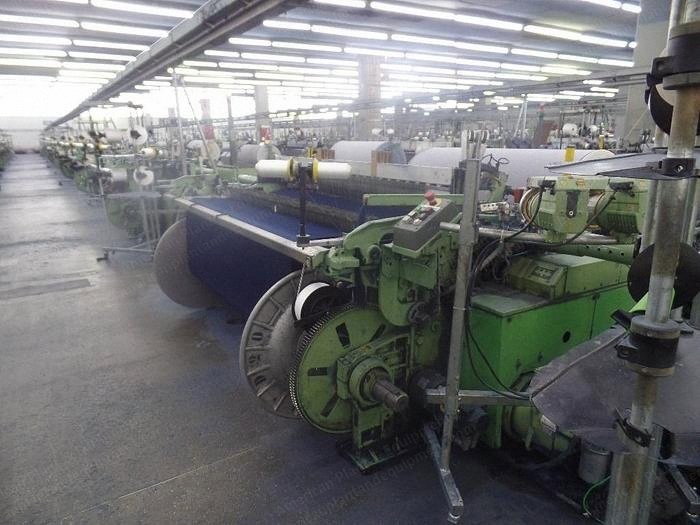

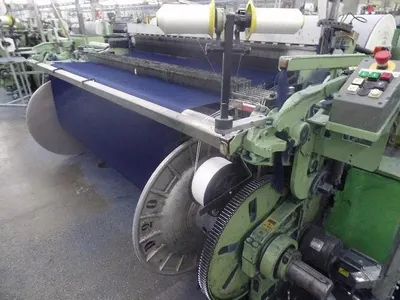

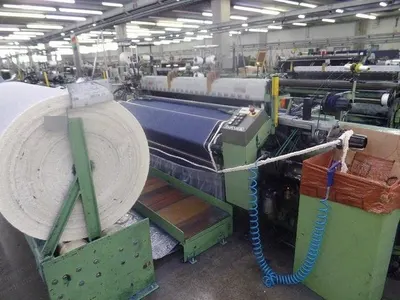

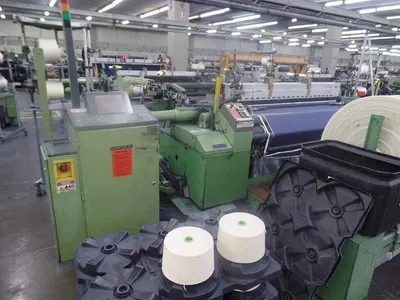

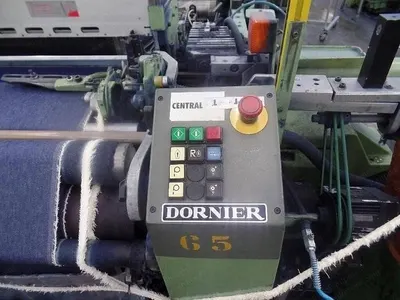

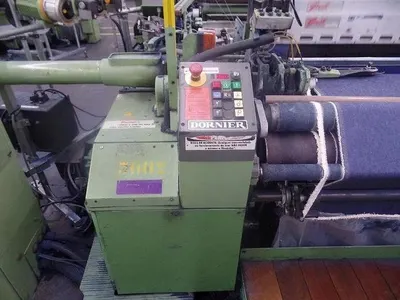

Dornier, PTV, 2001, Rapier Weaving Machine, 2100mm, Staubli Electronic Dobby 2670

Dornier, PTV, 2001, Rapier Weaving Machine, 2100mm, Staubli Electronic Dobby 2670

Description

  1. Item 001 - Dornier Ptv/2s Rapier Weaving Machine
    1. Year: 2001
    2. Width: 2100 mm
    3. Staubli electronic dobby 2670 with 10 levers
    4. Running 500 rpm
    5. Harness frame capacity: maximum 12 with 10 levers installed
    6. Harness frames installed: 6
    7. Heddles installed: approximately 4000
    8. Warp stop bars: 6 with 4000 drop wires installed
    9. Prewinders: 2
    10. Cloth roll: 1 with 500 mm diameter
    11. Warp beams: 1.5 with 800 mm flanges
    12. Prewinder switch off
  2. Item 002 - Dornier Ptv/4s Rapier Weaving Machine
    1. Year: 2001
    2. Width: 2100 mm
    3. Staubli electronic dobby 2670 with 10 levers
    4. Running 500 rpm
    5. Harness frame capacity: 20 with 10 levers installed
    6. Harness frames installed: 6
    7. Heddles installed: approximately 4000
    8. Warp stop bars: 6 with 4000 drop wires installed
    9. Prewinders: 2 installed, 4 capable
    10. Cloth roll: 1 with 500 mm diameter
    11. Warp beams: 1.5 with 800 mm flanges
    12. Prewinder switch off
