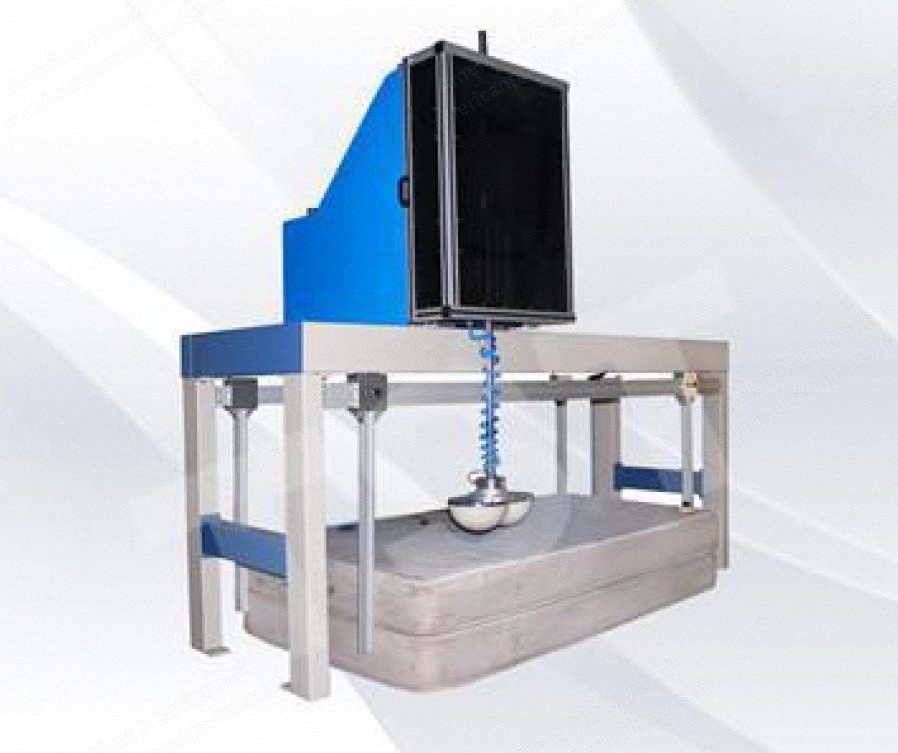

NovaStar, MC131, Mattress Endurance Testing Equipment, Cornell Type, ASTM F1566, 11.5kg Hammer (New)

NovaStar, MC131, Mattress Endurance Testing Equipment, Cornell Type, ASTM F1566, 11.5kg Hammer

Description

  1. Overview
    1. Mattress endurance testing equipment / cornell type tester
    2. For simulating the mattress’s long-term repetitive load bearing capacity and the amount of mattress compression deformation
    3. Standard: ASTM F1566
  2. Specifications
    1. Weight of hammer: 11.50 kg ± 10 g
    2. Hammer size: 355.6 mm (± 2 mm) x 215.9 mm (± 1 mm) x 101.8 mm (± 1 mm)
    3. Radius of sphere of hammer: 108 mm
    4. Width: 660.4 mm
    5. Mini capacity of load cell sensor: 2225 N
    6. Test load of hammer: 1025 ± 5 N (deflection 22 ± 2 N)
    7. Frequency: 100 ± 5 travel/min
    8. Test cycle: 0-999999 (adjustable)
    9. Control cabinet size (W x D x H): 550 x 450 x 1450 mm
    10. Main machine size (W x D x H): 2660 x 800 x 2350 mm
    11. Weight: approx. 1.2 t
    12. Power: 1 AC 220 V, 50 Hz, 5 A
  3. Included
    1. Mattress endurance testing equipment
    2. Control cabinet
    3. Printer
    4. Mattress height measuring device
    1. More information is available upon request
