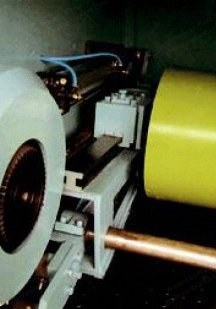

NovaStar, WS129, Working Width 1800mm, Warping Speed 100-1000m/min, 11-15kW (New)

NovaStar, WS129, Working Width 1800mm, Warping Speed 100-1000m/min, 11-15kW

Description

  1. Overview
    1. High speed direct warper with 1800mm working width (or per customer)
    2. Beam flange diameter 800mm (max) or 1000mm (to be made according to special request)
    3. Warping speed 100 to 1000 m/min
    4. Braking distance ≤ 3m at 500 m/min
    5. Moving range of reed is adjustable
    6. Length error of warp yarn ≤ 0.2%
    7. Operating display unit: 10.4” touchscreen
    8. Bobbin creel: rectangle type, V type, fixed or rotary
    9. Spindle space and spindle number: 250 x 250, 560 (basic type) or per customer
    10. Power of main motor: 11 kW, 15 kW
    11. Weight of main unit: 4000 kg
    12. Weight of bobbin creel: 2500 kg
  2. Function And Application
    1. This machine can accurately control the length and arrangement of warp yarn
    2. Suitable for the direct warping of various kinds of chopped fiber yarns
    3. It is the pre-spinning preparation equipment for various kinds of pirnless looms
  3. Key Features
    1. The beam drives directly; the stepless setting of the yarn speed is realized by the frequency conversion timing motor, and the speed is constant
    2. With the help of inclined rail linear pressure equipment, the pressure is steady and constant, so is the density of the beam winding
    3. The design of having the beam and guide roller connect together can help have higher accuracy of the length measurement
    4. The reciprocating movement of adjustable reed will be synchronized with revolving of warp beam, thus the adjustment is convenient and reliable and the winding yarns will be more uniform and flat
    5. The gas-liquid conversion clamp brake makes better braking effects for warp beams and rollers; the guide roller adopts electromagnetic brake system
    6. The interim blowing mechanism can keep clean of reed teeth and the interim time can be freely set
    7. The operation on pneumatic up and down roller and the loosening and clamping of warp beam can all be indicated by the touching screen; the operation is very convenient, safe and reliable
    8. To avoid the falling off of the beam in case of sudden power cut or gas stoppage, safety devices which can lock the poking fork of the beam when the above cases happen are provided in the machine
    9. The composite safety device integrating infrared ray and safety bar can make operation be safer
    10. The interface of computer-aided touching screen can make operation be convenient and display be clear and visual
  4. Optional And Additional Equipment
    1. Types of bobbin creel, spindle space and number are optional
    2. Various tensions, stop motions and static eliminating devices are provided
