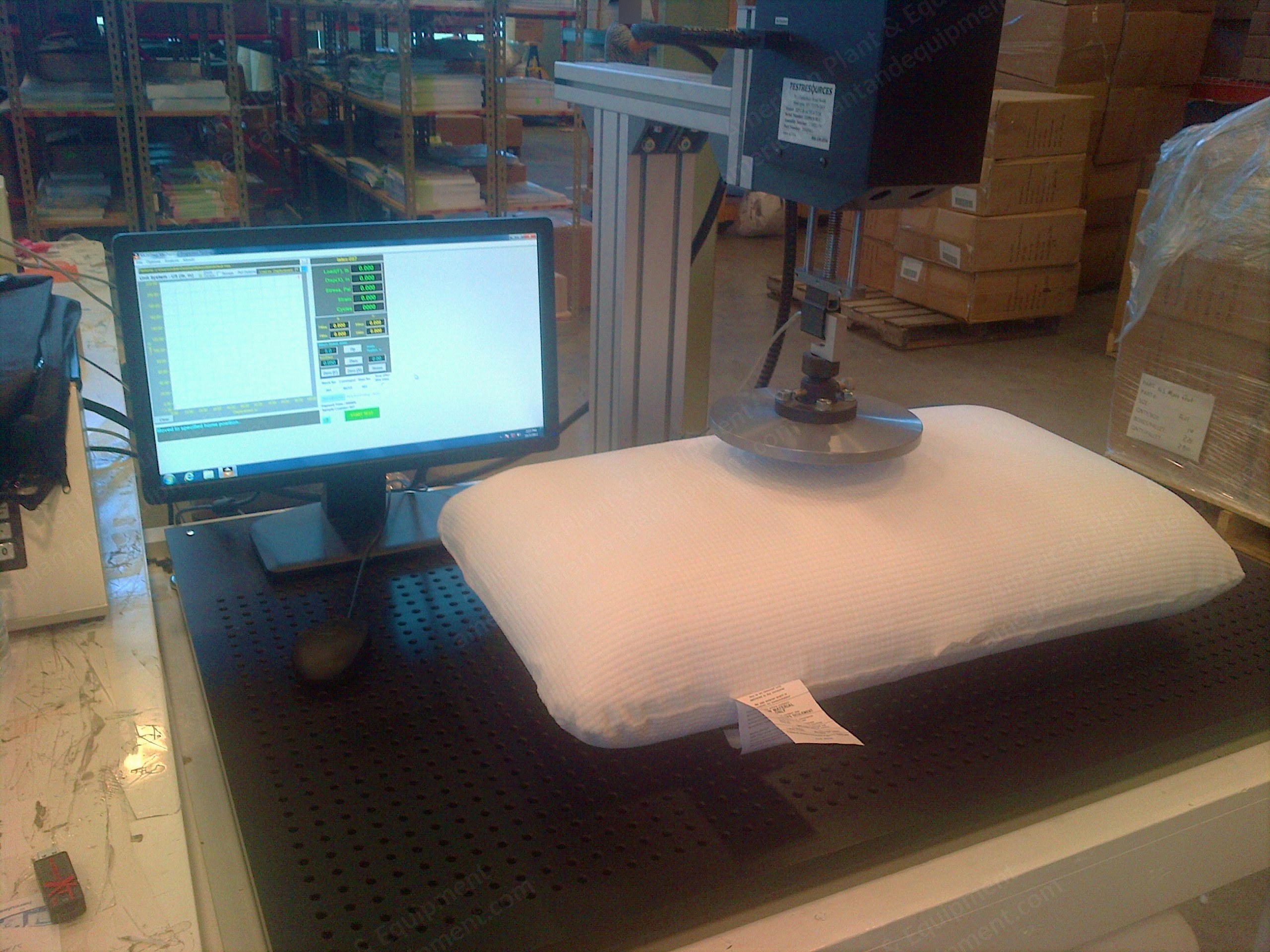

TestResources, 120Q225, Pillow Firmness ILD Tester, 1 kN Capacity, Dual Column

TestResources, 120Q225, Pillow Firmness ILD Tester, 1 kN Capacity, Dual Column

Description

  1. Overview
    1. Model 120Q225 foam compression test system (capacity 1 kN)
  2. Load Frame
    1. 120-24-36 load frame - 24" spacing - extruded columns
    2. Dual column - 24" between columns
    3. Adjustable crosshead - max height 30"
    4. 24" deep baseplate
  3. Aluminum Plate With Air Holes
    1. 185-15-15 aluminum plate with air holes
    2. 15" x 15" (380 x 380 mm)
    3. 6.5 mm holes on 20 mm centers
    4. For IFD test applications
  4. Modular Electromechanical Actuator
    1. DA250-12 modular electromechanical actuator
    2. Rating: 250 lb (1.2 kN) at 25 ipm (10.5 mm/sec)
    3. Power stroke: 12 inches (300 mm)
    4. Position resolution: 0.07 mic
    5. User settable speed: 25 to 0.001 ipm (30 mic/min)
  5. High Accuracy S Type Load Cell
    1. S250 high accuracy S type load cell
    2. Static rating: 250 lb (1.1 kN)
    3. Deflection under full load 0.006"
    4. Tension and compression
    5. Rated for 150% overload
    6. 5' cable with connector
    7. Requires 1/4"-28M
  6. Threaded Adapter
    1. G438-25 threaded adapter for TestResources grips
    2. 5/8" male clevis pin
    3. G239-8 - 8 mm loading pin, 2" (50 mm) long
    4. 1/4"-28 female thread
    5. Locking nut
  7. Compression Platen
    1. G223S-IFD spherical seat 8 inch compression platen - per ASTM D3574
    2. For compression foam testing
    3. Requires 5/8" male post
    4. Universal swivel provides +/- 3 degree angular movement
  8. Servo Controller - Load, Position
    1. A150 servo controller - load, position
    2. Position channel (encoder)
    3. Load channel (load cell)
    4. Jog up/down
    5. Emergency stop button
    6. LCD display
    7. USB port compatibility
  9. Servo Controller
    1. QS servo controller
    2. P-I-D servotuning controls actuator speed and loading rate - CRE and CLM modes
    3. 2 segment control mode - stress relaxation and creep tests possible
    4. Load or position end point cycling with sawtooth waveform
    5. Setup and store 6 different test setups; supervisor passcode
    6. Displays live load, position, and rate and post test results of selected analyses
    7. Captures test data into controller buffer
    8. Captures 15,000 load, position and time data (stores one test - export after each test)
    9. Adjust data rate from 0.25 to 1000 samples/sec
    10. Calculates following values and makes available for display and reports: tensile strength (psi or MPa), elongation % at break, displacement at break, load at displacement, displacement at load, stiffness, free height, peak stress and load, minimum load, average load/displacement, other
    11. Exporting data to PC via optional XY series software products
  10. Xyplot Software
    1. XyPlot software
    2. Transfers captured and stored binary test data and converts it to ASCII for use by PC programs (e.g. Excel)
    3. Compatible with A150 controllers
    4. Opens and saves data with new file name on each event
    5. CD and cable (USB)
    6. Requires PC
    7. Exports raw load-displacement-strain data, test methods, calibration information, test results
    8. Converts data and results to ASCII delimited format for import to programs
    9. Views and prints up to ten plots on the same set of graph axis
    10. Reports calculated test results, date, ID# and single tests with curve
  11. Options
    1. Computer
    2. Processor (2.2 GHz min)
    3. Windows XP Professional (or later)
    4. 3 GB RAM minimum
    5. 160 GB HD minimum
    6. Integrated video card
    7. 17" flat panel monitor minimum
    8. Integrated networking card
    9. Keyboard and mouse
    10. Installation, startup, setup and checkout service included
    11. Detailed specs may change based on latest Dell offerings
