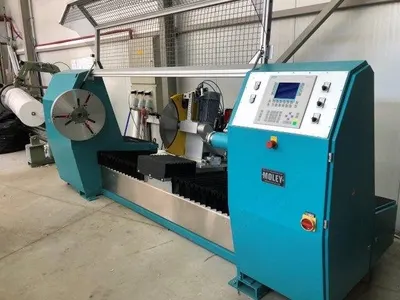

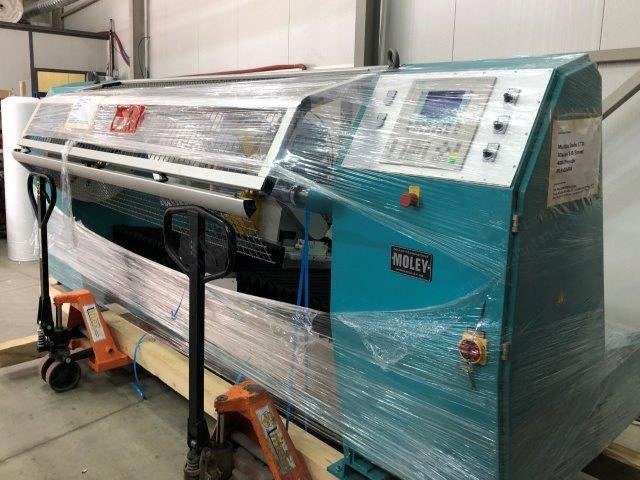

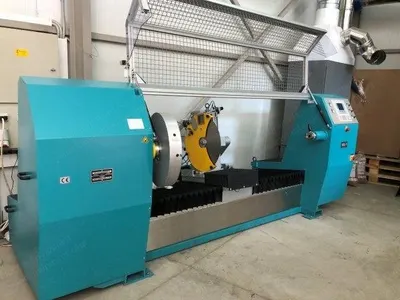

Moley, Lin KRM, 2020, 1600mm Working Width, 550mm Knife Diameter

Moley, Lin KRM, 2020, 1600mm Working Width, 550mm Knife Diameter

Description

  1. Overview
    1. Working width (material roll width) max: 1600mm
    2. Roll diameter (max.): 500mm
    3. Cardboard core inside diameter: ⌀50/76mm
    4. Circular knife diameter: ⌀450/550mm
    5. Cutting width/s: adjustable
    6. Roll weight (max.): 150kg
  2. Machine Body
    1. Solid, modern construction, two high-density aluminium side-plates connected by steel bars, solid cutting head inclined, mounted on sledge carriage, sliding on precision ball bearing
    2. Paint: RAL 5018 (turquoise)
    3. Electrics according to Euronorm EN60204/1, PLC (Siemens S7)
    4. Operating voltage: 3-PE - 400V - 50Hz - compressed air required: ca. 6 bar
    5. Construction/execution according to European Standard "CE"
  3. Roll-Shaft Reception/Clamping Device
    1. Left: Face-plate ZVA mounted on swivel main-bearing with pneumatic locking, faceplate with centralised adjustment of outside clamping jaws
    2. Inside clamping (cardboard core) via three-jaws chuck
    3. Right: manually actuated pinhole lock with guide-way for shaft end for easy insertion
  4. Roll Shaft
    1. 1 rigid shaft (hollow) with PVC cover for cardboard core inside ⌀50mm or ⌀76mm (both available), nominal length 1600mm, max. permissible charge ca. 150kg
  5. Roll Rotation
    1. Polyphase gear motor with frequency converter (continuous time and speed variation by poti, integrated slow-acceleration and rapid slow-down to stop devices), with speed indication, right/left inversion of roll shaft, motor power 3.0kW - speed range: ca. 10-300 min
  6. Circular Knife Cutting Head KRM D550 with Automatic Grinder Type A
    1. Combined grinding and honing device - for small reels and boarder cuts
    2. Adjustment of angular position of cutting head, i.e. possibility to cut also larger width without change of cutting knife
    3. Grinder set-off manually or via electronic timer (=grinding after each cut or after selected number of cuts), grinding bevel adjustable by 50mm, grinding depth and grinding angle adjustable, high quality (diamond) grinding disc, for blade diameter 450-550mm (grinder range)
    4. Knife rotation via polyphase gear motor with frequency converter (continuous time and speed variation by poti, integrated slow-acceleration and rapid slow-down to stop devices for knife blade), motor power: 4.0 kW for KRM speed ca. 30-600 min
  7. Cutting Tool
    1. 1 circular knife blade KRM Type 3A D550
    2. 1 circular knife blade KRM Type 2A D450
    3. 1 sharpening stone
  8. Cooling
    1. Air cooling and liquid cooling lubricating device (water) with adjustable vaporizer head, comfortably switched on/off on MMI keyboard
  9. Cutting Head Device
    1. Lead screw advance (right-left): brake-gear motor with frequency convector and ball-bearing assy in connection with high resolution impulse generator for positioning precision 0.1mm
    2. High-dynamic drive with automatic speed adjustment (fast-slow speed) according to cutting width and rapid return travel for maximum productivity
  10. Operating Terminal HMI
    1. Computer controlled command and display terminal (HMI) which acts as an interface between operator and machine. Relevant parameters are set comfortably on tactile keyboard
    2. Cutting width/s and number of pieces are entered and shown on a large easy-to-read display which also provides user guidance and information throughout the operation of the machine. Speeds for roll rotation, blade rotation and cutting advance are easily adjustable at any time
  11. Additional Roll Shaft
    1. 1 rigid shaft (hollow) with PVC cover for cardboard core inside ⌀76mm, nominal length 1600mm
