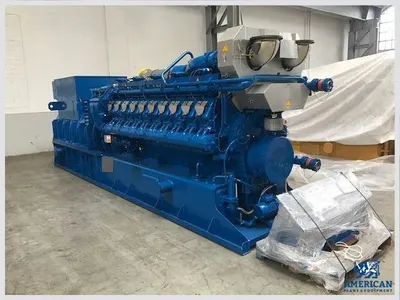

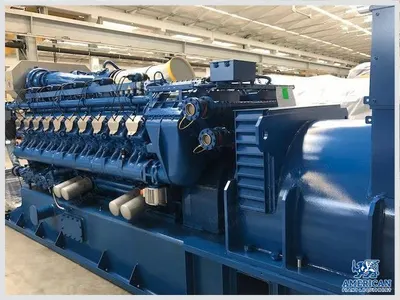

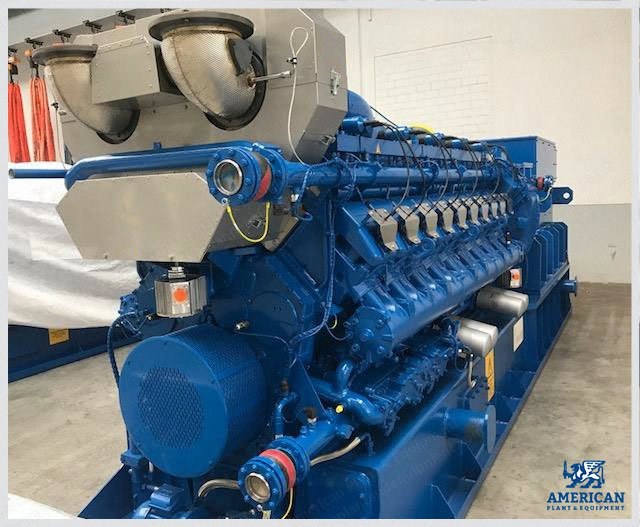

MWM, TCG2020V20, 2018, 2000 kW, 11 kV, 1500 RPM, with WHRBs

MWM, TCG2020V20, 2018, 2000 kW, 11 kV, 1500 RPM, with WHRBs

Description

  1. Overview
    1. Sparingly used gas engine generator sets
    2. 2000 kW MWM
    3. Quantity: 2 sets
  2. Engine Specifications
    1. Engine: TCG2020V20
    2. Year: 2018
    3. Speed: 1500 rpm
    4. Number of cylinders: V/20
    5. Bore/stroke: 170/195/89
    6. Ratio: 13.5
    7. Piston speed: 9.8
    8. Lube oil consumption at full load: 0.2
    9. Engine management system: TEM EVO
  3. Generator Specifications
    1. Make: Marelli Motori
    2. Type: MJH 630 LA4
    3. Power: 2500 kVA
    4. Voltage: 11000 V
    5. Current: 137/131 amp
    6. Connection: Y
    7. Power factor: 0.8
    8. Speed: 1500 rpm
    9. Frequency: 50 Hz
    10. Voltage excitation: 22 volt
    11. Amperage excitation: 5.8
    12. Insulation class: I
    13. IP rating: 23
    14. Duty: S1
    15. Temperature: 45°
    16. Rotation direction: C.W
  4. Condition
    1. The generator sets are in excellent condition and are unused with zero running hours
