Roller width 2,200 mm, for a max. fabric width: 2,000 mm
Second hand 02 rollers impregnation padder, year of construction 1998, brand Beta (x1)
Optical weft straightener made by Mahlo, type FMC 10, year of construction 1998 (x1)
Brückner vertical return pin chain including 01 anti-depinning device each link; the left and the right chain are driven by means of 01 electrical motor frequency converter controlled (x1)
Left and right overfeeding device at the entrance; each overfeeding device is controlled by means of frequency converter (x1)

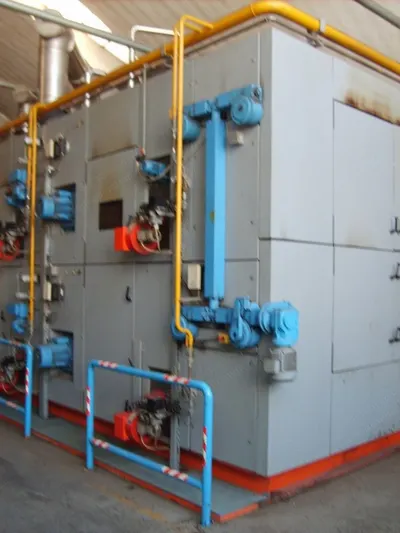

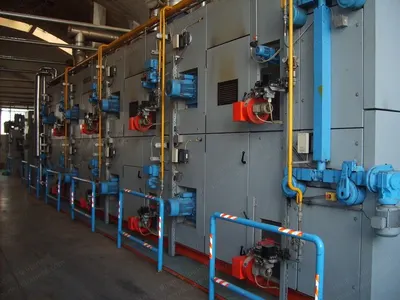

Dryer consisting of 08 compartments (3 meter each one), counter flow system with dumper and safety bypass to avoid bottom mark (x1)
Heating system of the dryer by means of 16 natural gas burners exchangers (x1)
Air circulation fans each compartment with the motor of ventilator at 02 speed, so total are 16 (x2)
Plaiter and winder for batch trolley at the exit (x1)
Exhaust fans motor at 02 speed (x2)
Fabric Entry Assembly
Frame with relevant device suitable to take over the fabric from trolley or big roll
System in combination including: expanding double spreader roller
01 centering cylinder type Dogal and relevant sensor (x1)
Control System
Permaset auto-pilot control made by Mahlo for an automatic thermo-fixation of the fabric
Probes made by Mahlo installed inside the dryer
