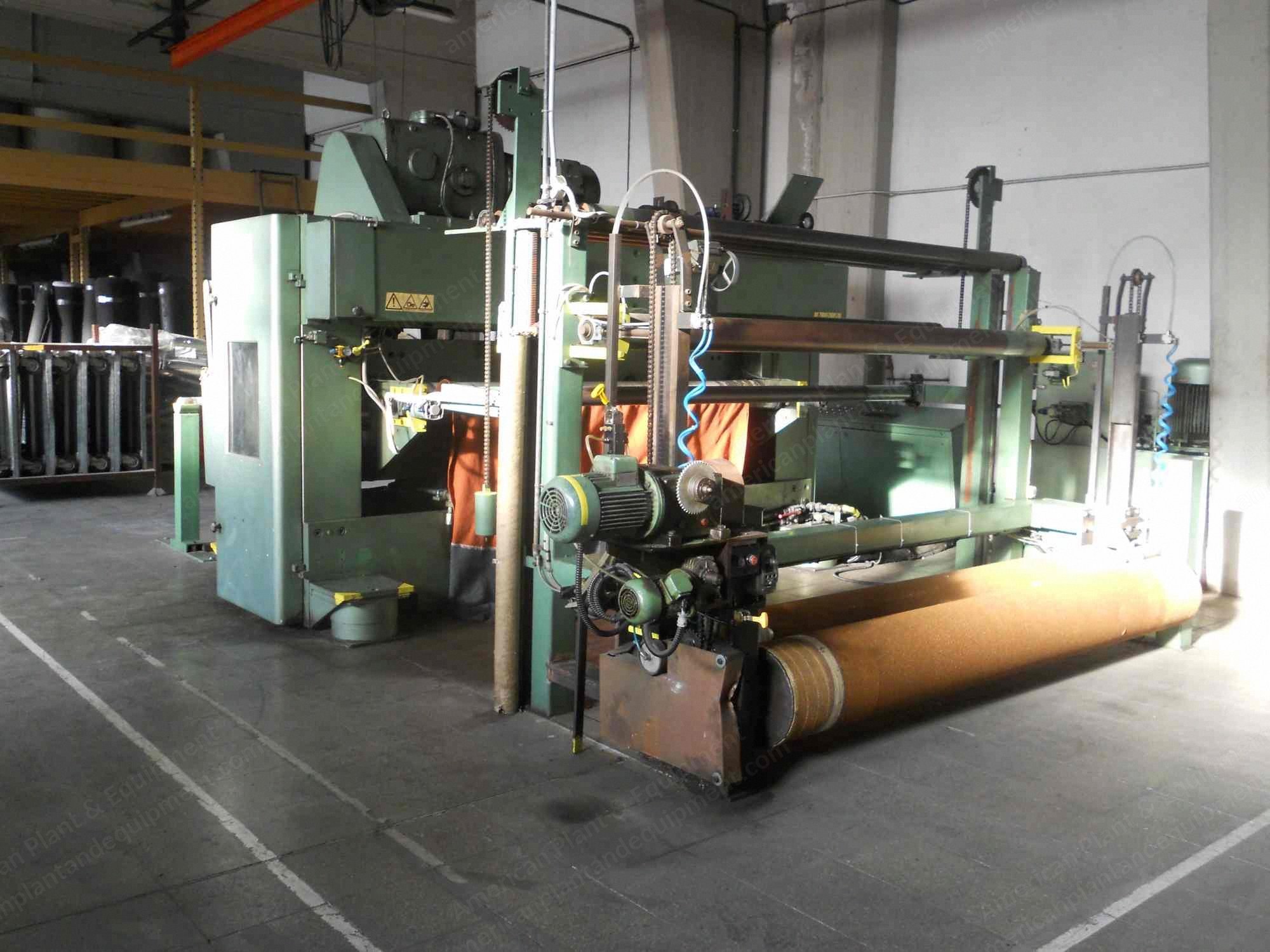

Dilo, Di-Loop SD25, Needle Loom, Working Width 2500mm, Gauge 4.7mm

Dilo, Di-Loop SD25, Needle Loom, Working Width 2500mm, Gauge 4.7mm

Description

  1. Overview
    1. Working width: 2500 mm
    2. Gauge: 4.7 mm
    3. 47,000 needles per linear meter
    4. Entry prepared for 2 rolls
    5. Exit: storage and roller-up
  2. Needle Boards
    1. 2 new needle boards
    2. 6 needle boards, 4 are complete with needles
    3. 4 needle boards without holes
  3. Stripper Plate
    1. 1 stripper plate with 36 rows = 7700 holes per linear meter – currently installed on the machine
  4. Hydraulic and Drive Components
    1. 1 hydraulic unit with 22 kW motor
    2. 1 motor 22 kW
    3. 1 spare motor 22 kW
    4. 1 PIV variator
    5. 1 spare PIV variator
  5. Electrical
    1. Electric control board
