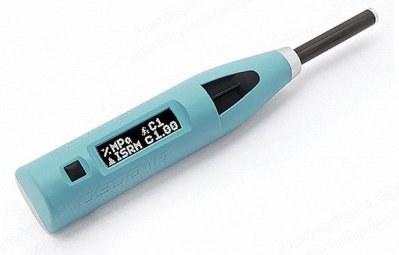

Proceq, PaperSchmidt 3421-0000, Rebound Test Hammer, Paper Roll Hardness Tester (New)

Proceq, PaperSchmidt 3421-0000, Rebound Test Hammer, Paper Roll Hardness Tester

Description

  1. Overview
    1. Designed specifically for paper roll hardness testing.
    2. Irregular rolls, corrugations and telescoping are caused by non-uniform paper roll hardness.
    3. A reliable measurement of the roll hardness profile is important when deciding whether a roll is good or bad.
    4. Production staff require quick, reliable testing and to interpret the results as efficiently as possible.
    5. It has an extended lifetime to cope with the heavy demands of the paper industry and dedicated tools, such as pre-defined tolerances that make assessing a profile a simple matter.
    6. Applications: paper rolls, film rolls, foil rolls.
    7. Benefits: accurate profiling, durability, easy use.

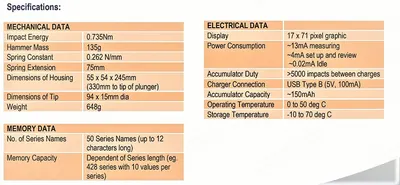

  2. Specifications
    1. Impact energy: 0.735 Nm.
    2. Standards: TAPPI T 834 om-07 (2007).
  3. Features
    1. Sensitivity and repeatability to a degree unmatched by conventional roll testers. Dedicated firmware allows instant analysis of the data on the instrument’s display.
    2. A vastly improved service lifetime compared with traditional instruments.
    3. Intuitive operator interface (displaying hardness, profiles, limits, roll IDs, etc.).
    4. Automatic reloading and automatic data storage allows the fastest possible test performance.
    5. Windows based Paperlink software makes it possible to download, present and edit data measured by the Paperschmidt in a fast and easy way using a PC. This allows the user to quickly check the roll profile against user defined tolerances. It also allows the user to define roll identifier names for batch testing and download these onto the hammer. All data can be exported to third party applications.
  4. Included
    1. Paperschmidt test hammer.
    2. Battery charger with USB cable.
    3. Carry strap.
    4. Carrying bag.
    5. Documentation.
