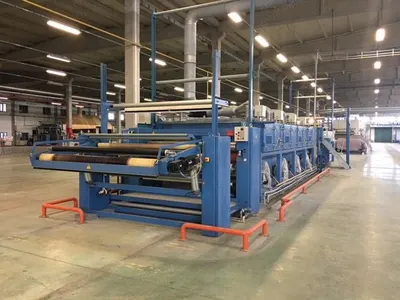

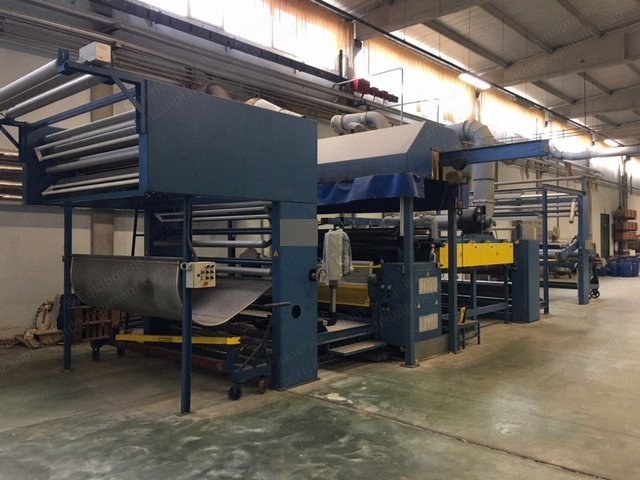

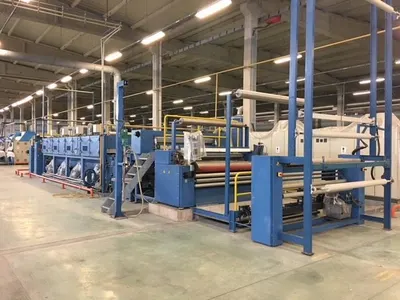

Cavitec, Powder Dot Coating Range, 1998, 2200mm Working Width, 2400mm Roller Width, 40 m/min

Cavitec, Powder Dot Coating Range, 1998, 2200mm Working Width, 2400mm Roller Width, 40 m/min

Description

  1. Overview
    1. Year 1998, ran 1000 hours
    2. Located in warehouse now
  2. Specifications
    1. Working width: 2200 mm
    2. Roller width: 2400 mm
    3. Regulations sev. 1000
    4. Installed electrical power: 195 kW
    5. Maximum speed: 40 meters per minute
    6. 4 compartments
    7. Sinter channel length: 3 meters
    8. Sinter channel heating: IR electrical 60 kW
    9. Direct natural gas heated approximately 120 kW
  3. Heating System
    1. Hot oil and resistant heated
    2. Heater and pattern cylinder oil heated
    3. Dryer resistant heated
    4. Including roller heating system, thermal oil 4 circuits generator
    5. Thermal oil generator, water cooling unit and additional engraved rollers
    6. Landyis and gyr burners
  4. Additional Equipment
    1. With Fimat cylinder washing unit
    2. Smooth and cooling calender
    3. Control and process data control
    4. Powder vacuum machine
