PP spunbond line (SS – 2 beams) with maximum spin pump of 82 rpm for each beam and approximately a total throughput of 1100 kg/hr
Max line speed is 320 meters/minute with basis weights from 10 to 80 gsm
Main Components

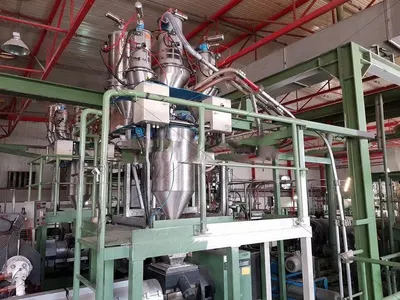

2 gravimetric dosing systems

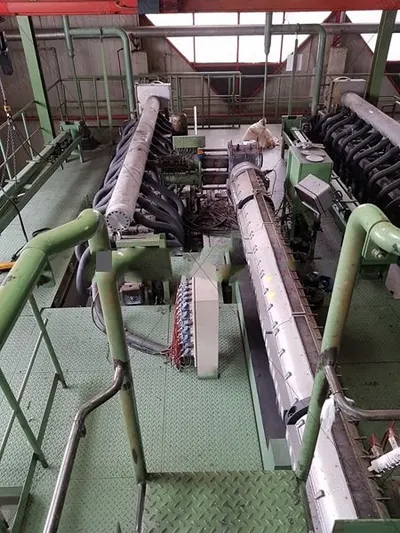

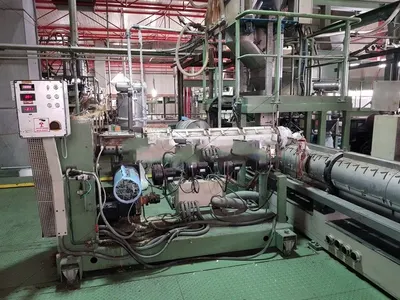

2 Reifenhauser RT 1651 single screw extruders, screen changer, melt pump, slot die with die pack (spinnerets)
2 recycling extruders – average consumption of 80 kg/hr

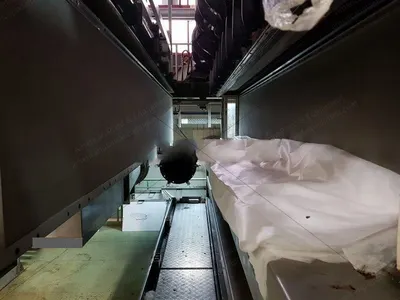

2 Reifenhauser monomer extractors, quench chambers, stretching channels, process air and diffusers

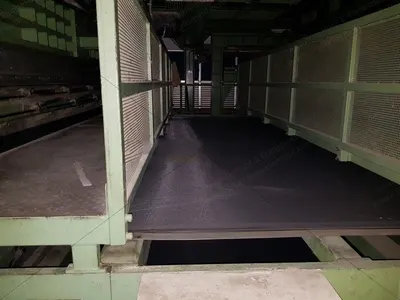

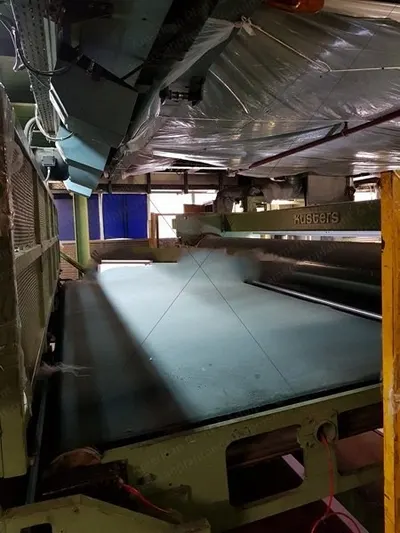

1 Albany Cofpa lay down belt
2 air suction systems

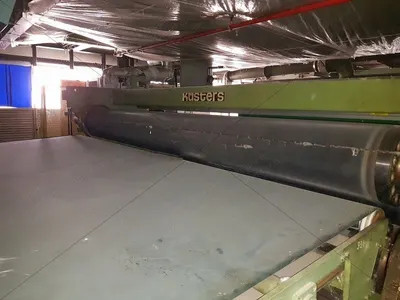

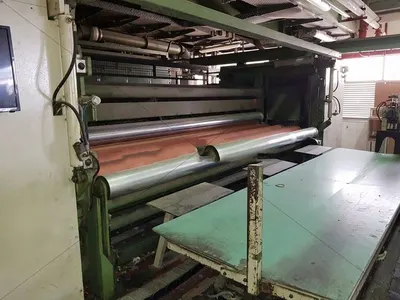

1 Kusters thermobonding calender, 2 cylinders – one engraved (16% diamond) and s-roll
1 surfactant application system and IR dryer

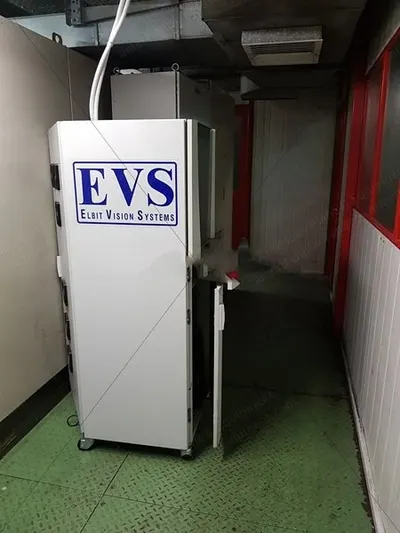

1 Elbit vision systems inspection real time camera vision system

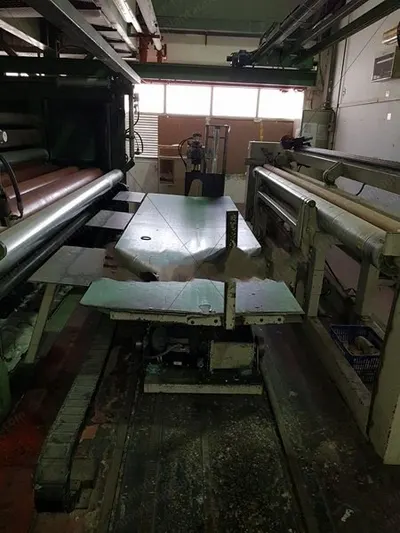

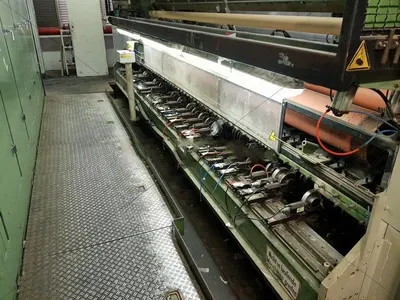

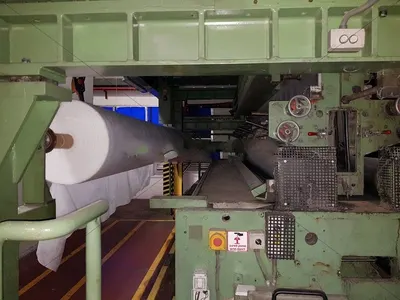

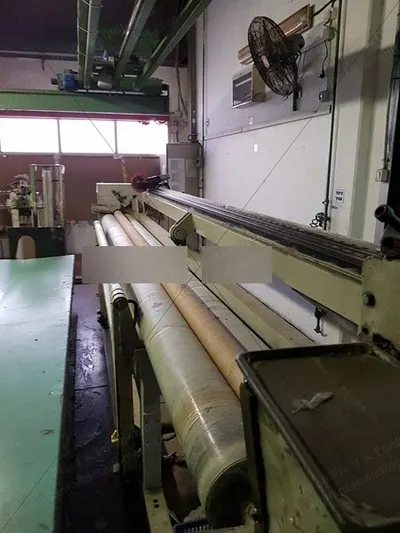

1 Edelmann slitting, winding and cutting unit, shaft pulled and automatic core cutter, upgraded with Siemens S7 control system
Support Systems

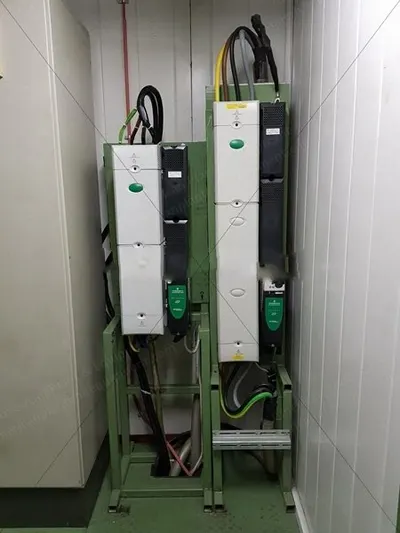

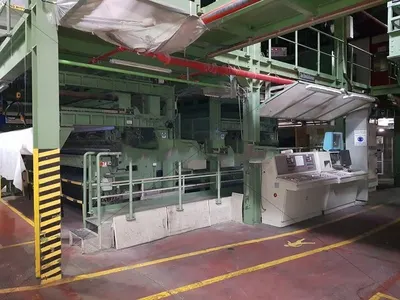

Complete with all electrical cabinets and operational panels

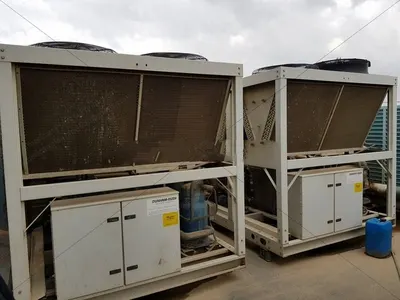

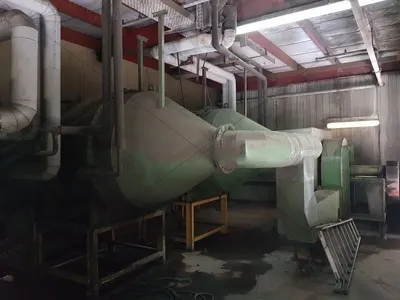

Airflow system (air heat exchangers) for process air and chillers

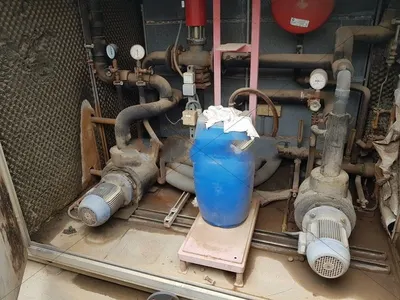

Uses approximately 2 cubic meters of water in a closed loop system for heat exchangers and cooling different areas of the line; a small amount is lost each day to evaporation
Uses approximately 1500 kW/hr
