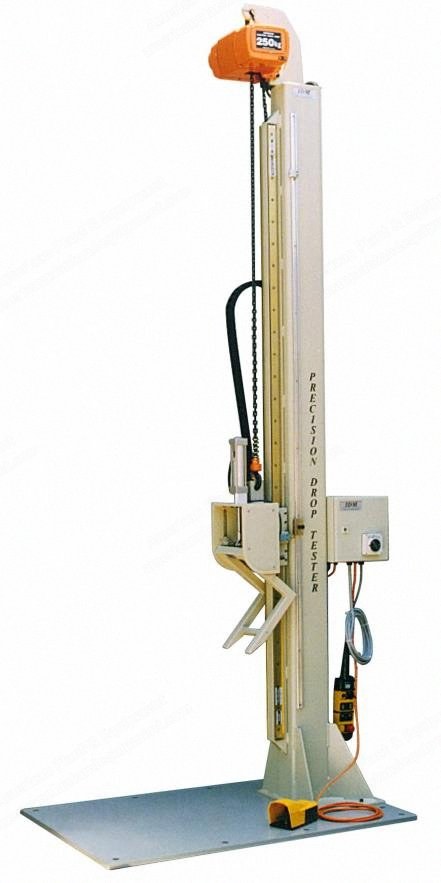

IDM, P0007, Precision Drop Tester, 75kg Capacity, 2.5m Max Drop Height (New)

IDM, P0007, Precision Drop Tester, 75kg Capacity, 2.5m Max Drop Height

Description

  1. Applications
    1. Cardboard boxes
    2. Pails
    3. Bags
    4. Containers
    5. Crates
  2. Features
    1. Adjustable minimum and maximum height for loading and dropping, via a chain hoist for positioning
    2. Large steel base for test surface and mounting: 1 m x 1.5 m x 25 mm
    3. A hand-held control and foot switch are provided
    4. Precise drop orientations
    5. Package width and height dimensions are not restricted
    6. Lifting apparatus: electric chain hoist
    7. Drop forks: 300 mm d x 278 mm w (for packages up to 550 mm d; anything above this would require a top support fixture)
  3. Standards
    1. AS 2582.4
    2. ISO 2248 method a
    3. ASTM D5276
    4. ISTA
  4. Specifications
    1. Model: P0007
    2. Max drop height: 2.5 m
    3. Lifting capacity: 75 kg
    4. Connections: air supply 80 psi, electrical 415 vac @ 50/60 hz, 3 phase
    5. Dimensions: h: 3450 x w: 1000 x d: 1500 mm
    6. Weight: 540 kg
  5. Options
    1. Corner drop
    2. Set of jigs (10 degree base and lid drop) for pails
    3. Custom made base plate
    4. Extended arm to support large packages
    5. Different fork lengths
    6. Top support fixture
  6. Working Environment
    1. Operating temperature: -10 °c to 55 °c (no condensation or icing)
    2. Operating humidity: 25% to 65%
    3. Storage temperature: -25 °c to 65 °c (no condensation or icing)
