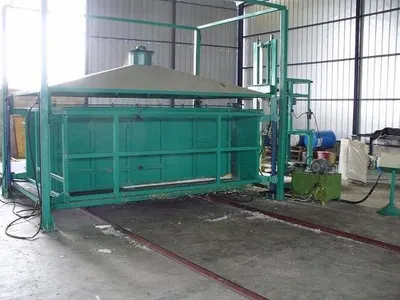

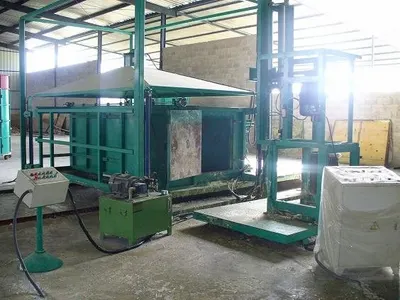

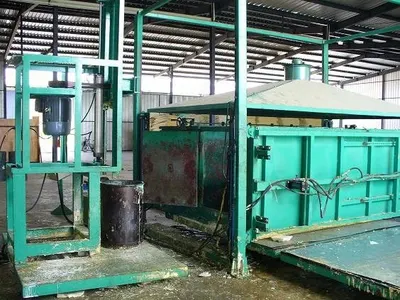

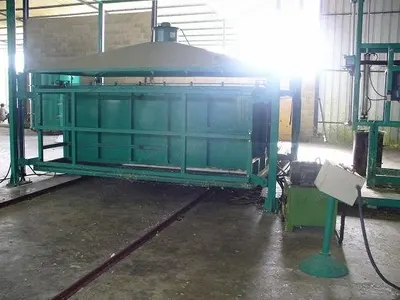

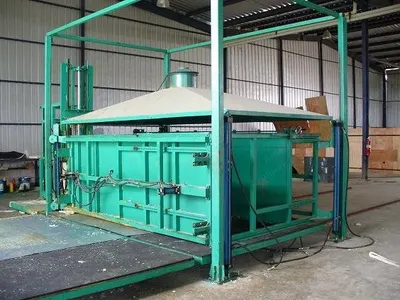

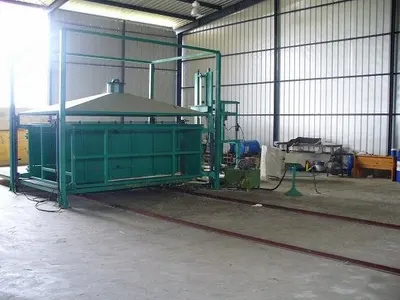

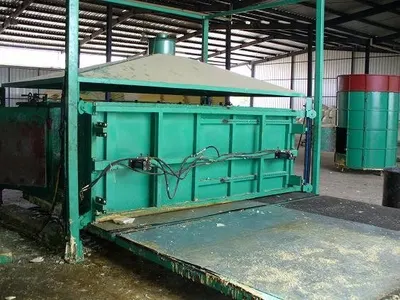

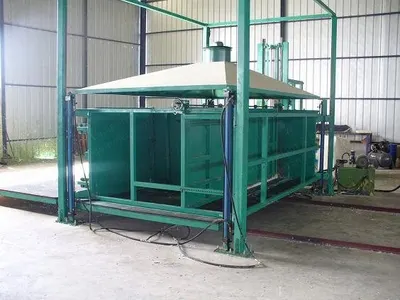

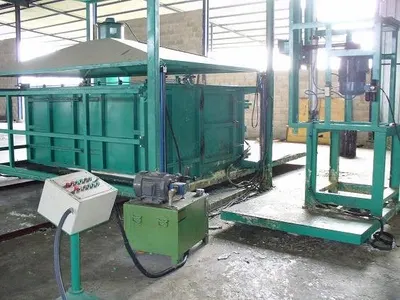

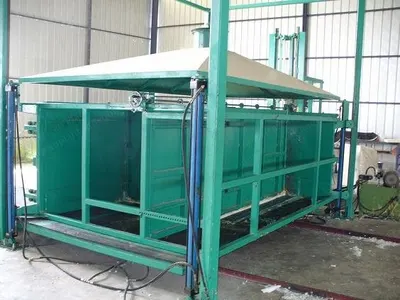

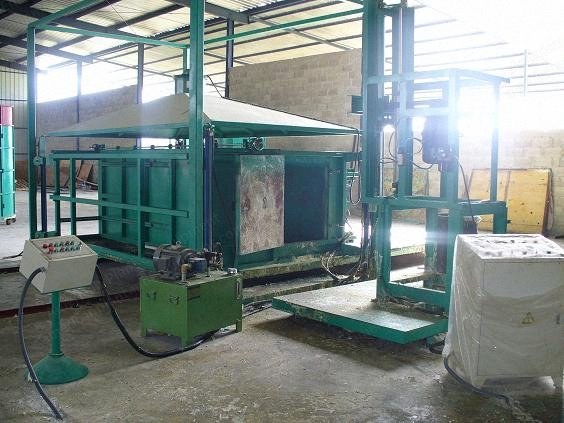

NovaStar, FG139, Automatic Hydraulic Square Foaming Mould, 2100x2100x1200mm Foaming Size, 5.5kW Oil Box Power (New)

NovaStar, FG139, Automatic Hydraulic Square Foaming Mould, 2100x2100x1200mm Foaming Size, 5.5kW Oil Box Power

Description

  1. Overview
    1. Foaming length: 2000 to 2100 mm
    2. Foaming width: 1500 to 2100 mm
    3. Foaming height: 1200 mm
    4. Machine external dimensions: (L) 4000 mm x (W) 2900 mm x (H) 3500 mm
    5. Construction time: 45 workdays
  2. Specifications
    1. Oil cylinder size: Ø 63 x (L) 1500 mm, 4 pieces (for lifting)
    2. Oil cylinder size: Ø 63 x (L) 100 mm, 2 pieces (for release)
    3. Oil box power: 5.5 kW
    4. Exhaust fan power: 1.5 kW, 1 piece
    5. Base board size: (L) 3700 x (W) 2768 mm, 2 pieces
    6. Length of rail: 12 meters each side
  3. Included
    1. Spare parts: 1 set of maintenance tools
    2. Guarantee: CE certificate, one year guarantee
