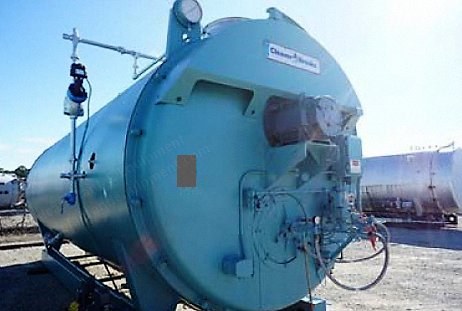

Cleaver-Brooks, 800 HP, Steam Boiler

Cleaver-Brooks, 800 HP, Steam Boiler

Description

  1. Overview
    1. 800 hp output: 27,600 pph
    2. Design: 4-pass dryback
    3. Model: CB-200-800
    4. Year: 1985
    5. Fuel: natural gas
    6. Burner: CB integral
    7. With low NOx conversion (30 ppm)
  2. Specifications
    1. MAWP: 150 psi steam
    2. Length: 317 inches
    3. Width: 123 inches
    4. Height: 126 inches
    5. Weight: 54,100 lbs
    6. Gas (cfh): 33,480 maximum
    7. Oil (gph): N/A
  3. Refurbishment Details
    1. Each component tested electronically and mechanically, then the entire system is tested as a whole.
    2. A hydro test is performed to determine if retubing is needed.
    3. Individual tubes will be replaced if retubing is necessary, unless there is a fair amount of oxygen pitting throughout the unit, in which case all tubes will be replaced.
    4. Any defective or concerning items will be replaced or repaired as needed.
    5. The skin will be completely replaced and the boiler will be painted prior to shipment.
    6. Burners will be refurbished and if needed completely replaced.
  4. Warranty
    1. 1 year parts warranty plan included.
    1. More information is available upon request.
