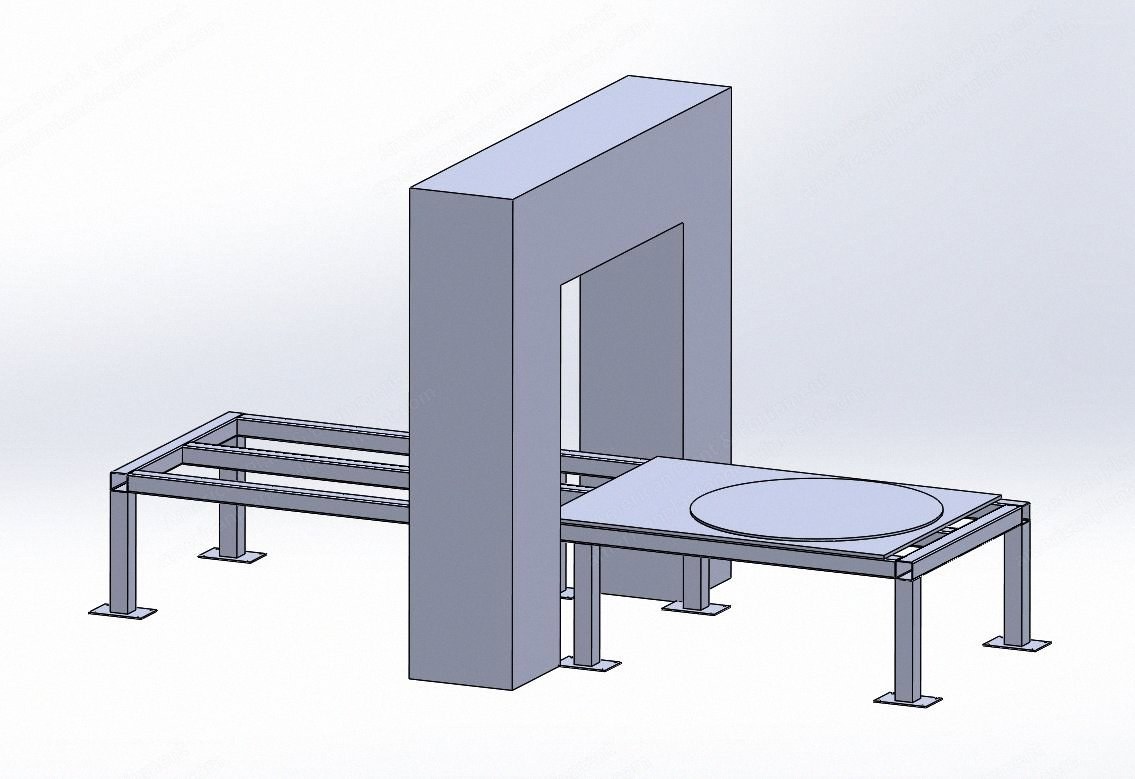

NovaStar, FN223, CNC Fast Wire Horizontal Foam Cutting Machine, 3000x2200x1300mm, Turntable, 10.2 kW (New)

NovaStar, FN223, CNC Fast Wire Horizontal Foam Cutting Machine, 3000x2200x1300mm, Turntable, 10.2 kW

Description

  1. Overview
    1. Maximum processing length: 3000 mm
    2. Maximum processing width: 2200 mm
    3. Maximum processing height: 1300 mm
    4. Equipped with a turn table
    5. Beam height: 54” height bun with crown
    6. Working table: flat type 3000 mm long with turntable (rotating turntable at one end)
    7. Control unit: industrial computer
    8. Computer operating system: Windows 7
    9. Software: Profiler
    10. Acceptable file formats: CAD / DXF / DSW
  2. Wire Information and Wire Drive
    1. Number of cutting wires: one
    2. Cutting wire length: to be confirmed
    3. Cutting wire diameter: 1.3 to 1.8 mm
    4. Drive wheel diameter: 300 mm
    5. Drive wheel running speed: 2860 rpm (2826 meters/minute)
  3. Electricals
    1. Main motor – wire drive – AC: Siemens, 3.7 kW
    2. Inverter: Panasonic
    3. Main table stepper motor (backward and forwards): 1 kW
    4. Vertical lift stepper motor for wire system: 1 kW
    5. Turn table stepper motor: 1.5 kW
    6. Cutting speed: 0 to 10 meters/minute (fast wire)
    7. Precision: +/- 0.5 mm
    8. Voltage: 220 volts @ 60 Hz, 3 phase (or as per client’s request)
    9. Cabinet: low profile desk type
    10. Total power: 10.2 kW
  4. Weight and Dimensions
    1. Gross weight: 2500 kg
    2. Overall dimension: 6800 x 4148 x 2450 mm (to be confirmed)
  5. Spares
    1. Cutting wires: 20 pieces
  6. Dust Suction System
    1. Suction unit
    2. Dust collection
    3. Suction motor: 3 kW
  7. Remote Monitoring
    1. Modem
    2. Self-diagnostics system
  8. Miscellaneous
    1. Compressed air: 6 bar
    2. See Excel list of electrical parts
    3. See Excel list of bearings
  9. Manuals and Books
    1. Operations manual
    2. Assembly manual
    3. Spare parts manual
    4. Maintenance manual
