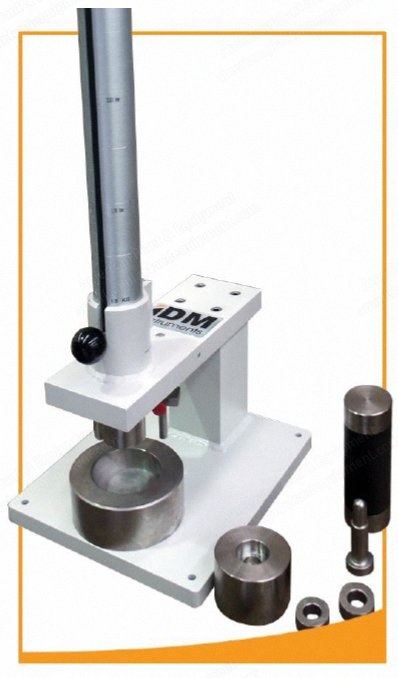

IDM Instruments, G0001-M1, Gardner Type Impact Tester, 1.0m Drop Tube, 23kg (New)

Description

Overview
1. For ranking materials according to the energy required to break flat, rigid plastic specimens, under various specified conditions of impact of a striker, impacted by a falling weight.
2. Application: impact properties of plastic materials.
Features
1. Bench mounted operation.
2. Heavy duty base to withstand the impact shock.
3. Steel rod impact mass.
4. Specimen support plate.
5. Hardened steel striker with a rounded nose.
6. Weights: 0.9 kg (2 lb), 1.8 kg (4 lb) and 3.6 kg (8 lb).
7. Slotted guide tube (1.0 m / 40” in length), in which the impact mass slides.
8. Bracket holds the tube in a vertical position by attaching it to the base.
9. Bracket holds the pivot arm alignment for the striker, about 50 mm / 2” under the tube.
10. For geometries ga, gb and gc, a specimen of 15.86 mm +/- 0.1 mm (0.625” +/- 0.004”).
11. With geometries ga and gd, a specimen support plate with a hole 76 mm +/- 3.0 mm (3.0” +/- 0.12”) in diameter is mounted in the apparatus.
Standards
1. ASTM D5420, ASTM D5628, ASTM D3763, ASTM D4226, ISO 6603-1: 1985.
Options
1. Weights.
2. Striker.
3. Drop tubes.
Specifications
1. Dimensions: 1,400 mm height x 300 mm width x 400 mm depth.
2. Weight: 23 kg.
3. Packaged dimensions: 50L x 50W x 160H cm

Capacity	1.0m drop height
Included Weights	['0.9kg (2 LB)', '1.8kg (4 LB)', '3.6kg (8 LB)']
